Tecna Spot Welder 16kVA

The Tecna 16kVA Spot Welder is a versatile foot operated spot welder featuring a rocker-arm design. Built for precision and efficiency in low- to medium-production welding environments, it combines robust engineering with ergonomic usability.

Key Features

• Adjustable Rocker-Arm & Foot Pedal
  The arm length and foot pedal length are user-adjustable, enabling greater flexibility in handling components of varying sizes.

• Water-Cooled Design & Durable Build
  Transformer, arm, and electrode assemblies benefit from water cooling to maintain performance under sustained operations. The transformer is epoxy resin coated for enhanced operation.

• Heavy-Duty Chrome-Copper Electrode Holders
  Designed for longevity, these holders support both straight and angled electrode configurations.

• Adjustable Electrode Stroke & Throat Depth
  Stroke length and throat depth can be tailored to accommodate a wide range of part geometries.

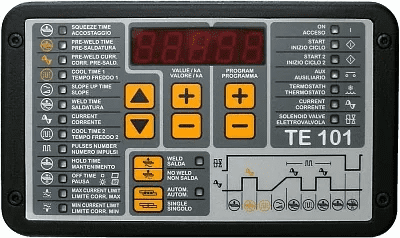

• TE101 Microprocessor Control Unit
  Offers advanced control and programmability:

  • Phase-shift thyristor drive for precise current regulation

  • Built-in ammeter with selectable ranges (e.g., 1856 kA)

  • Memory for up to 99 welding programs and external program selection

  • Features like pre-weld, slope, pulse functions, weld/no-weld modes, current compensation, error signalling, and automation outputs.

• Microswitch-Controlled Welding Cycle
  Electrode force is adjustable; the welding cycle initiates automatically once the pre-set force is achieved.

Water cooled electrode holders 19mm diameter. Water cooler not included.

(Which model should I purchase for my application? - Why not send us a sample, we will weld the sample and recommend the correct machine.)
Click here for consumables

 Call for a great deal ! 02392 295612

Technical Data
