- Description

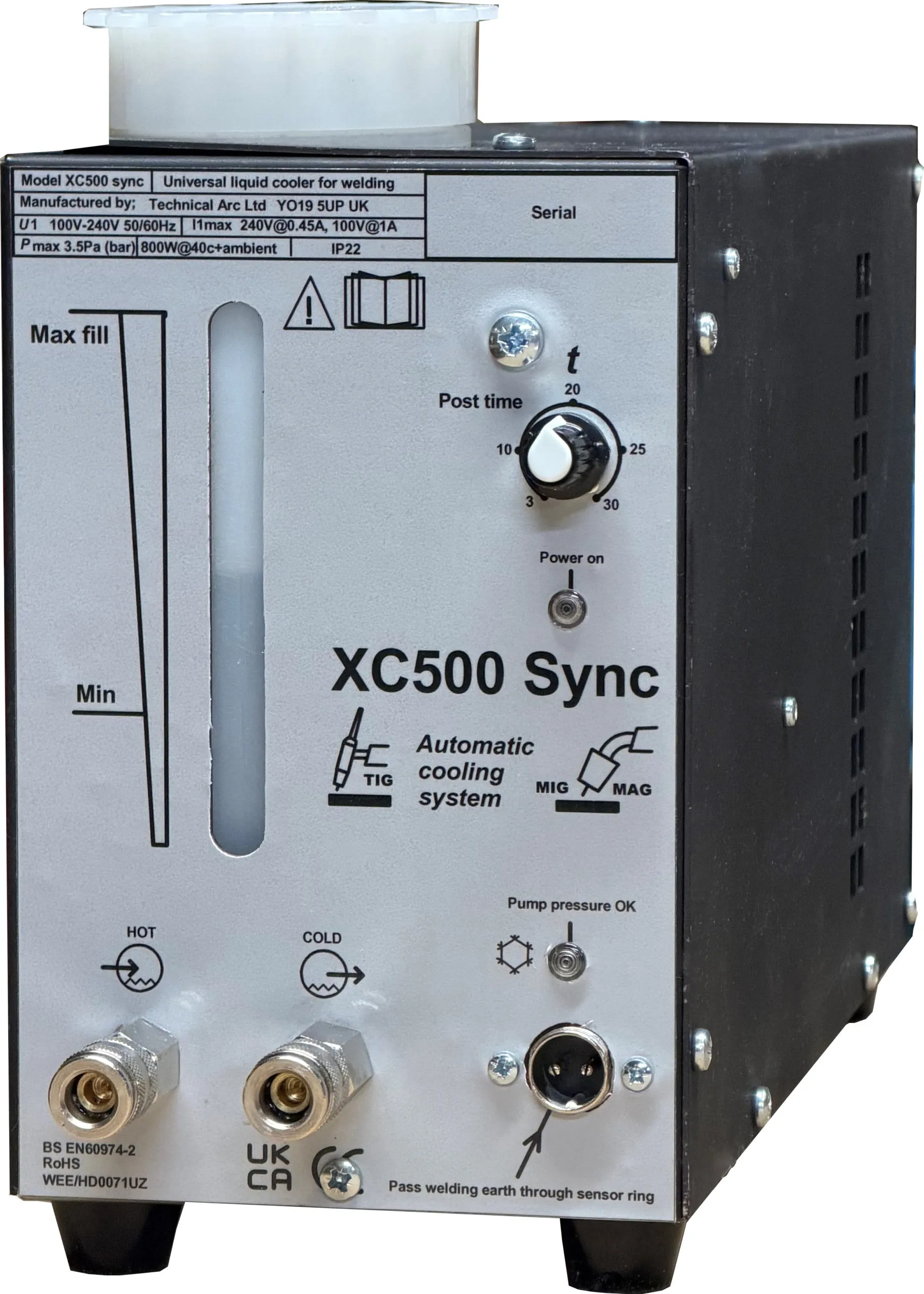

Technicalarc XC500 Water Cooler – Reliable Cooling for TIG and MIG Welding
The Tecarc XC500 water cooler is designed to provide reliable water cooling for compatible welding equipment, helping manage heat and maintain consistent performance during demanding welding applications. Ideal for professional welders, fabrication workshops and industrial environments, this welding water cooler supports effective torch cooling during extended periods of use.
The Tecarc XC500 is probably the most efficient ultra compact welding water cooler you can buy. Cooler synchronises to your welding machine and runs only when welding with additional post run time to cool the torch. With zero noise on standby and much reduced audible noise when pumping. Power consumption is also greatly reduced to a maximum of 70W.
Post run time can be adjusted for up to a maximum of 30 seconds on a variable control. This time reduces automatically for short welding periods, such as slow tacking where reduced torch cooling is okay. Whenever longer welding periods or multiple short welds are detected the post run time increases.
Quick fit snap connectors are standard, universal for almost all torches and machine brands.
- Runs only when needed
- Plug & play and weld set in 2 mins
- Power supply 85V-300V AC or 100-400V DC
- Miniature lightweight unit (130W x 220H x350L)
- Works with tap water
- Designed and manufactured in the UK
- For MIG's and TIG's up to 400 amps
Technical specs
Input power 85V - 300V AC , 100V - 400V DC, 70W max, 1W standby Cooling capacity Max 800W @ 40°C differential, 500W @ 25°C differential Pressure and flow rate P max 3.5 bar.Typically , 2L/min @1.8 bar Recommended welding range 400A DC TIG, 350A AC TIG, 400A MIG @ 50% duty Dimensions 130W x 220H x 350L mm
