Tecarc X4 Plasma Cutter

Code X4 AC230V
Code X4 AC230V
£0.00 £0.00(inc. VAT)
£699.00 £838.80(inc. VAT)
Save
Earn 0 reward points with this product.
  • Description

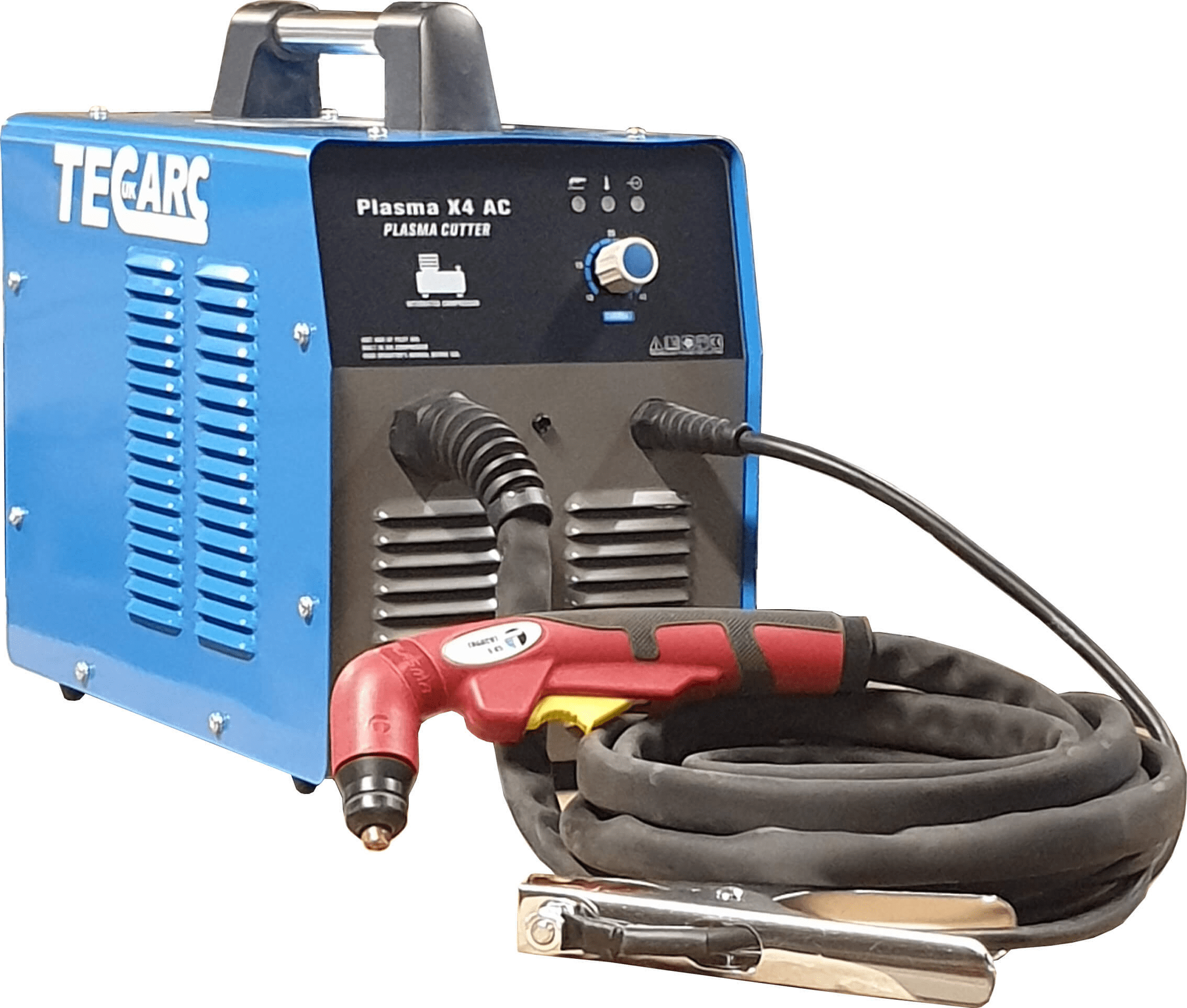

    The Tecarc X4 Plasma Cutter is the latest in-built compressor type plasma cutter from Technical arc UK. The X4 will sever cut up to 15mm and clean cut up to 10mm on mild steel. The X4 plasma is fitted with a very popular high quality S45 torch, making it easy to obtain consumables and accessories. The machine also features Pilot arc start and a fan on demand to aid efficiency.
    Built to comply with BS EN 60974-1, CE marked, RoHS compliant and WEEE registered so you can be sure of the safety & quality.

    2 year warranty




          Key benefits
    • Cuts all metals with ease, steel, stainless steel, aluminium, hardox, copper, brass, cast etc
    • High quality cut due to superior Italian made torch and good power source characteristics
    • Drag cutting with tip directly on material, no stand off needed, great for visibility and template following.
    • Non HF start design means safe for use on vehicles and near IT systems
    • Pilot arc cuts through paint, rust and grime and even plastic coatings
    • Over 90% efficiency means very low power consumption
    • Fan on demand reduces idle noise and power consumption
    • Built in air filter with automatic moisture draining
    • Generator friendly (must have AVR fitted) design - minimum 4.0kva.
    Technical SpecPlasma X4
    Mains input voltage230v
    Input fuse16A
    Generator minimum size4KVA
    Output current20-50A
    Duty cycle31A @ 40%
    Size approx400Lx310Hx210W
    Weight approx13.5Kg
    Cutting torchTrafimet S45 direct fit
    Max severance cut15mm
    Max recom cut (M. steel)10mm
    Max recom cut (stainless/ali)7mm
