STEALTH XG WELD/GRIND Helmet Package

The SWP Stealth-XG Air-Fed Welding & Grinding Helmet Package delivers an exceptional blend of visual clarity, respiratory protection, and ergonomic comfort for welding and grinding professionals. It features True Colour auto-darkening technology for vivid optics, TH3-level powered filtration, and a versatile flip-up design optimized for efficiency and safety.

Key Specifications & Features

Viewing & Optics

• Viewing Area: Large 100 × 60 mm window ensures excellent visibility for precise work

• Optical Performance: Auto-darkening filter (ADF) with perfect CE optical rating of 1/1/1/1 for minimal distortion

• True Colour Display: Advanced lens technology eliminates unnatural tints for a more accurate visual experience

• Sensors & Shade Range: Equipped with 3 or 4 arc sensors, offering adjustable shade ranges of 4/59 and 913

• Response & Controls: Ultra-fast 0.08 ms switching speed, adjustable sensitivity (0.10.9 s), delay settings, and OLED wireless remote for intuitive control

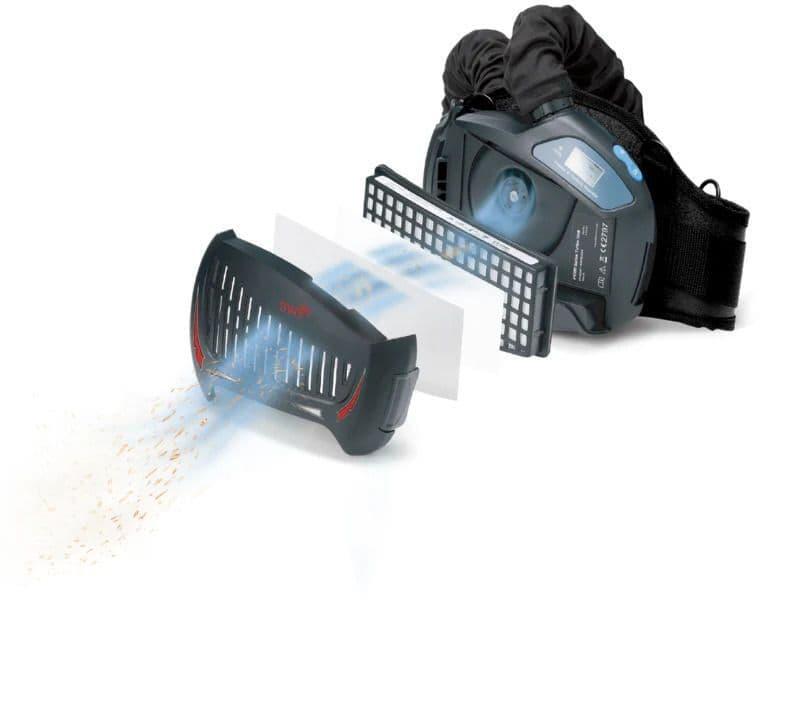

Air Fed PAPR Unit

• Filtration & Airflow: TH3-certified inward leakage protection and filtration efficiency up to 99.999.996%, with airflow adjustable across 170200230 L/min

• Comfort & Safety: Auto shutdown after 30 minutes of inactivity; warning system includes vibration, audible alarm, and light indicators for low battery, filter blockage, and overheating

• Battery Life: Heavy-duty Li-Ion battery offers up to 15 hours on Level 1, decreasing with higher airflow settings

• Display & Feedback: Built-in LCD shows airflow level, battery life, and filter status; operates at noise levels up to 73 dB; compact housing measures approximately 240 × 165 × 70 mm

Design & Ergonomics

• Weight & Build: Lightweight, ergonomic helmet constructed from high-impact-resistant material (~1.37 kg including battery)

• Flip-Up Functionality: Flip-up front lens for quick transition between welding and grinding without removing the helmet

• Comfort Features: Slim profile reduces fatigue; includes adjustable headband and sweatband; breathable airflow reduces fogging and enhances comfort

• Portable Kit: Supplied complete with filters, battery, blower unit, face seal and convenient carrying bag for on-site mobility

Certifications & Warranty

• Certifications: Meets CE optical 1/1/1/1 standards, EN 12941 (TH3 P R S L), and has PAPR class filtration recognized for welding safety

• Warranty: Comes with a 2-year manufacturers warranty for long-term reliability

Technical Data

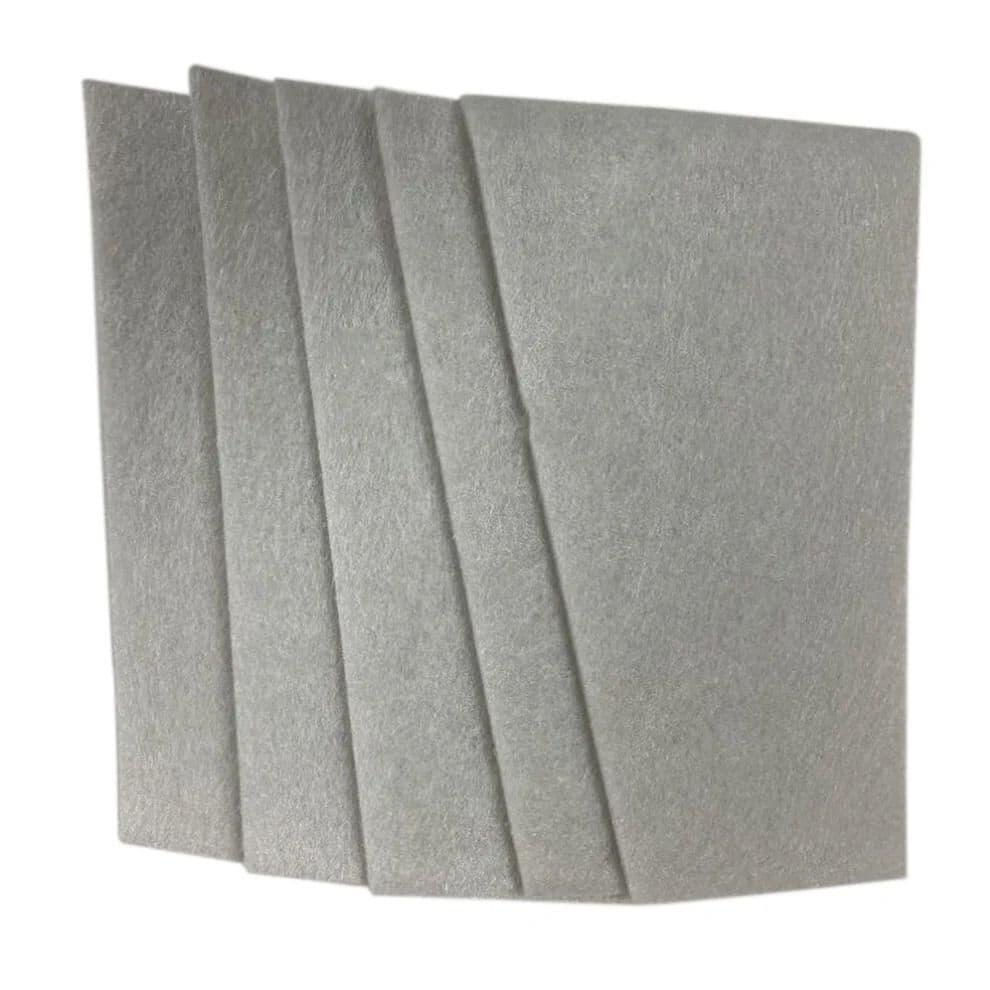

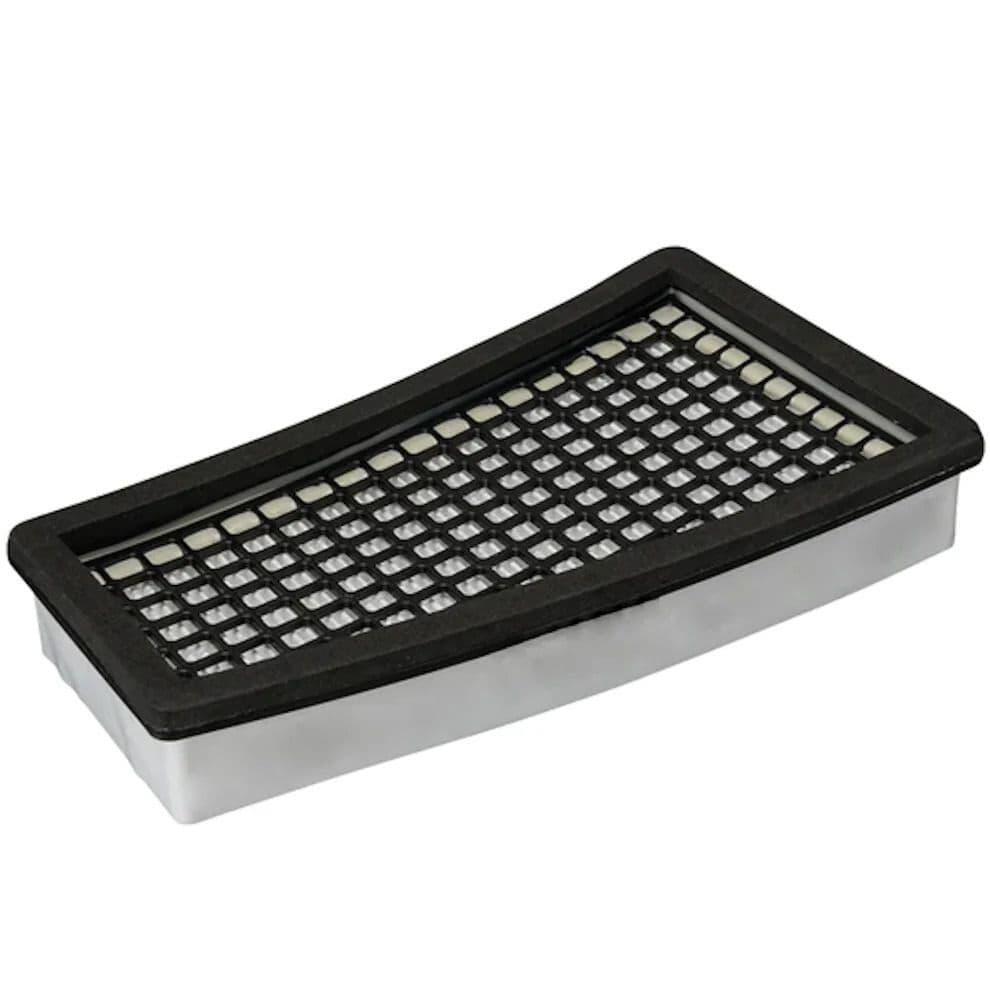

Supplied with spare filters.
