Stealth Digi-MIG 200 LCD

Code 9005H
Code 9005H
£0.00 £0.00(inc. VAT)
£625.00 £750.00(inc. VAT)
Save
Earn 0 reward points with this product.
  • Description

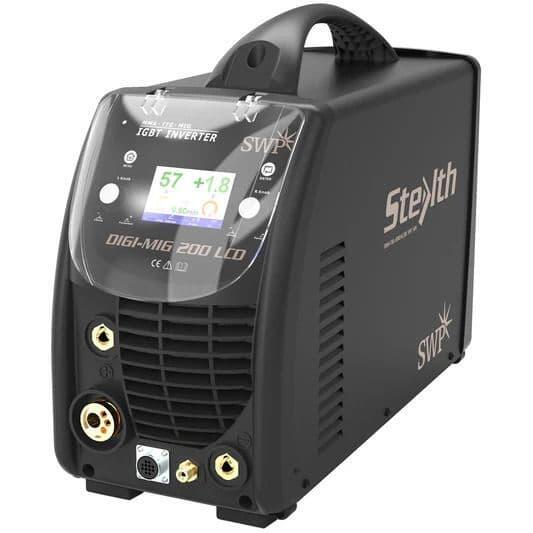

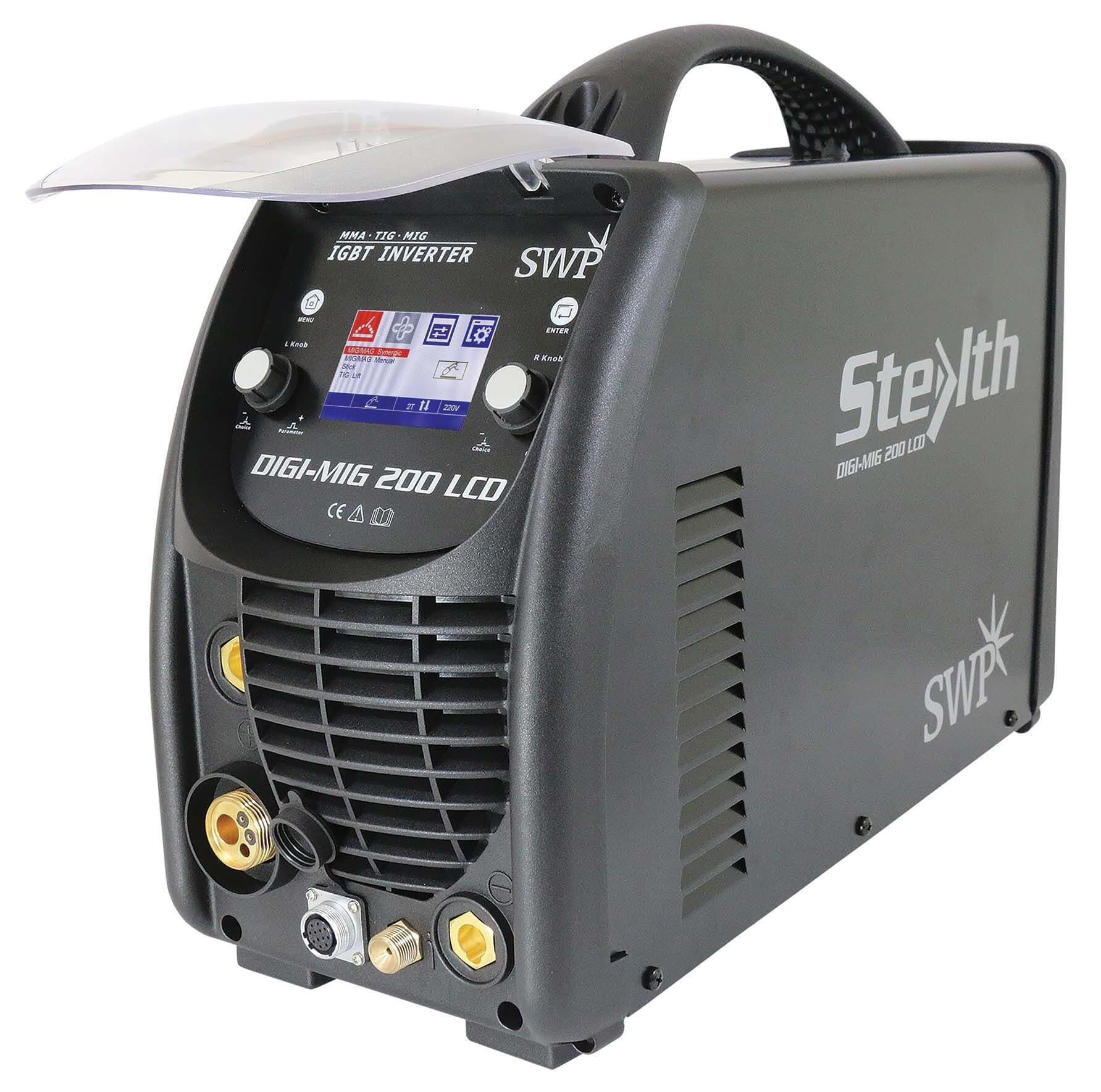

    Stealth Digi-MIG 200LCD multi process 110V/230V welder.

    The Stealth MIG 200 LCD PFC Multi-Process Multi-Volt MIG Welding Machine is a compact, high-performance welding solution engineered for professional fabrication, maintenance, and mobile workshop use. Designed with advanced Power Factor Correction (PFC) technology and multi-voltage compatibility, it delivers reliable arc stability and consistent welding performance across a wide range of power supplies, making it ideal for both workshop and on-site applications.

     Features

    • LCD displays 260,000 true colours
    • MIG welding (gas and gas less)
    • Lift TIG (DC only)
    • MMA (arc) welding
    • Power factor more than 0.99
    • Multiple advantages such as energy saving and wider input voltage
    • Works with 110V and 230V
    • Needs only 7 kVA to run off a generator
    • Capable of loading up to 5kg spool
    • Waveform control for added stability of the arc-even at low currents
    • Equipped with temperature, voltage and current sensors for high protection
    • Five year warranty
    • MB25 4m MIG torch, earth cable and regulator included

    Technical

    • Input power voltage (V): 110/230±10%
    • Frequency (Hz): 50/60
    • Effective current - 110V MIG: 23.4 | TIG: 17.7 | MMA 17.7
    • Effective current - 230V MIG: 17.7 | TIG: 13.9 | MMA: 20.2
    • Rated input current (A) 110V MIG: 37 | TIG: 28 | MMA: 28
    • Rated input current (A) 230V MIG: 28 | TIG: 22 | MMA: 32
    • Duty cycle (A) (40°C 10 min) MIG: 40%@140 | 60%@115 | 100%@90
    • Duty cycle (A) (40°C 10 min) TIG: 40%@100 | 60%@85 | 100%@65
    • Duty cycle (A) (40°C 10 min) MMA: 40%@200 | 60%@165 | 100%@130
    • No load voltage - limited (V): 67 (MIG) 14 (TIG/MMA)
    • Welding current range (A): 25-140 (MIG 110V) | 25-200A (MIG 230V)
    • Welding voltage range (V): 10-21 (MIG 110V) | 10-27V (MIG 230V)
    • Efficiency (%): 80
    • Power factor: 0.99
    • Protection class: Ip23
    • Cooling: Air
    • Overall dimensions (mm): 560 x 220 x 410
    • Weight (kg): 15.5
    • Accessories included: 3m Argon hose, 3m earth return lead


    OPERATORS MANUAL
