- Description

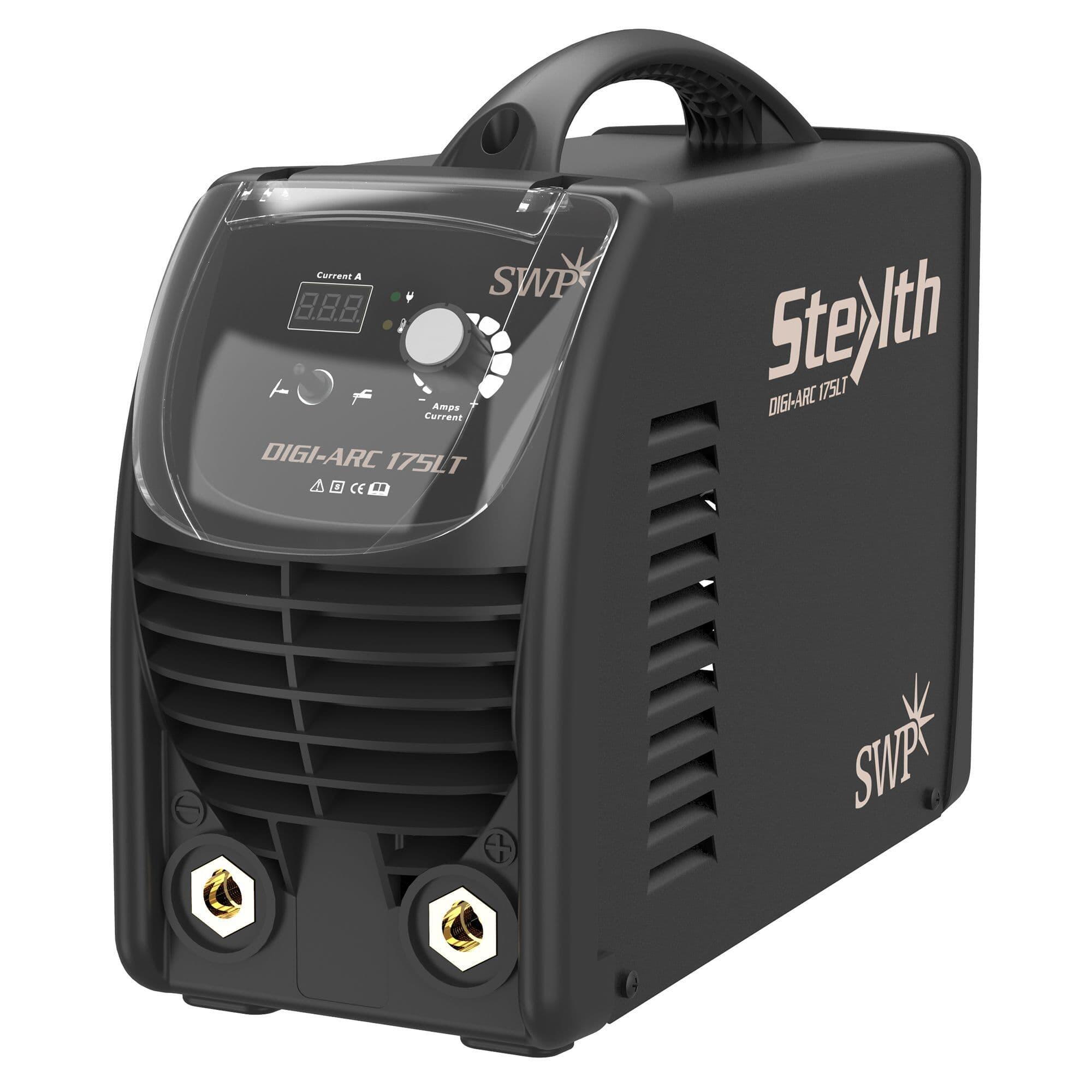

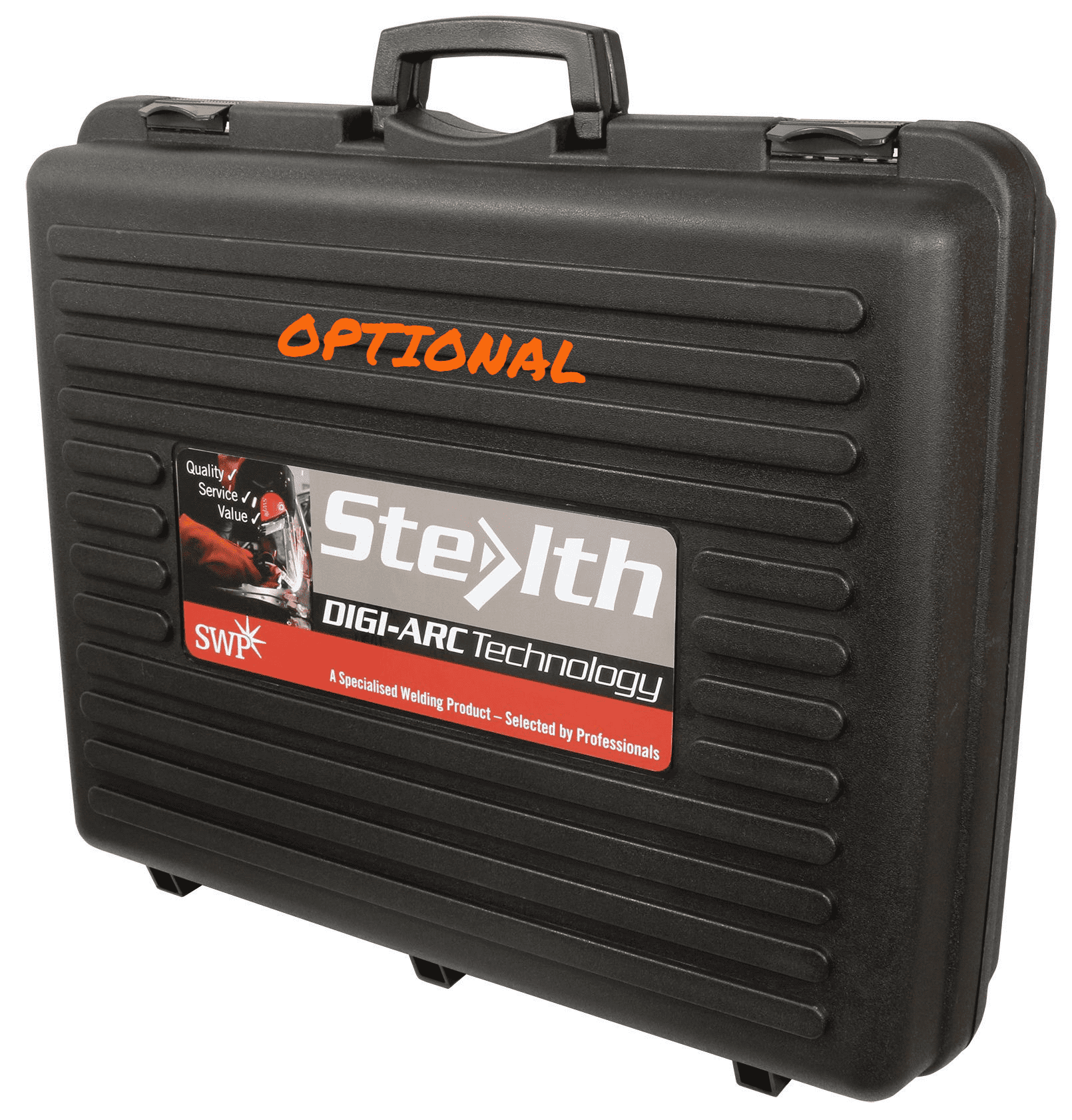

The Stealth Digi-Arc 175 LT 240V Welding Machine is an advanced inverter welder designed for precision, reliability, and professional performance. Featuring a clear digital display for real-time monitoring of welding time, current, voltage, and amperage, it provides enhanced control for a wide range of welding applications. Equipped with built-in Hot Start, Anti-Stick, and Arc Force functions, it ensures smooth arc ignition and improved welding stability. The machine also includes Lift TIG capability for added versatility, with an optional carry case (9029) available for convenient transport and storage.
Features
- Hot start
- Lift/TIG facility
- Rugged internal support frame
- Generator friendly
- Excellent duty cycle with variable arc force for easy electrode striking.
- Digital display
- Five year warranty
- Supplied with leads.
Technical

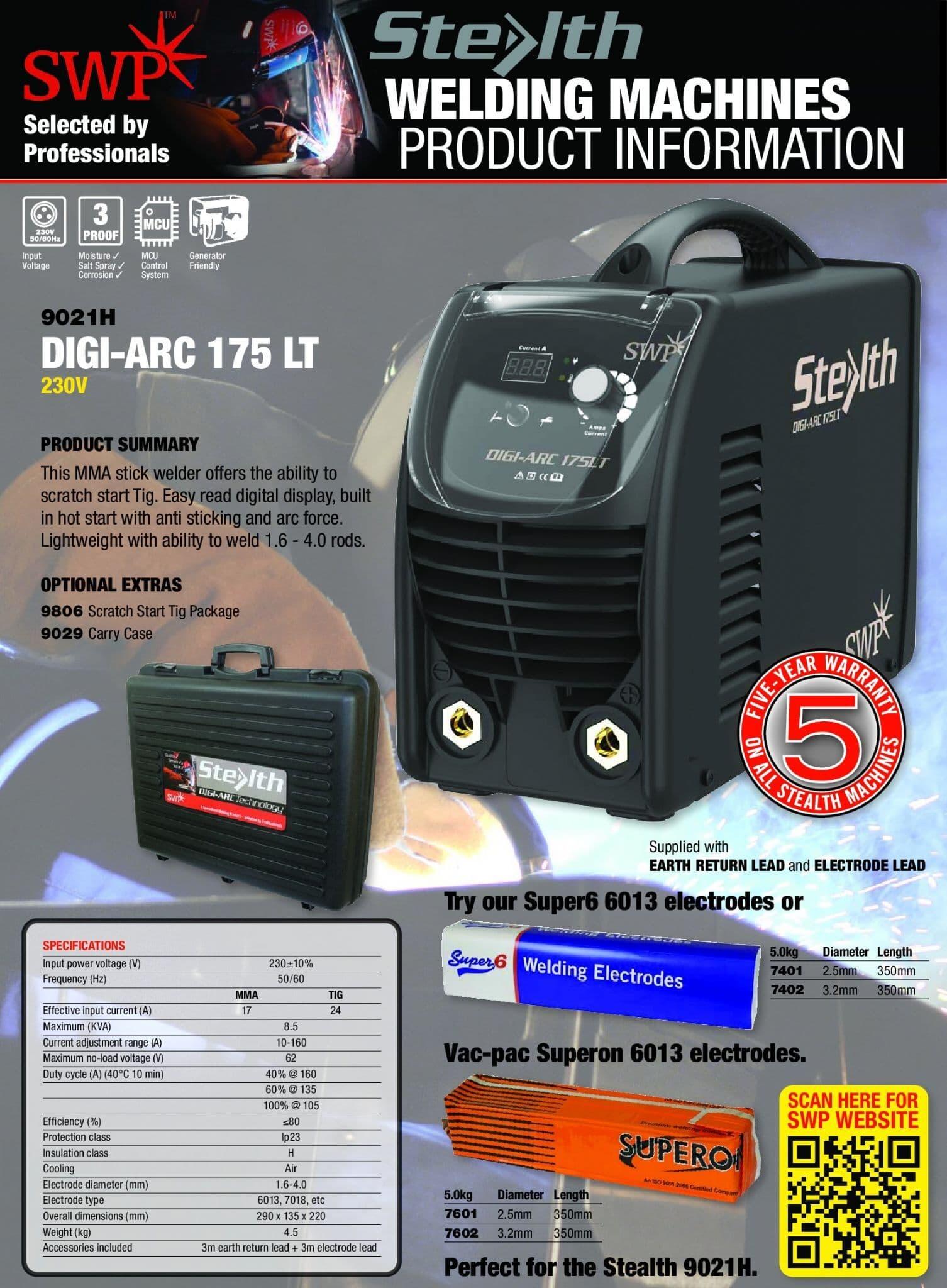

Input power voltage 230 + - 10% Frequency (Hz) 50/60 MMA TIG Effective input current (A) 17 24 Maximum (kVA) 8.5 Current adjustment range (A) 10-160 Maximum no-load voltage (V) 62 Duty cycle (A) (40 deg C 10 min) 40% @ 160 60% @ 135 100% @ 105 Efficiency (%) _> 80 Protection class Ip23 Insulation class H Cooling Air Electrode diameter (mm) 1.6 - 4.0 Electrode type 6013,7018 etc Overall dimensions (mm) 362 x 148 x 280 Weight (Kg) 4.5 Generator requirement 5kva Included 3m leads Optional carry case.
