- Description

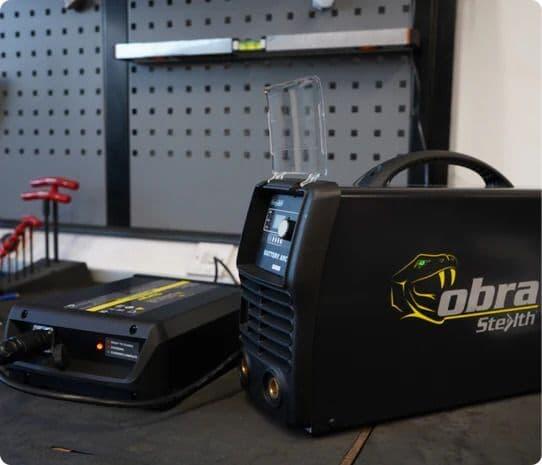

The Cobra by Stealth Arc 180 Battery Arc Welding Machine boasts a quick 60-minute charge time for its lithium battery, allowing for 80% super charging. Its hot start and anti-sticking features ensure a seamless welding experience. At just 11.5kg, it combines power and portability for optimal efficiency. The Cobra by Stealth Arc 180 Battery Arc Welding Machine supports an AC charging voltage of 230V ± 10%, ensuring compatibility with standard power supplies. At full charge this machine will burn 8 x 6013 3.2mm rods at 120 amps concurrently.
Supplied with supercharger the Stealth Cobra 180 ARC welder is ideal where power supply is a problem.
Features
- Supplied with charger
- Includes leads

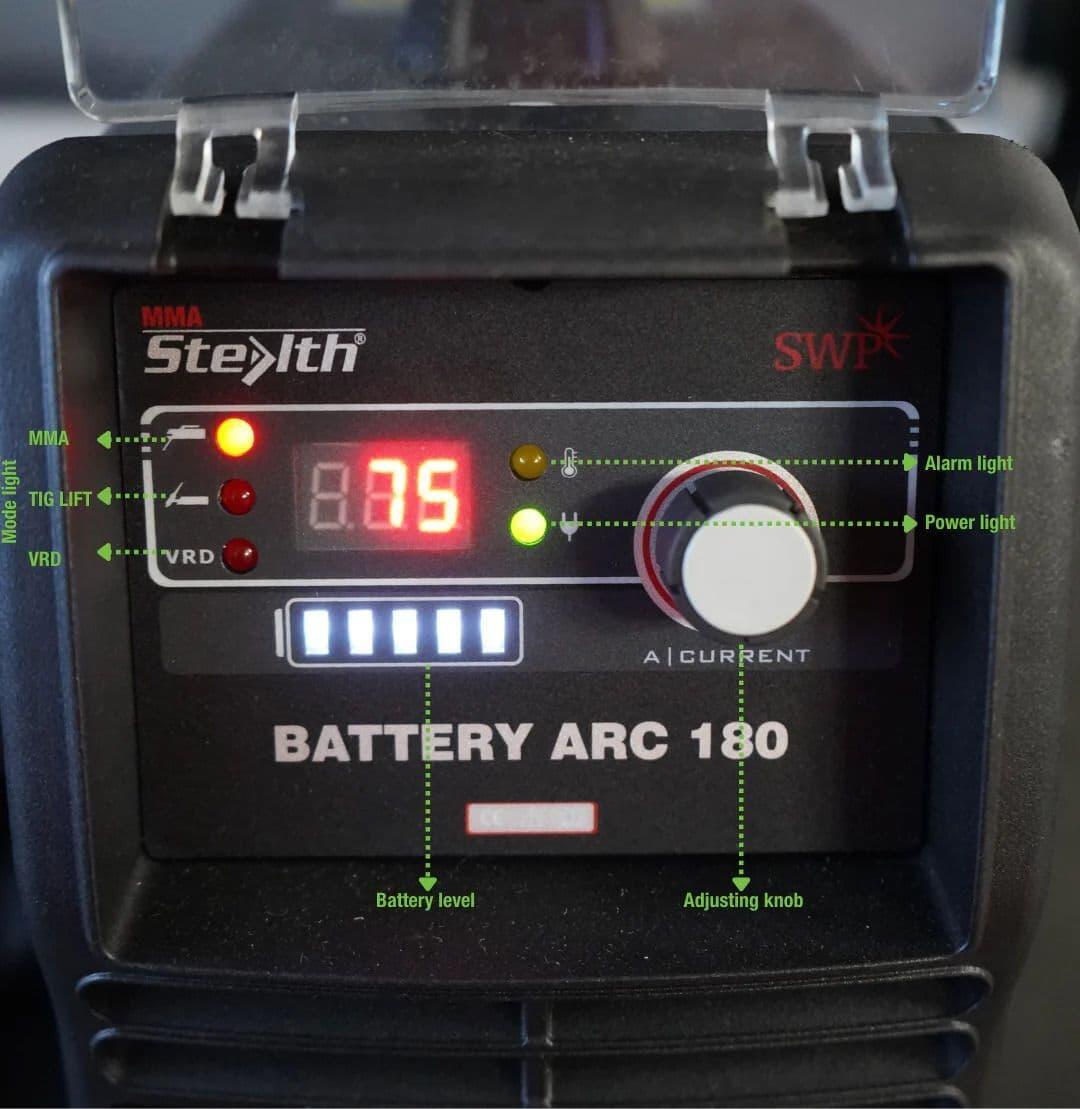

- Battery level
- Variable amperage control
- Temperature, voltage and current sensors
- Fully protected against under and over voltage
- Battery protection prevents over heating
- 5 year warranty
Technical
Battery type lithium ion Battery capacity 740 +/-55 AC charging voltage (V) 230V +/- 5% Charging time (mins) 100 Rated voltage of battery 74 Charging current (A) 8 No load voltage (V) MMA:83.5
TIG:83
Duty cycle (A) (40°C to 10 min) 10% @180
20% @130
100% @60
Welding current range (A) MMA: electricity >40%| 10-180
TIG: electricity >40%|10-150
Duty cycle 230V MMA (A) (40°C to 10 min) 35% @ 200A
60% @ 155A
100% @ 120A
Cycle life charges 100 Protection class IP21S Cooling AF Weight (kg) 11.5 Dimensions (mm) 440 x 150 x 280 Standards EN60974-1.2021(LV)
EN60974-10.2021(EMC)
2019/125/EC
