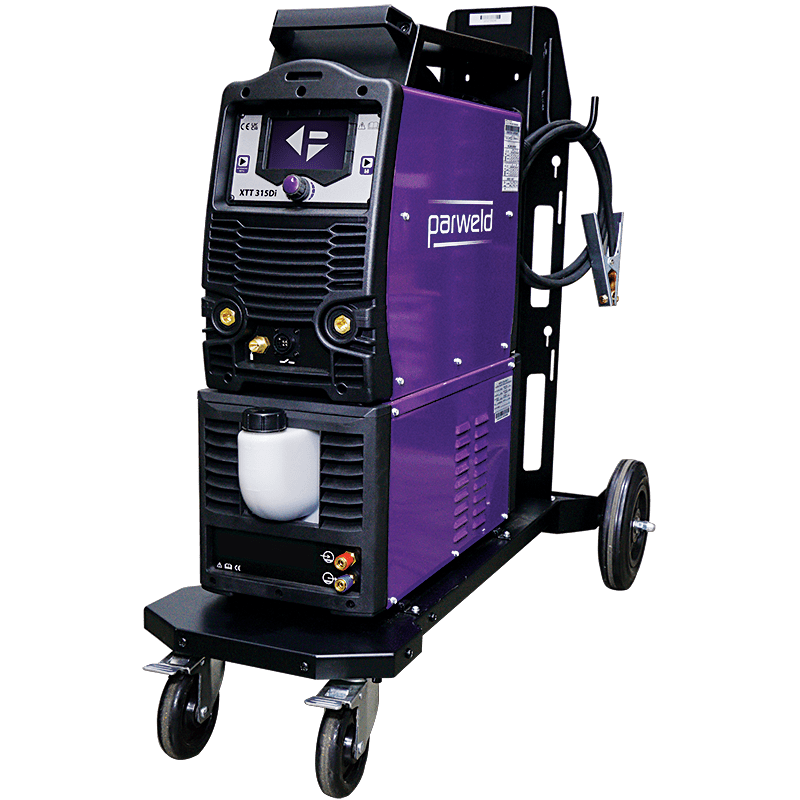

Parweld XTT315DI AC/DC Pulse Water Cooled TIG Welder With Trolley

Code XTT315DI-P1W
Code XTT315DI-P1W
£0.00 £0.00(inc. VAT)
£2,998.00 £3,597.60(inc. VAT)
Save
Earn 0 reward points with this product.
  • Description

    The Parweld XTT315Di AC/DC water cooled TIG Welder is a versatile, high-performance welding machine designed for professional welders. Offering both AC and DC output, this welder is ideal for precision welding on materials like aluminium, stainless steel, and copper. With advanced digital control, pulse functionality, and an intuitive user interface, the XTT315Di provides superior arc stability, efficient operation, and high-quality results. Multi-wave output using Sine Triangle or Square wave allows precise heat and bead profile control. Equipped with a high duty cycle and built for demanding industrial environments, this welder is perfect for applications that require accuracy and reliability. Experience exceptional performance with Parweld's trusted welding technology.

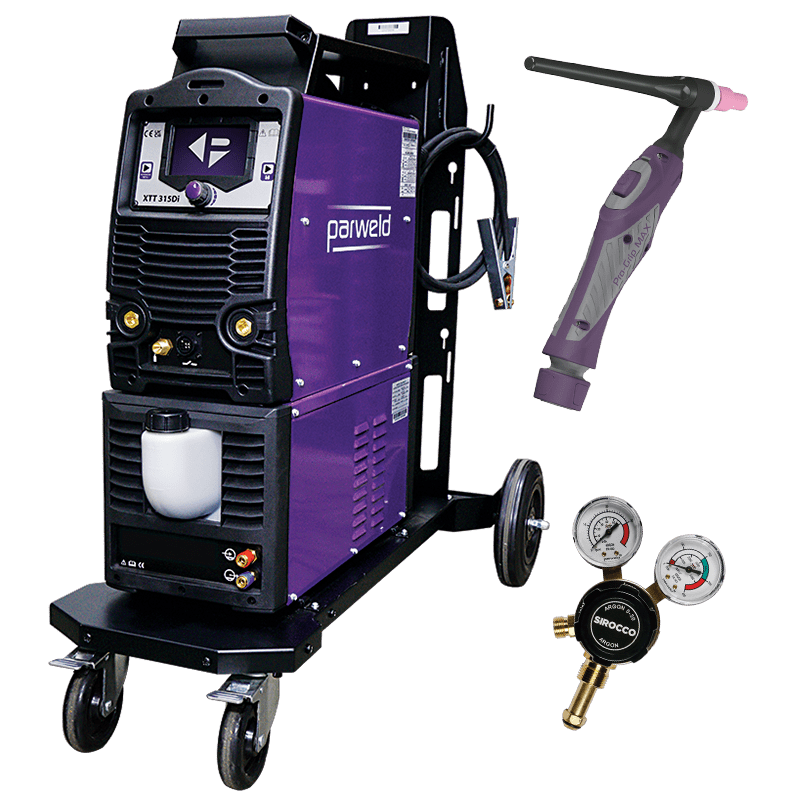

    This water cooled version is supplied with the water cooler, trolley ,Pro-grip Max 18 4M TIG torch, gas hose, earth return and regulator.

    5 YEAR WARRANTY

    Key Features

    • Three Phase
    • 400V Input Voltage
    • Multi-Wave AC
    • 315A @ 60% Duty Cycle
    • Variable Pulse Frequency
    • Variable AC Frequency
    • Square Wave AC TIG Mode
    • HF Arc Starting
    • Spot Weld Capabilities
    • Full TIG Parameter Adjustment
    • Digital Interface Control
    • Can be used with generators with AVR control


    Machine typeInverter
    Power supply400V 3PH
    Maximum current315A DC
    Output current5-315A DC, 10-315A AC
    Duty cycle315A @ 50% duty cycle
    Input current (Eff)17.1A
    OutputAC DC
    Up slope function0-10 seconds
    Down slope function0-10 seconds
    Pre-flow function0-10 seconds
    Post-flow function0-10 seconds
    Pulse frequency0.5-200 Hz
    AC frequency50-250Hz
    KVA13.6
    Generator requirement (must have AVR)17 KVA
    Conforms toIP23S,ISO/IEC 60974-1,ISO/IEC 60974-6
    Conforms toRoHS compliant
    Dimensions in mm1070H x 600W x 1100 D
    Weight57 kg
    Warranty5 years

     Call us for a great deal ! 02392 295612
