- Description
The Parweld XTT315Di AC/DC TIG Welder is a versatile, high-performance welding machine designed for professional welders. Offering both AC and DC output, this welder is ideal for precision welding on materials like aluminium, stainless steel, and copper. With advanced digital control, pulse functionality, and an intuitive user interface, the XTT315Di provides superior arc stability, efficient operation, and high-quality results. Multi-wave output using Sine Triangle or Square wave allows precise heat and bead profile control. Equipped with a high duty cycle and built for demanding industrial environments, this welder is perfect for applications that require accuracy and reliability. Experience exceptional performance with Parwelds trusted welding technology.

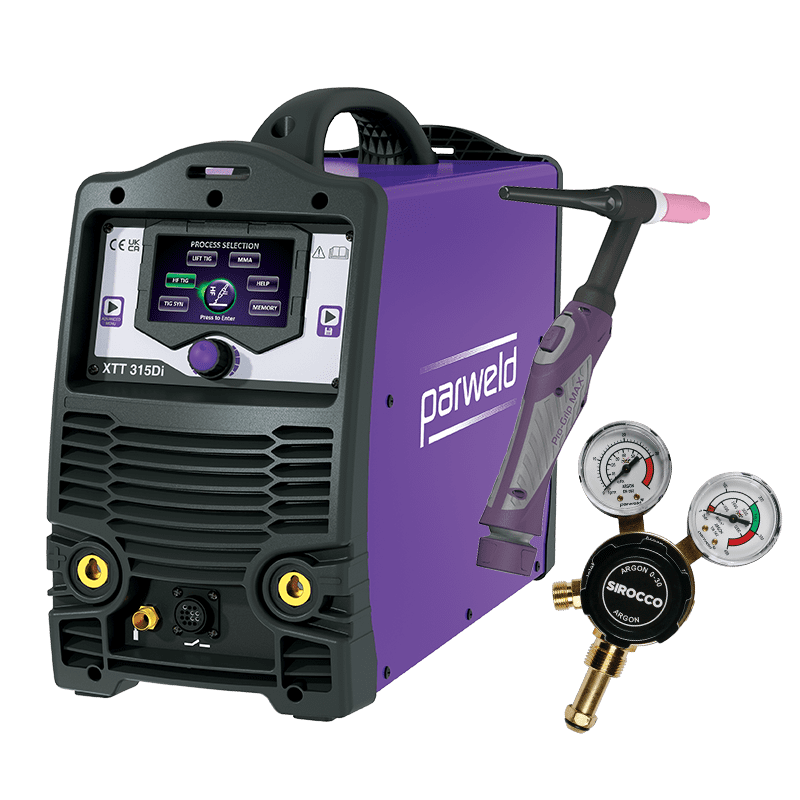

This air cooled version is supplied with a Pro26 3 button 4M TIG torch, gas hose, earth return and regulator.
5 YEAR WARRANTY
Key Features
- Three Phase
- 400V Input Voltage
- Multi-Wave AC
- 315A @ 60% Duty Cycle
- Variable Pulse Frequency
- Variable AC Frequency
- Square Wave AC TIG Mode
- HF Arc Starting
- Spot Weld Capabilities
- Full TIG Parameter Adjustment
- Digital Interface Control
- Can be used with generators with AVR control
Machine type Inverter Power supply 400V 3PH Maximum current 315A DC Output current 5-315A DC, 10-315A AC Duty cycle 315A @ 50% duty cycle Input current (Eff) 17.1A Output AC DC Up slope function 0-10 seconds Down slope function 0-10 seconds Pre-flow function 0-10 seconds Post-flow function 0-10 seconds Pulse frequency 0.5-200 Hz AC frequency 50-250Hz KVA 13.6 Generator requirement (must have AVR) 17 KVA Conforms to IP23S,ISO/IEC 60974-1,ISO/IEC 60974-6 Conforms to RoHS compliant Dimensions in mm 580 x 240 x440 Weight 38 kg Warranty 5 years Please call us for a great deal ! 02392 295612
