- Description
The Parweld XTP105i Plasma Cutter is a high-performance, industrial-grade inverter machine engineered for precision and efficiency in metal cutting applications. Operating on a 400V three-phase input, it delivers a robust 100A output at a 100% duty cycle, making it ideal for demanding tasks.
The XTP 105i,s variable output makes it ideal for cutting metals up to 30mm thick. Infinite power control allows the output to be tuned to minimise dross on the cut edges.
The pilot arc can be set to automatically re-ignite enabling easy cutting of mesh or perforated materials. Non HF ignition option minimises the risk of interference with electronic systems.
The XTP 105 is able to cope with inputs which fluctuate by +/-15% and can be used with the majority of generators.
The machine is housed in a metal case with carry handles.
Features
- 400V, 3 Phase Input
- 100A @ 100% Duty Cycle
- Cuts Any Metal
- 30mm Production Cut
- 50mm Severance Cut
- Built-in Air Pressure Regulator
- Built-in Air Pressure Gauge
- Auto Over Voltage Protection
- Auto Over Current Protection
- Generator Friendly
- Ideal for Mesh Cutting (Mesh Cutting Mode Available)
- Non-HF Start
- CNC Interface for Automatic Operation

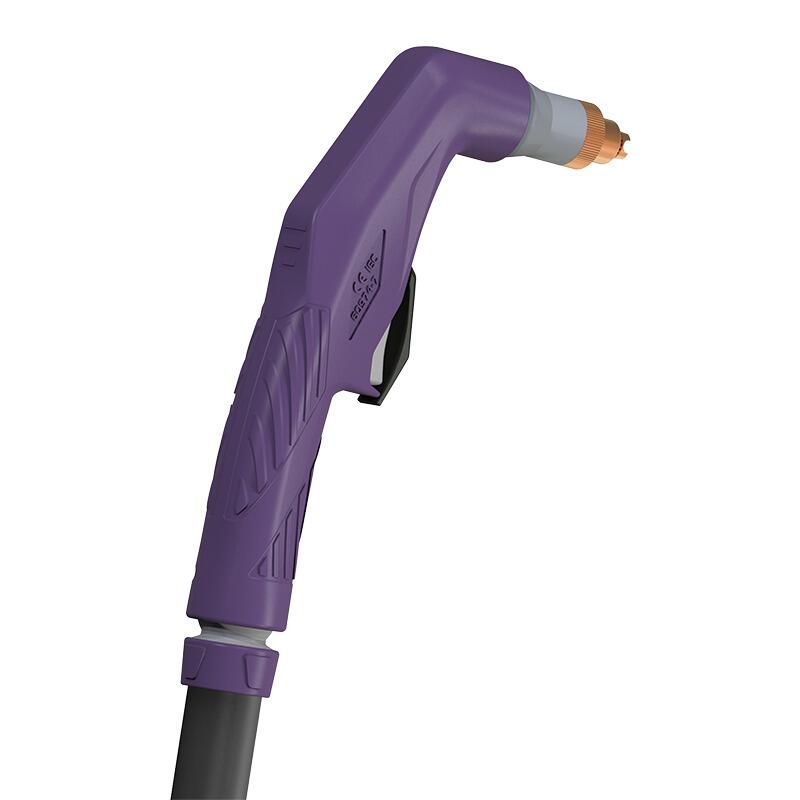

- Supplied with XTY125 Plasma Cutter Torch
- Supplied with 3m Earth Cable
- 5 Year warranty
Technical Data
Output Current 20-100A Input Voltage 400V 3Ph Duty Cycle 100A @ 100% Production Cut Capacity 30mm Severance Cut Capacity 50mm Starting Method Short Circuit Min Fuse Rating 32A Input Current (EFF) 21.6 KVA 13 Generator Size (AVC req) 15 KVA Enclosure Protection IP23S Dimensions (LxWxH) mm 530 x 250 x 400 Weight (kg) 25
