Parweld XTM201DI

Code XTM201DI-P2
Code XTM201DI-P2
£0.00 £0.00(inc. VAT)
£1,195.83 £1,435.00(inc. VAT)
Save
Earn 0 reward points with this product.
  • Description

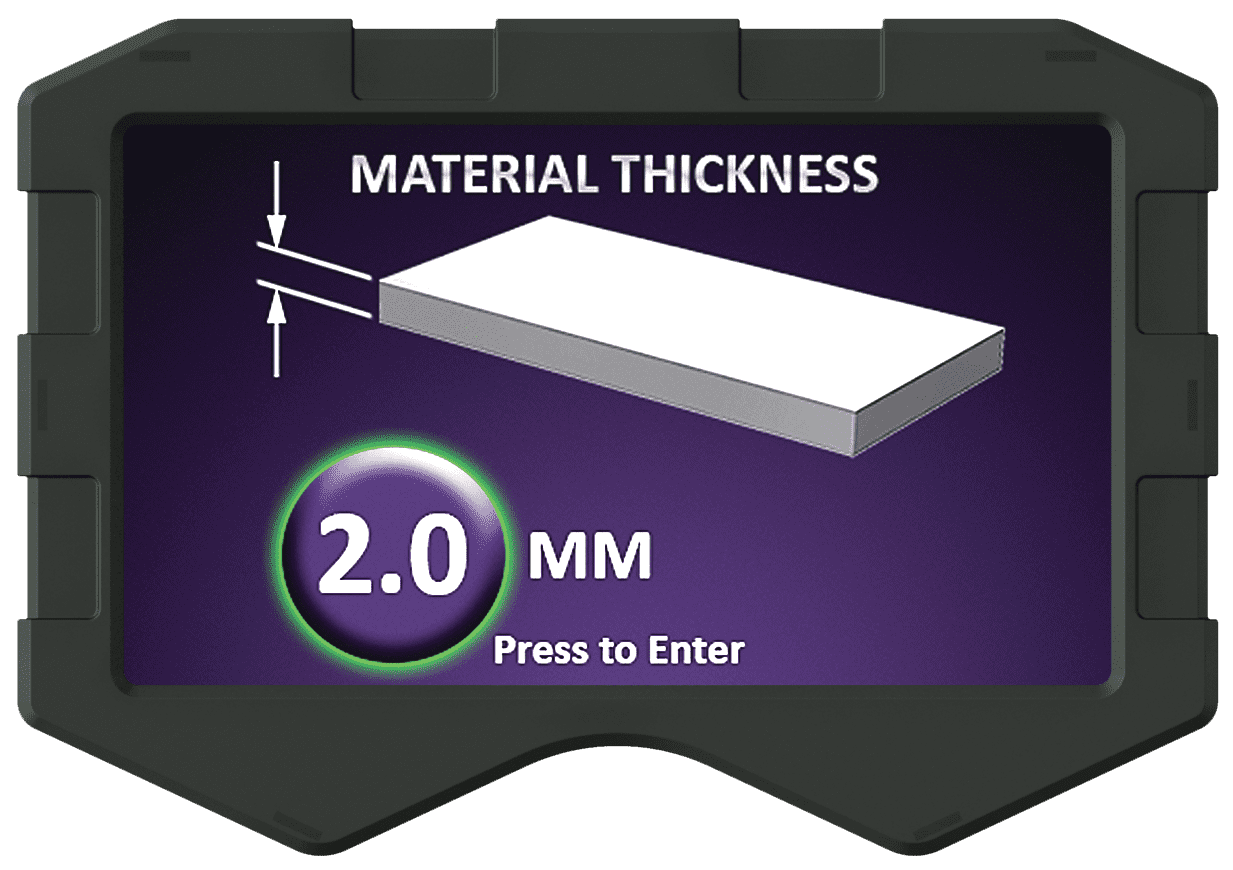

    The Parweld XTM201DI is a multi-process (3 in 1) inverter welder capable of MIG,TIG and Arc welding from one machine. Simply select your weld process ,gas, material thickness and wire size and the machine automatically sets to the correct parameters for your job. You can then make adjustments using the control knobs. The XTM201Di uses rapid synergic setup technology, allowing the operator to quickly select welding process, material thickness, and wire type. The machine then automatically configures the correct voltage and wire feed parameters, significantly reducing setup time and ensuring consistent weld results.

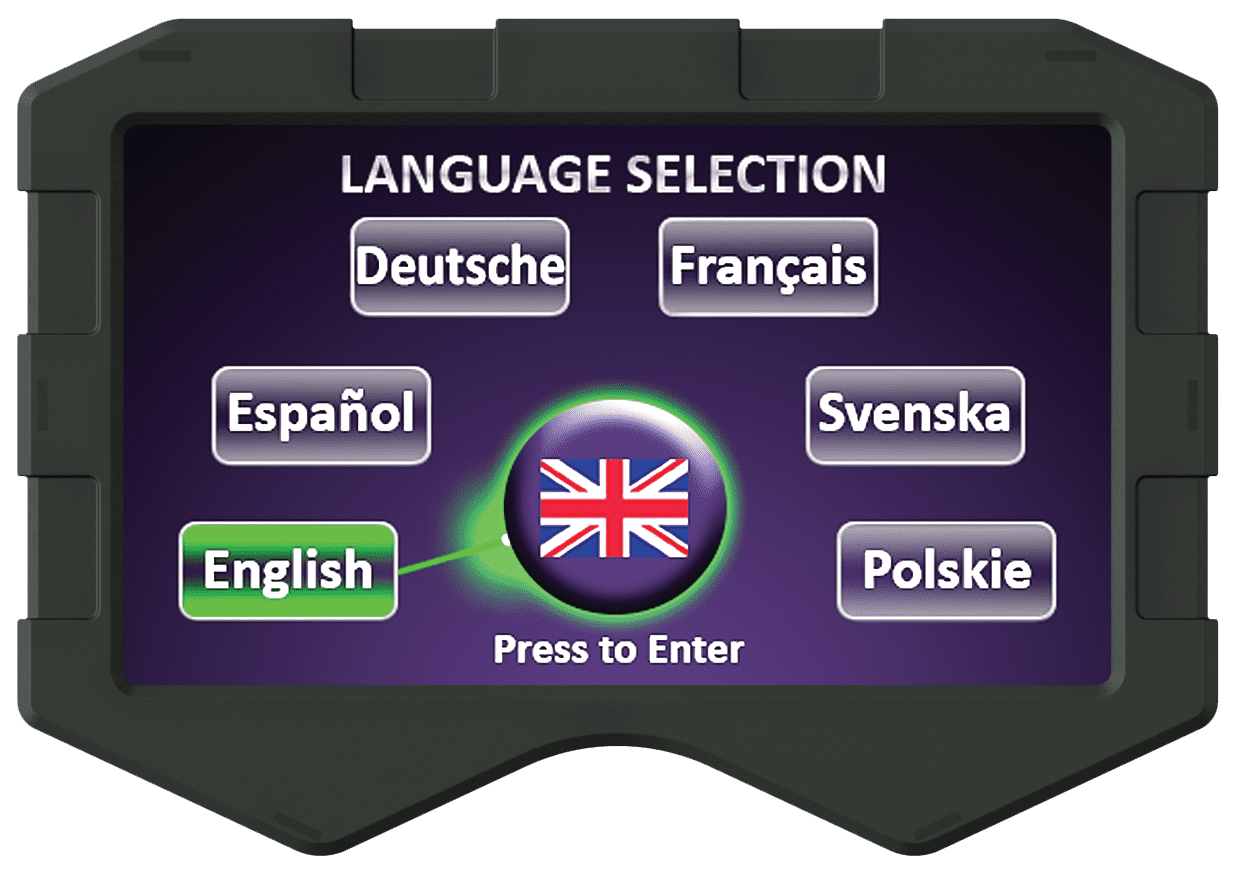

    A digital user interface with dual display provides clear parameter visibility and guided instructions for machine configuration. Operators can further fine-tune voltage and wire feed speed directly from the front panel or torch controls for improved arc control and welding precision.

    Multi-Process Flexibility

    The Parweld XTM201Di is suitable for welding a wide range of materials including:

    • Mild steel

    • Stainless steel

    • Aluminium (MIG)

    • Sheet metal and light fabrication

    The machine is capable of welding material thicknesses down to approximately 0.9 mm, making it suitable for automotive bodywork as well as general fabrication tasks.


    This machine package (P2) includes a remote control MIG torch, Pro TIG torch, MIG wire and regulator package.

    5 Year Warranty

    Features



    • Smart switching dual voltage 110-230V
    • DC HF TIG (not aluminium)
    • MIG
    • MMA (ARC)
    • Accepts 5kg (200mm) or 1kg(100mm) spools
    • Supplied with remote type MIG torch,3m earth lead, gas hose,regulator,5 kg 0.8mm MIG wire, MMA leads and Pro-Grip Max 17 TIG torch.

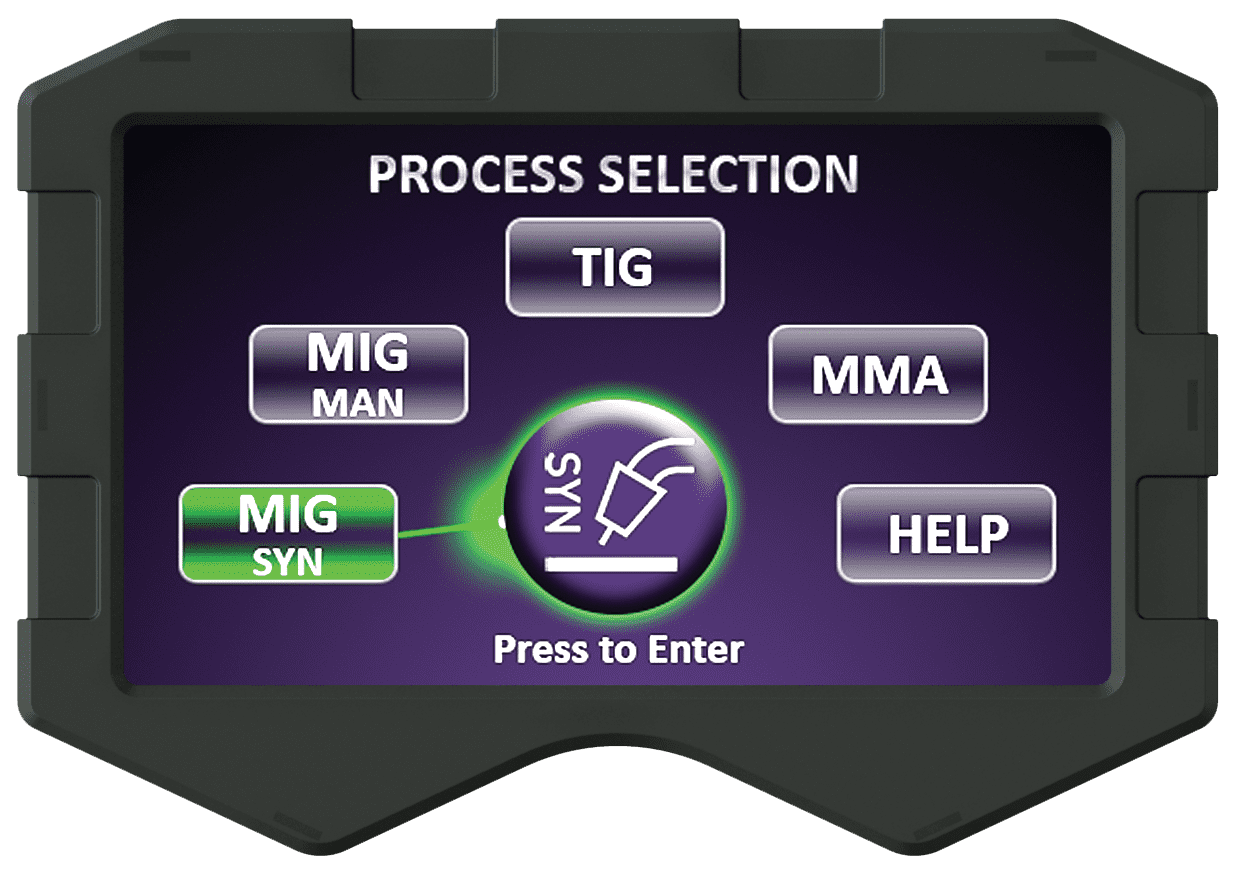

    • Rapid synergic set up for MIG,TIG and MMA welding
    • Adjust voltage & wire speed from the torch
    • Easy to follow digital user interface
    • MIG weld with or without gas
    • Display visible in sunlight
    • Replaceable screen protector
    • MIG weld down to 0.9mm material thickness
    • 5 Years return to base warranty
    • Manufactured to IP23S,ISO/IEC 60974-1,ISO/IEC 60974-6 & ROHS compliant

    The only machine you need !



    Style Portable
    Machine TypeInverter MIG/TIG/MMA
    Wire Feed Speed3.5 - 21 m/min
    VoltageMIG-14.5-24v Tig-10.4-18v MMA 20.4-28v
    Spool Size200mm (5kg)100mm (1kg)
    Feed Box2 Roll feed
    Wire Size0.6-1.0mm
    Duty Cycle200A @ 25%
    Input Voltage110V/230V
    Max Current140A/200A
    Min Current30A (MIG) 10A (TIG)
    Fuse Rating32A @110V 16A @ 230V
    Input Current32A @110V 16A @230V
    KVA3.7
    Generator Size12 KVA
    Enclosure ProtectionIP23S
    Dimensions (L x W x H mm)490 x 220 x 430
    Weight (kg)17.5

    OPERATORS MANUAL
