Parweld XTM 211DI (With AC/DC TIG)

Code XTM211DI
Code XTM211DI
£0.00 £0.00(inc. VAT)
£1,790.00 £2,148.00(inc. VAT)
Save
Earn 0 reward points with this product.
  • Description

    Parweld XTM211DI The All-in-One Multi-Process Welder That Does It All

    The Parweld XTM211DI is a high-performance, multi-process inverter welder built for serious welders who want versatility without switching machines. This unit delivers MIG, TIG (AC/DC) and MMA (ARC) welding in one compact, portable system and it runs on both 110V and 230V, so you can take it anywhere.

    With up to200 amps of output, the XTM211DI can handle everything from thin sheet metal to structural work. Whether you're on-site, in a workshop, or working on custom builds, this welder gives you the control and consistency you need.

    The machine is synergic, which means it auto-adjusts voltage and wire speed for you just set the wire thickness and material, and you're welding. Want manual control? Youve got that too.

    The digital interface is clean, clear, and quick to set up. Switching between MIG, TIG, and MMA is instant. If you're welding mild steel, stainless steel, or aluminium, the XTM211DI gives you excellent arc stability, low spatter, and clean welds with minimal fuss.

    3 Year warranty

    Features

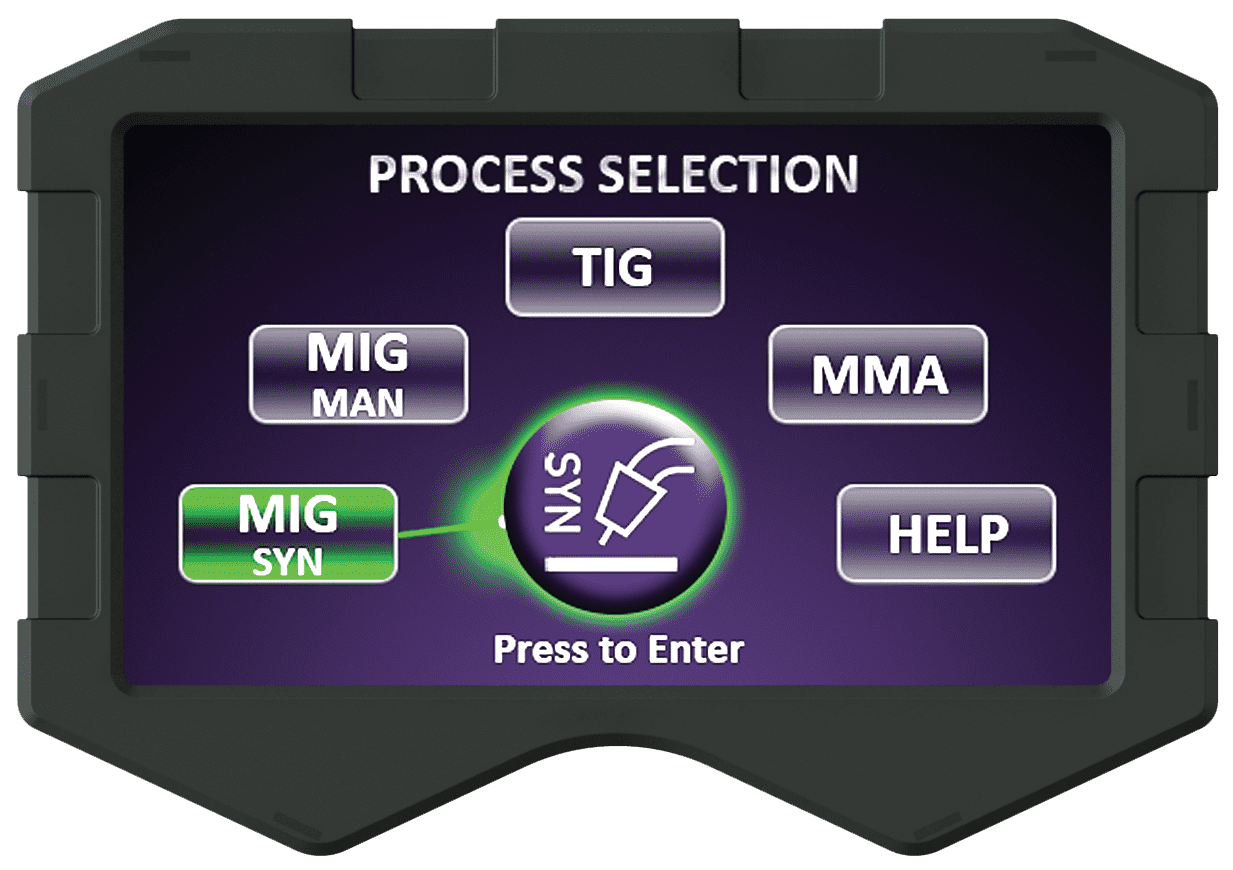

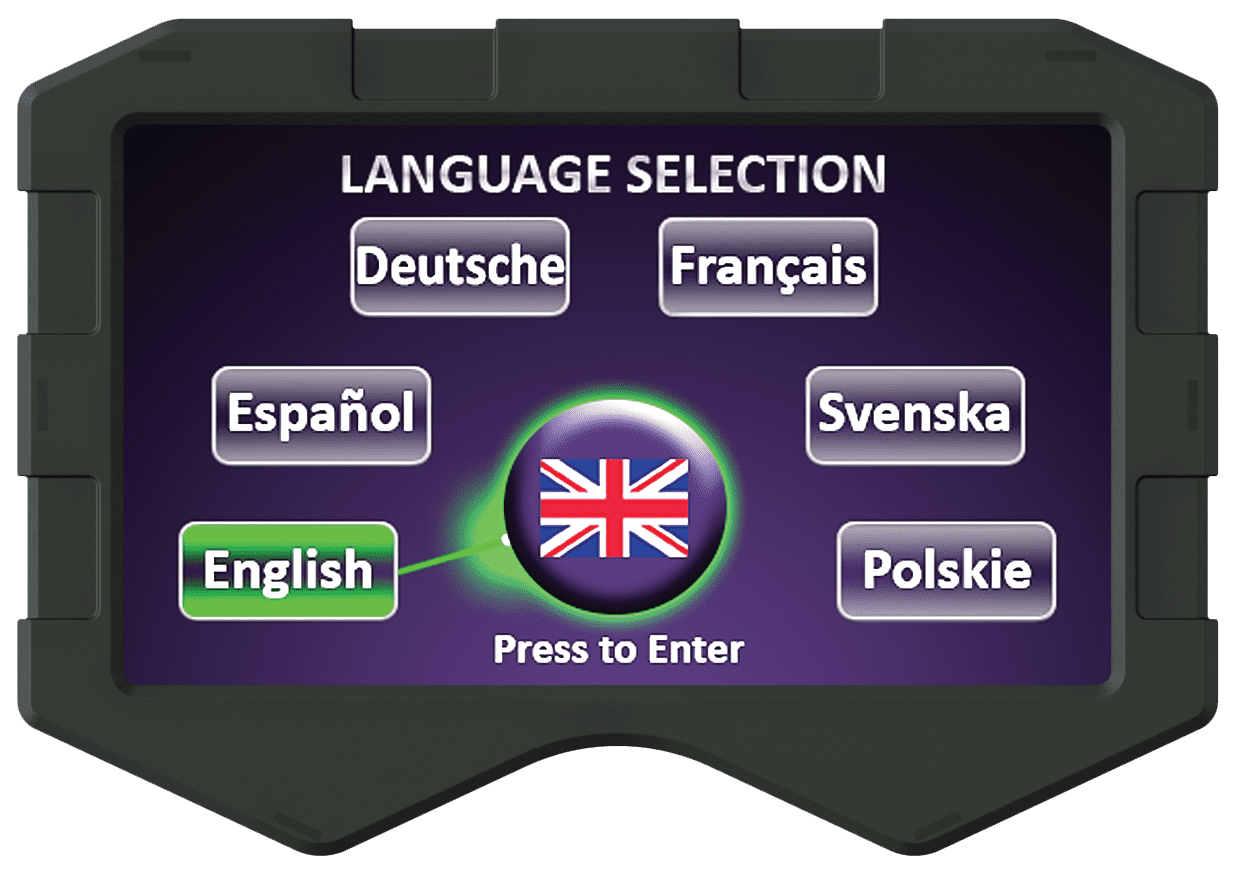

    • Large high quality colour screen with multi language easy to follow interface

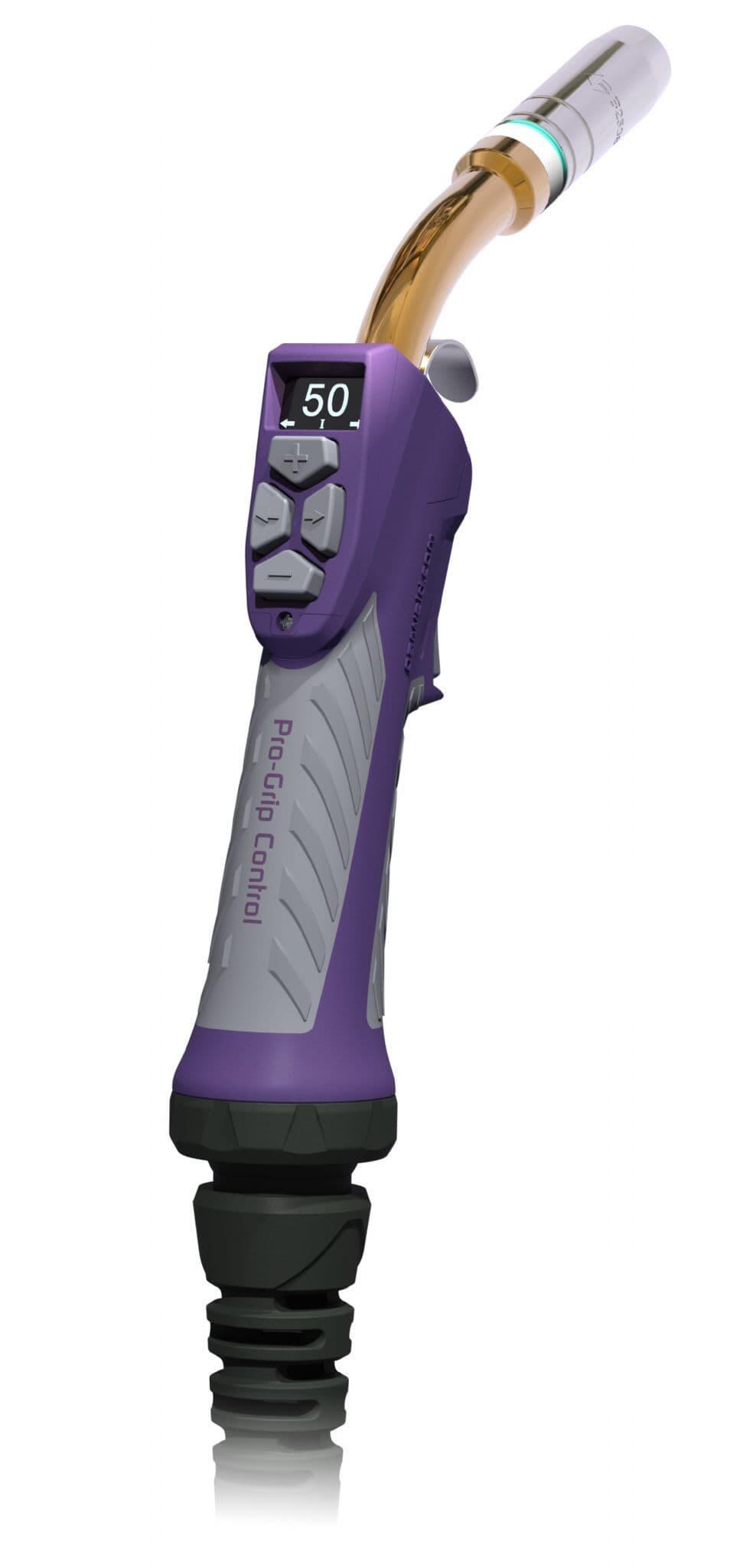

    • View and adjust machine parameters from the MIG torch handle
    • AC and DC HF start TIG
    • Rapid synergic setup for MIG,TIG & MMA
    • MIG weld down to 0.9mm thick material
    • Memory function for all processes to save and recall welding programs
    • Supplied with Parweld MB25 -3m Pro- Grip Max MIG torch,MMA lead set,input cable and 2 Gas hoses and regulator (P1 package)
    • Optional P2 package includes the above, plus Pro 26-4m TIG torch.
    • Pulse TIG function for superior arc control
    • Spool gun ready for aluminium welding
    • 5 Years return to base warranty - plus 3 an extra 3 Years (labour only)


     Technical Data

    StylePortable
    Machine TypeInverter MIG/TIG/MMA
    Voltage Range

    MIG 14.5 -24V

    TIG 10.4 -18.8V

    MMA 20.4 -28V

    Spool Size300mm (15kg) 200mm (5kg)
    Feed Box2 Roll
    Wire Size0.6-1.00mm
    Duty Cycle200A & 35%
    Input Voltage110V/230V (Smart Switching)
    Maximum Current140A/200A
    Input Current DC (EFF)

    MIG - 21.4A @ 110V/15A @230V

    TIG - 20.5    @ 110V/11.3A @230V

    MMA - 20.6  @ 110V/15.4A @230V

    Minimum Fuse Rating32A @ 110V/16A @230V
    KVA3.7
    Generator Size7 KVA
    Enclosure ProtectionIP23S
    Dimensions (L x w x H)615 x 275 x 495
    Weight27.8Kg

    OPERATORS MANUAL
