- Description

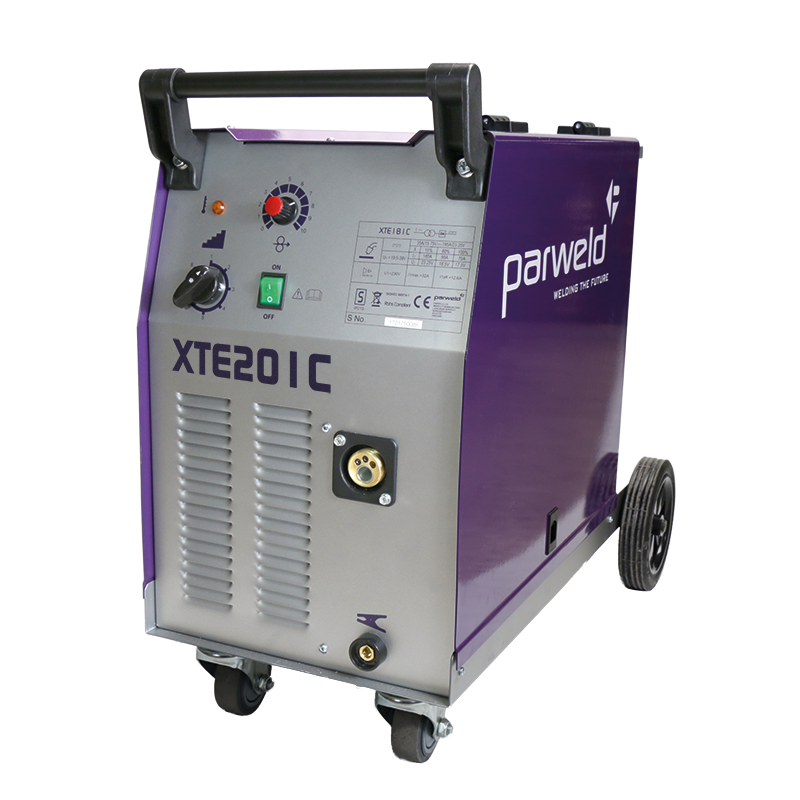

Parweld XTE201C MIG Welder – 205A Single-Phase Automotive MIG Welding Machine
The Parweld XTE201C MIG Welder is a robust, professional-quality 205A single-phase MIG welding machine designed for automotive repair, light fabrication, maintenance, general engineering and workshop applications. Built around a reliable transformer-based power source with an integrated wire feed system, the XTE201C combines straightforward operation with dependable MIG/MAG welding performance.
Operating from a 230V single-phase supply, the XTE201C provides up to 205A DC welding output and features eight selectable voltage settings, allowing the operator to fine-tune the welding arc for different materials and thicknesses. The machine is suitable for welding mild steel, stainless steel and aluminium when used with the appropriate wire and shielding gas. Parweld specifies a material capability from approximately 0.75mm to 6mm, depending on the application and welding setup.
Supplied with a free 3m MIG torch and regulator.
Features
- Bottle carrier
- Fan cooled
- Metal wire feeder
- On wheels
- Optimised performance for low amp welding
- Euro-connector
- 8 output settings
- Accepts 5kg or 15kg spools
- Accepts gas and gas-less wires
- Includes 3m MB 25 torch
- Includes regulator
- 2 year warranty
Technical Data
Maximum current 205A DC Wire feed speed 1.5-14mm/min Voltage 19.5-38V Spool size 300mm(15kg) Wire size 0.6 - 1.0mm Duty cycle 205A @ 15% Input voltage 230V 1P Input current (effective) 38A Minimum fuse size 32A Kva 8.75 Dimensions (LxWxH mm) 705 x 420 x 630 Weight (kg) 42.8 Recommended generator size 15 Kva Don't forget to check out our welding gloves:https://migtigarc.co.uk/welding-gloves--gauntlets-81-c
