Parweld XR942H Panoramic Welding Helmet

The XR942 Panoramic Welding and Grinding Helmet from Parweld. Features a Wide Panoramic ADF (180° Internal Vision) to improve peripheral vision, Active Shading Side Windows and Auto Mode to automatically set the shade selection of both the main window view and side windows. The XR942H also features TIS Mode, which slows lightening of ADF to reduce fatigue when undertaking High-Power Welding. Selectors include: Weld Cut Selector, Fast Selector Grind Mode and Manual Shade Adjustment.

Fast switching.

The auto on,auto darkening,wide view lens switches from light to dark in 1/30,000th of a second and offers continuous eye protection against UV and IR radiation,even when the lens is in the light state mode.The grinding switch is located on the outside of the helmet.The switch locks the filter in the light state (shade DIN 3) to enable the helmet to be used as a grinding visor.

Solar powered.

The helmet is powered by a solar cell with replaceable back up batteries.

Filters.

The welding filter has 4 sensors that react independently as the welding arc is struck enabling the most instantaneous darkening of the filter.

• 3 Year warranty
• Conforms to EN379,EN175,EN166,ANSI Z87.1
• Viewing area: 116mm x 81mm
• UV/IR Protection DIN 16
• Sensitivity: External variable
• Tack mode - rapid tacking with minimal delay
• Auto Mode - automatically finds the correct setting
• TIS Mode - reduces fatigue by gradually lightening
• Weight: 693g
• Dark state: Shade DIN 4-8 to DIN 9-14 variable
• Light state: DIN 4

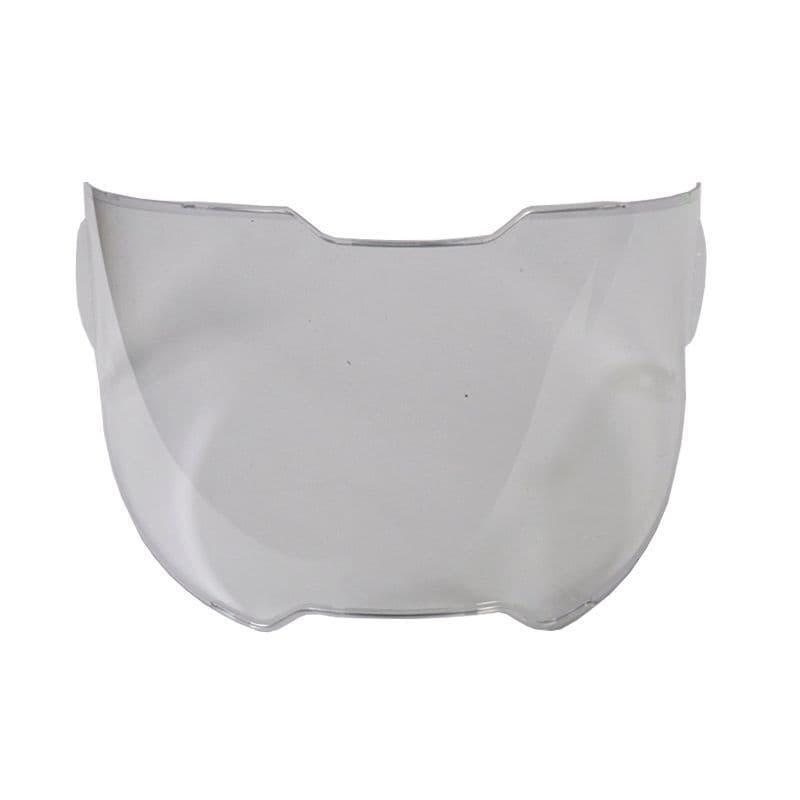

• Supplied with spare lenses

Technical Data
