- Description

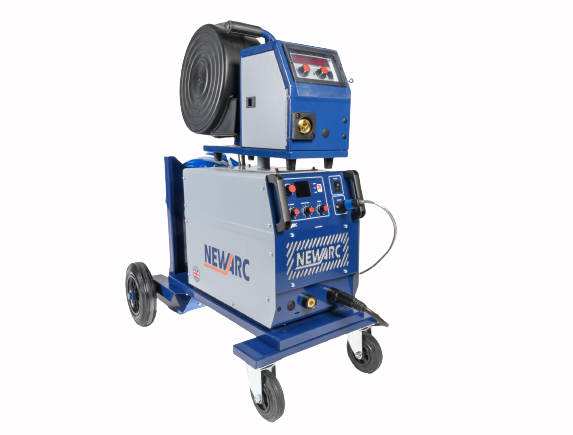

The Newarc 400A MIG package is designed for basic MIG/MAG welding in the medium to heavy fabrication industries. Thanks to its step less control and ease of set up, the parameters can be fine tuned offering quality welds.
This heavy duty 3 phase D.C inverter power source has been designed using the latest developments in power electronics. Electronic parts are enclosed in a separate sealed compartment for protection from the environment. This portable, versatile inverter power source responds to changes in the welding arc much faster than conventional machines resulting in a more stable and controllable weld pool. Due to the high efficiency and power factor these units provide energy and cost saving solutions. These machines are normally found in the hire industry due to their robustness.
Fitted with the MF37 PANEL Twin dial/digital display which features, burn back control, creep start, torch latch, wire inch, gas test. Crater fill, storage of multiple parameters.
Supplied with MB36-3m MIG torch, regulator, 5m intercon cable, MF37 display panel, trolley and 5m earth lead.
Features
- Made in Great Britain
- 4 Roll drive system
- 100 % Duty cycle
- Digital MF37 display
- Heavy duty wire spool holder for 5 and 15kg spools. Mechanical brake to prevent overrun
- Robust gas bottle holder and chain
- Inductance and arc trim
- Consumes less power
- Safety circuits to protect against over loading
- Output 20-400 amps
Technical Data
Power voltage (V) 380-480 Volts 3 Phase 50/60Hz Input current 24A Power consumption 18.5 KVA Recommended mains fuse 32A slow blow or type C MCB Mains cable 4x4.0mm2 flexible cable Power factor 0.95 Open circuit voltage 40V Max output current 400 amps Voltage control 2 - 40V infinitely variable Duty cycle (at 40 degrees) 400A @ 100% Insulation class F Dimensions 1060 x 530 x 970mm Weight @ 67KG Warranty 5 years
