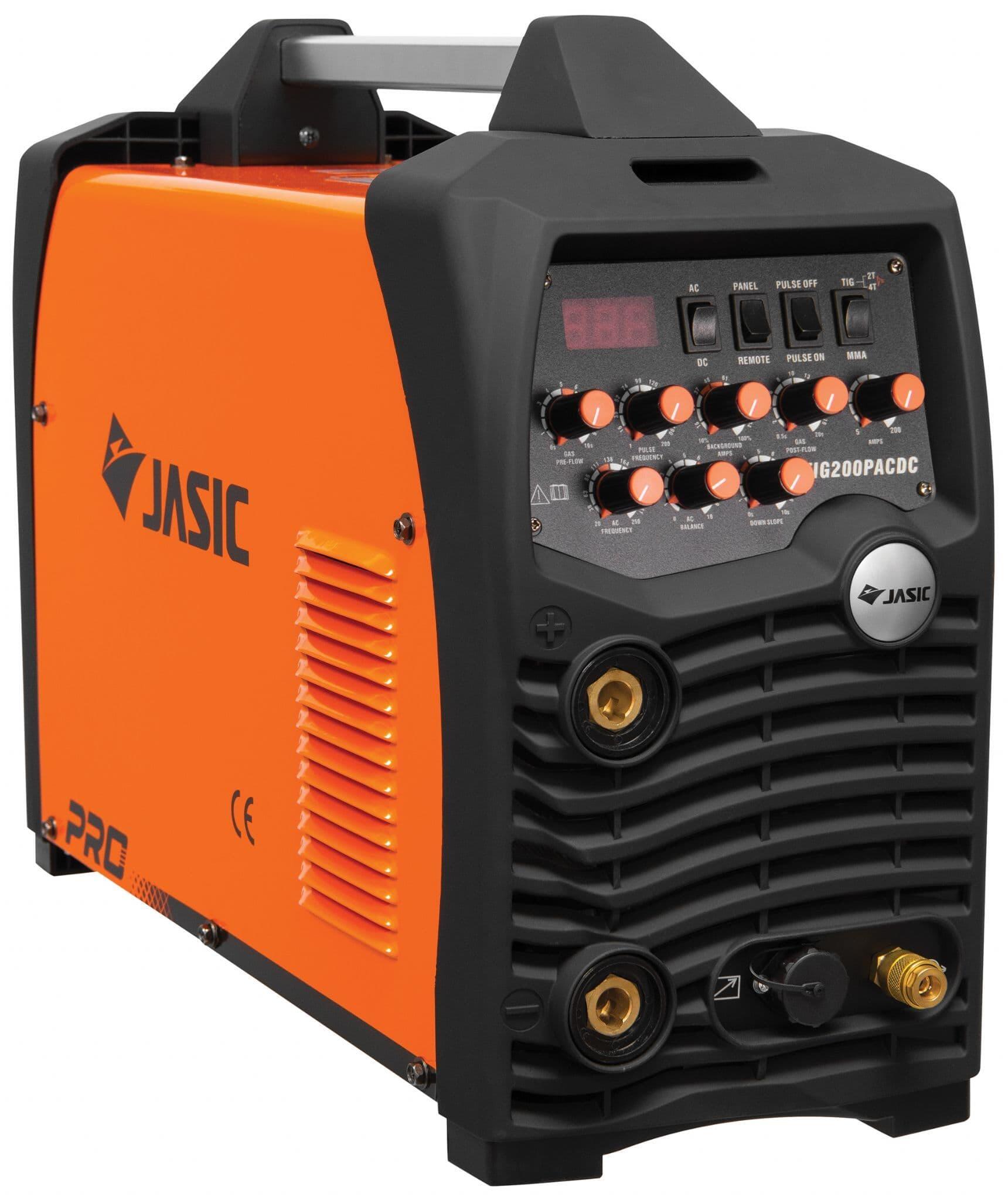

Jasic TIG 202A AC/DC Analog Pulse TIG Welder

Code
Jasic TIG 202A AC/DC Analog Pulse TIG Welder
Jasic TIG 202A AC/DC Analog Pulse TIG Welder
Jasic TIG 202A AC/DC Analog Pulse TIG Welder
Code
£0.00 £0.00(inc. VAT)
£1,055.00 £1,266.00(inc. VAT)
Save
Earn 0 reward points with this product.
  • Description

    Jasic TIG 202A Pulse/Analog AC/DC TIG Welder Precision Welding for Aluminium and Steel.

    The Jasic TIG 202A Pulse/Analog TIG Welder is a 230v AC/DC TIG inverter that delivers precise TIG welding on aluminium, mild steel, stainless steel, copper and titanium. Designed for both workshop and site use, its a solid choice for welders who want clean welds, full control, and simple analog settings  without the digital fluff.

    Equipped with pulse TIG functionality, this welder is perfect for welding thin aluminium and stainless steel sheet, reducing heat input and helping prevent burn-through. The HF arc start ensures a smooth ignition every time, while the intuitive analog interface gives you fast access to settings like pre-gas, start current, slope-up/down, pulse, and post-gas.

    Whether you're a professional fabricator or experienced welder, the Jasic 202A offers stable arc performance, solid build quality, and compatibility with generator power ideal for mobile jobs or workshop use.

                               Please call for a great deal ! 02392 295612

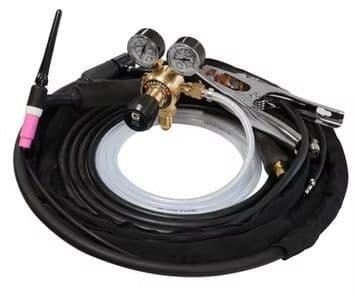

    Supplied complete with TIG torch, adaptor, gas regulator, work return lead and clamp.

    Standard functions/features

    • TIG pulse AC/DC with analog control
    • Digital display
    • MMA - arc  welding capability
    • Peak current control,2T/4T
    • Pre-post flow time, up/down slope
    • Pulse adjustment
    • Pulse frequency, pulse duty, arc force, cleaning width
    • Remote control interface
    • AC function for aluminium and aluminium alloys
    • DC TIG function for carbon steel
    • Copper and non ferrous metals
    • Smooth arc and stable welding performance
    • Heavy duty 35/50 twist and lock sockets
    • VRD function
    • AVR generator friendly

    5 YEAR WARRANTY

    Technical Data

    • Input voltage: AC 230V 50/60 Hz
    • Leff (A): 17
    • Input power (kVA) :7.1
    • Current range (A) MMA 10-160,TIG 5-200
    • Duty cycle @ 40 degrees C:MMA 160A @ 30% TIG 200A @ 25%
    • No load voltage (V): 65 (7V VRD)
    • Protection/insulation class:PS21S/B
    • Dimensions: (L x W x H mms) : 566 x 224 x405
    • Weight (Kg): 15

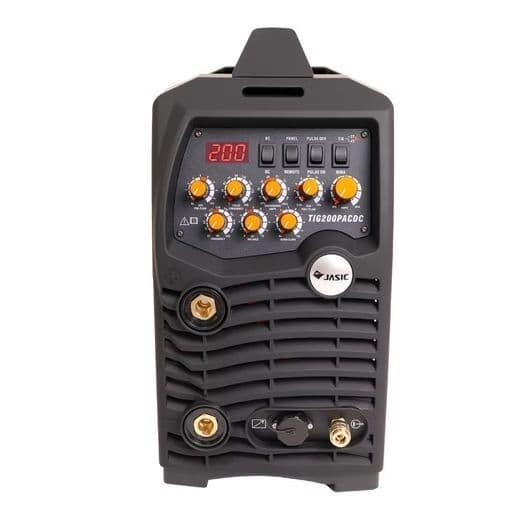

    Screenshot 2021-06-03 at 14.58.20.png


    1. Digital display
    2. AC/DC selection switch
    3. Local/remote switch
    4. TIG pulse switch
    5. Welding process switch
    6. Pre-flow gas control dial
    7. AC frequency control dial
    8. Pulse frequency control dial
    9. AC balance control dial
    10. TIG pulse background control dial
    11. Downslope time control dial
    12. Post-flow gas control dial
    13. Current control dial
