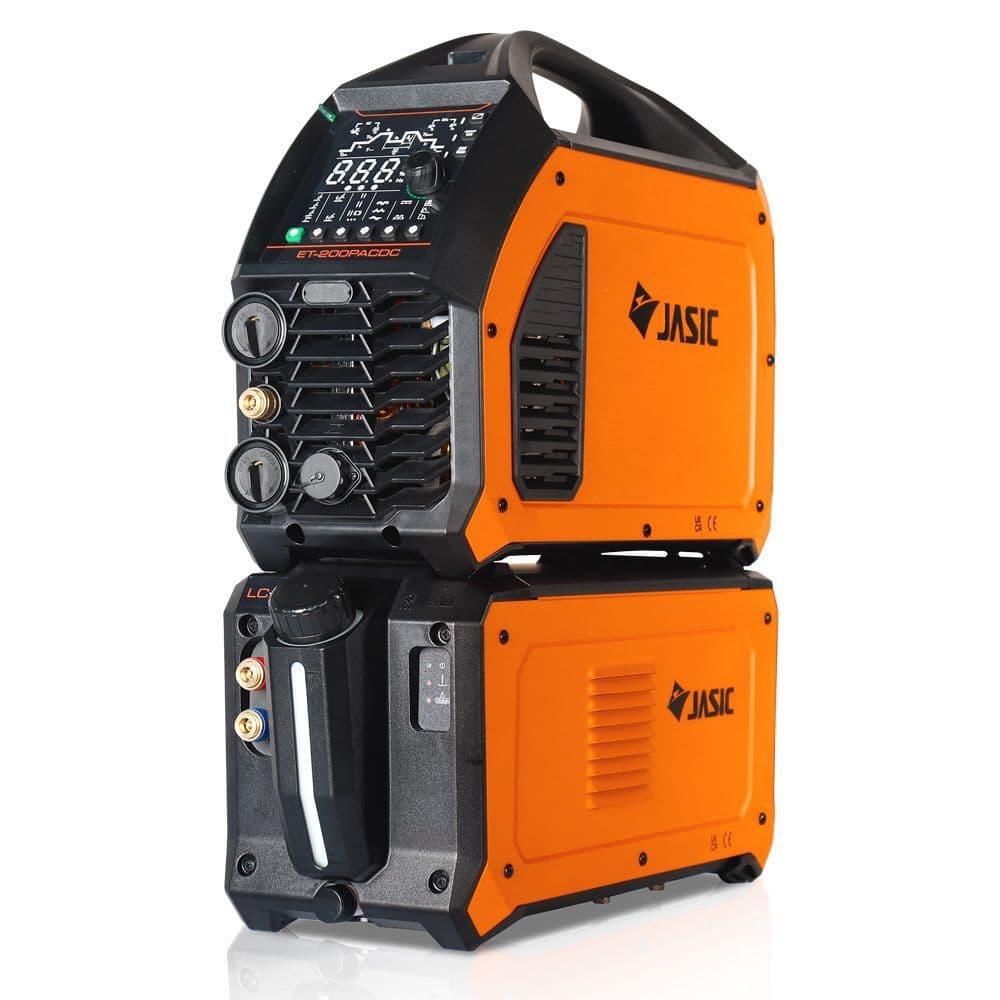

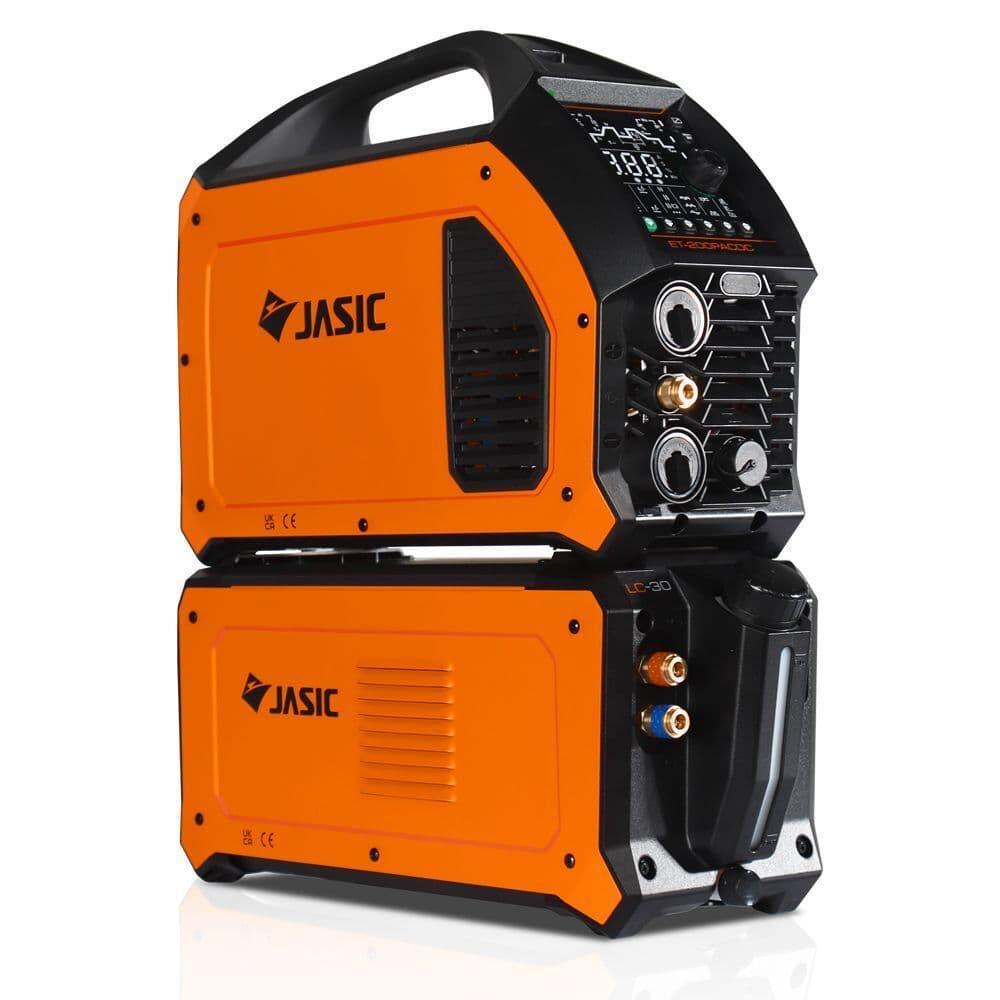

Jasic TIG 200P Evo 2 AC/DC Water Cooled TIG Welder

The Jasic Evo TIG 200PFC AC/DC water cooled TIG welder features advanced technology that provides excellent welding performance along with user experience. They provide a stable arc that is ideal for AC HF TIG, DC HF TIG, DC Lift TIG, pulse TIG and MMA which can weld carbon steel, low alloy steel, stainless steel, aluminium and other materials. Moreover, they offer many adjustable TIG and MMA functions and features that makes these machines very durable and robust for a wide range of welding applications.

The unique electrical structure and air passage design inside the machine increases the dissipation of heat generated by power devices, thus improving the duty cycle of the machine. The unique ClearVision display offers the operator clear and informative data for the welding process offered.

Key Features and Specifications:

• Welding processes: AC and DC HF TIG, Lift TIG and MMA
• Multiple AC output waveforms with mixed wave frequency
• Active Balancing Air Passage (ABAP)
• Power factor correction (PFC) and generator friendly - must have AVR

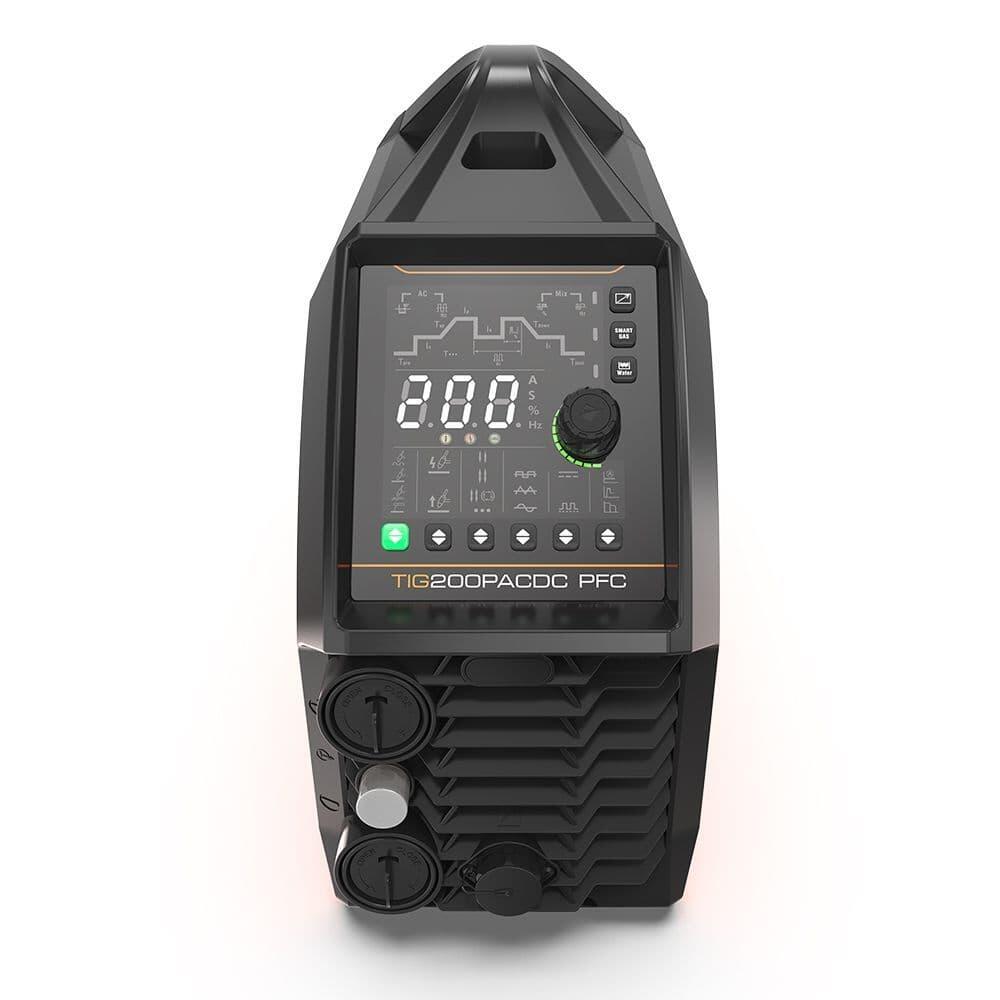

• ClearVision digital control user panel technology
• Dash arc, pre/post timers, up/down slope control, 2T/4T and smart gas control for optimising gas consumption
• Pulse control
• Quick factory reset function, auto sleep mode and voltage reduction device (VRD)
• Fan on demand
• Over current and overheat protection
• MMA features: arc force, hot start current and anti-stick, low splatter
• Parameters are saved on shutdown
• Wireless capable with optional remote devices
• Water cooled
• Supplied with a T18 flexi neck TIG torch
• 5 Year warranty

Performance Evaluation:

The Jasic EVO TIG 200P AC/DC PFC TIG welder is an excellent performer across various applications. Its dual AC/DC capabilities allow welders to work with a wide range of materials and thicknesses. The advanced pulse function and high-frequency start contribute to precise and clean welds, reducing rework and improving overall welding quality. Additionally, the PFC technology ensures energy efficiency, which is both cost-effective and environmentally friendly.

The digital display and remote control compatibility enhance the user experience, providing easy access to precise welding parameter adjustments and control. The efficient cooling system and generator compatibility make this welder suitable for demanding, continuous welding tasks.

The Jasic TIG 200P AC/DC PFC TIG welder is a highly versatile, efficient, and user-friendly welding machine suitable for both amateur and professional welders. Its advanced features, dual AC/DC capability, PFC technology, and portability make it a valuable addition to any welding operation. Whether you are working on thin materials, heavy-duty projects, or need to weld in remote locations, this welder offers the performance and flexibility to meet your needs.

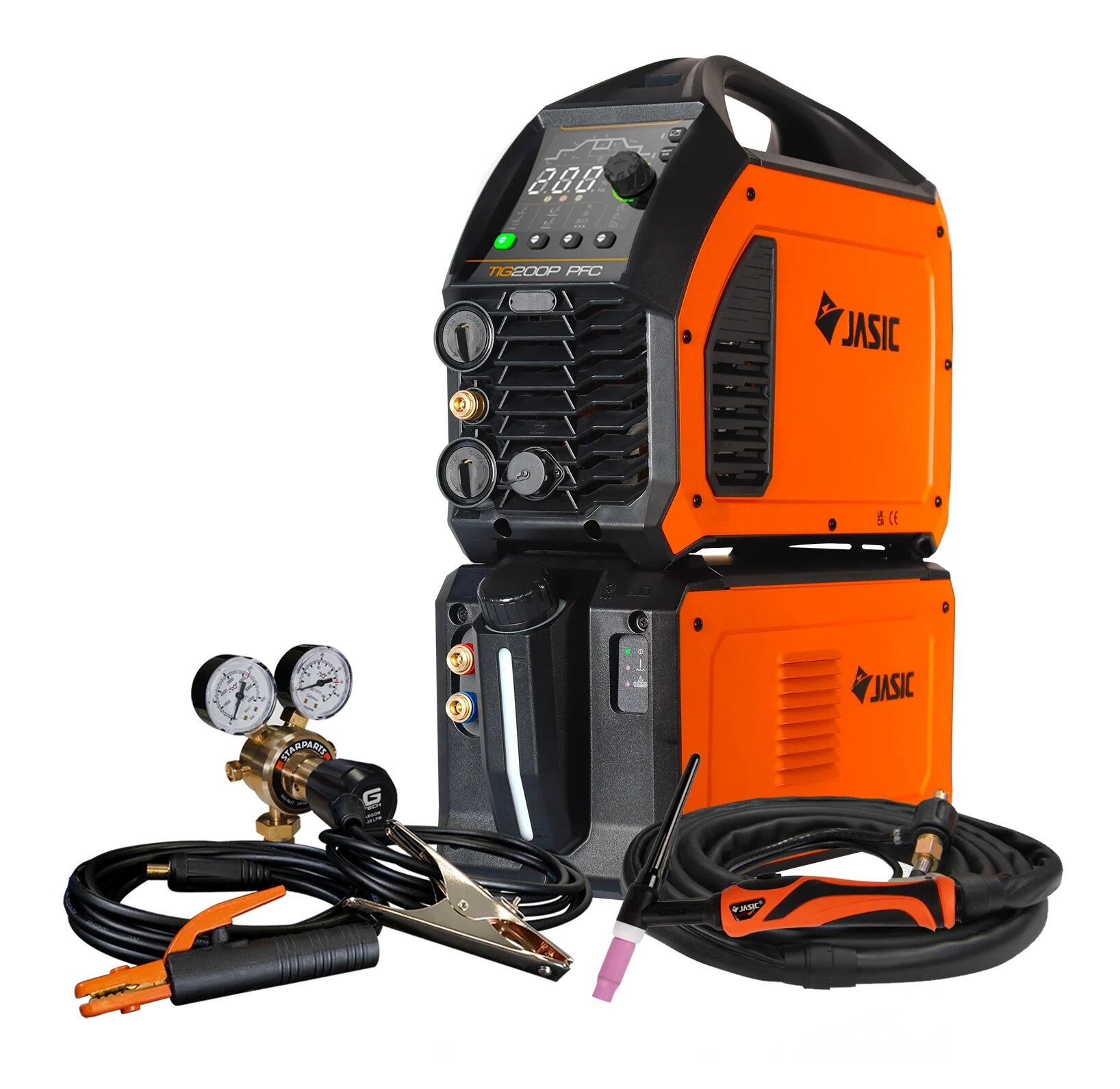

Supplied with 4m water cooled TIG torch, lead set, argon regulator and gas hose.
