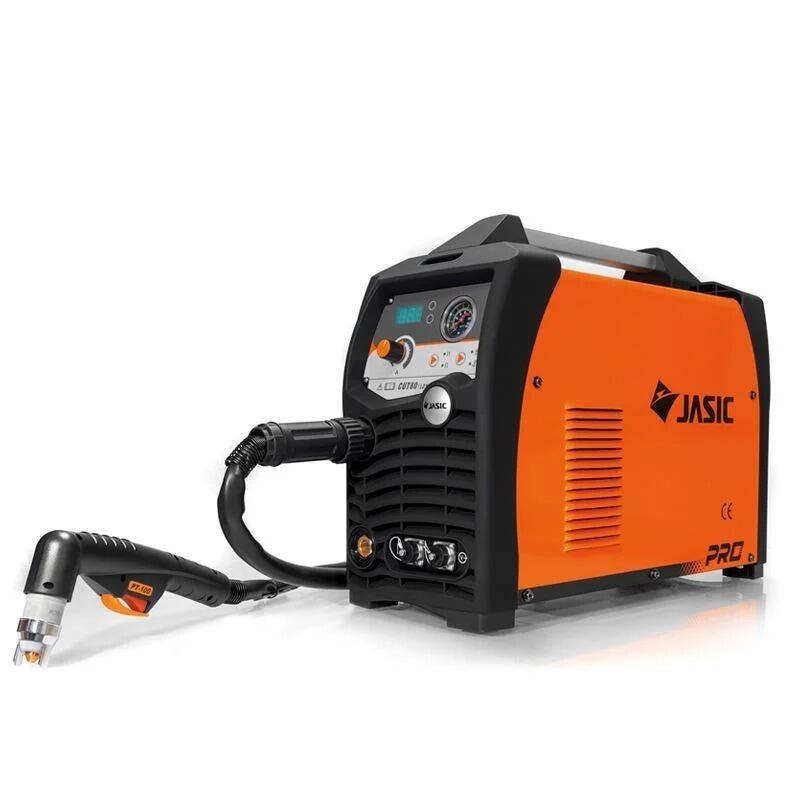

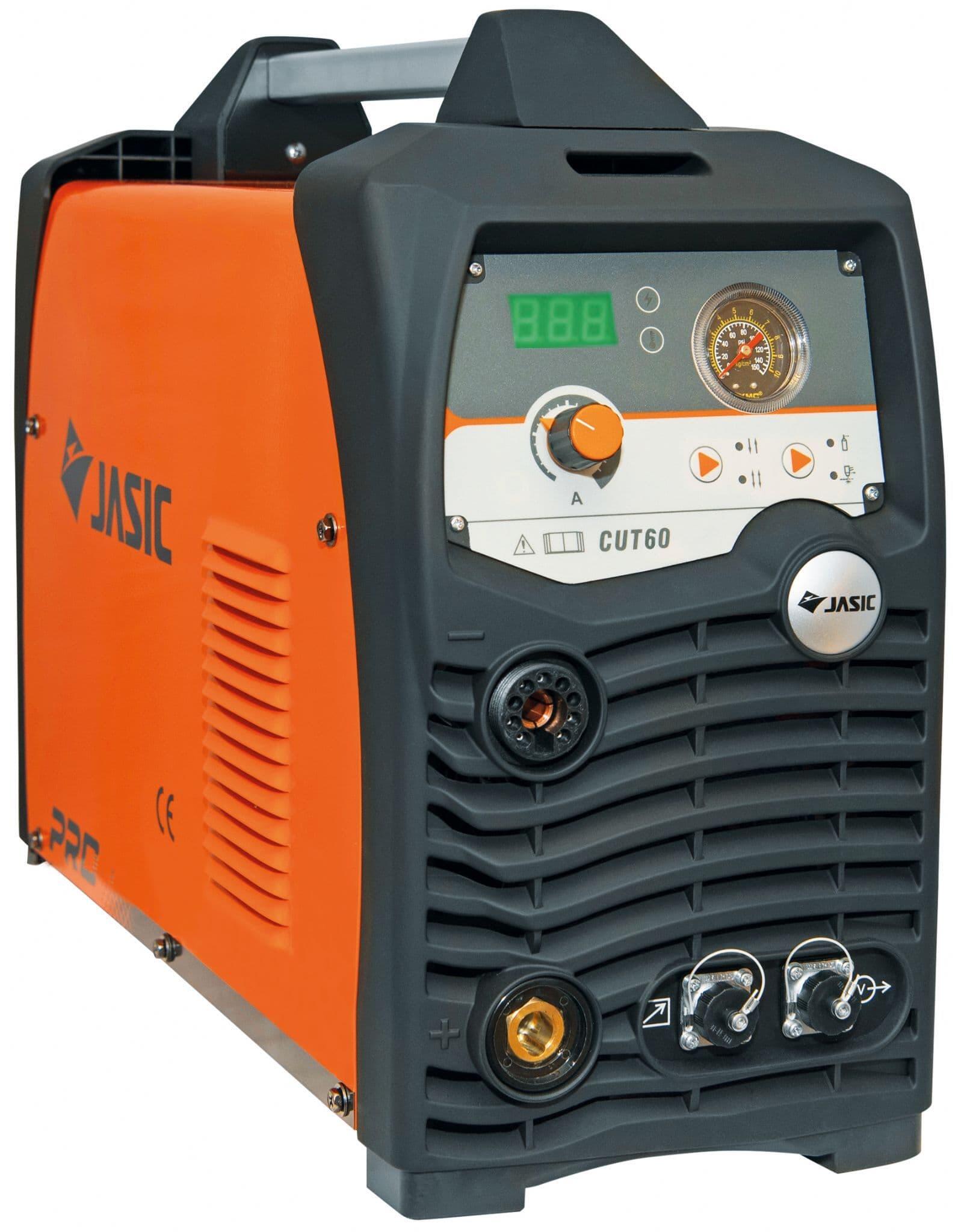

Jasic JP-61 Plasma Cutter

Jasic JP-61 Plasma Cut 60 Plasma Cutter

The Jasic JP-61 Plasma Cut 60 is a professional 60A plasma cutter designed for fast, accurate and reliable cutting in fabrication workshops, engineering environments and industrial applications. Using advanced IGBT inverter and PWM technology, the JP-61 delivers a smooth, stable plasma arc and precise cutting performance in a compact and robust package.

With a 20–60A adjustable cutting current, the Jasic JP-61 provides a clean cutting capacity of up to 20mm on mild steel and a severance capacity of 25mm. It can be used to cut a range of electrically conductive metals, including mild steel, stainless steel, aluminium, copper and cast iron.

The JP-61 features non-HF plasma arc ignition, helping to reduce electromagnetic interference, together with variable cutting control and a digital LED ammeter for accurate current adjustment. An integrated air pressure gauge and regulator make setup straightforward, while the supplied 6m PT100 plasma torch provides excellent reach around larger workpieces.

For fabrication and automated cutting applications, the Jasic JP-61 includes a CNC connection as standard, allowing it to be integrated with compatible plasma cutting tables. Its 2T/4T cutting modes provide additional control for different cutting applications, while the machine is also generator-friendly when used with a generator featuring regulated output.

Key specifications

• 60A maximum plasma cutting output
• 20–60A adjustable cutting current
• 20mm clean cutting capacity
• 25mm severance cutting capacity
• 400V three-phase input
• Advanced IGBT inverter technology
• PWM technology for efficient power conversion
• Non-HF plasma arc ignition
• Variable cutting control
• Digital LED ammeter
• Built-in air pressure gauge and regulator
• CNC connection for automated cutting
• 2T/4T cutting operation
• 6m PT100 plasma cutting torch supplied
• Suitable for mild steel, stainless steel, aluminium, copper and cast iron
• Generator-friendly with regulated output
• 85% efficiency
• 0.9 power factor
• IP21S protection rating
• 555 × 210 × 415mm
• 14.5kg

5 Year warranty

Benefits

• Lightweight
• Variable cutting
• 20mm mild steel cut
• 3 phase
• 6m quick connect torch
• Non HF ignition
• LED display
• AVR generator friendly

Please call us for a great deal ! 02392 295612

Supplied with Plasma torch and earth return lead.

Please click here for consumables
