- Description

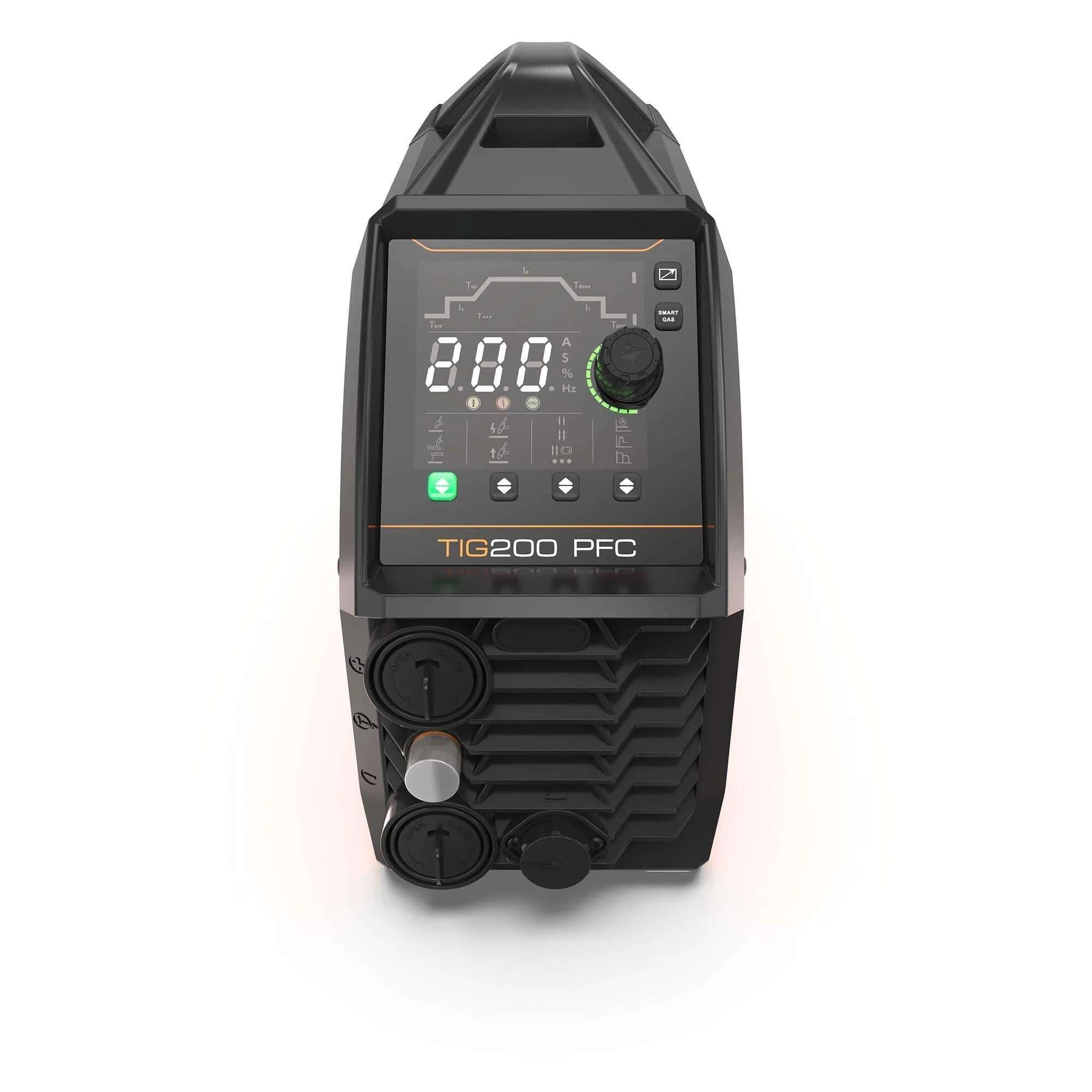

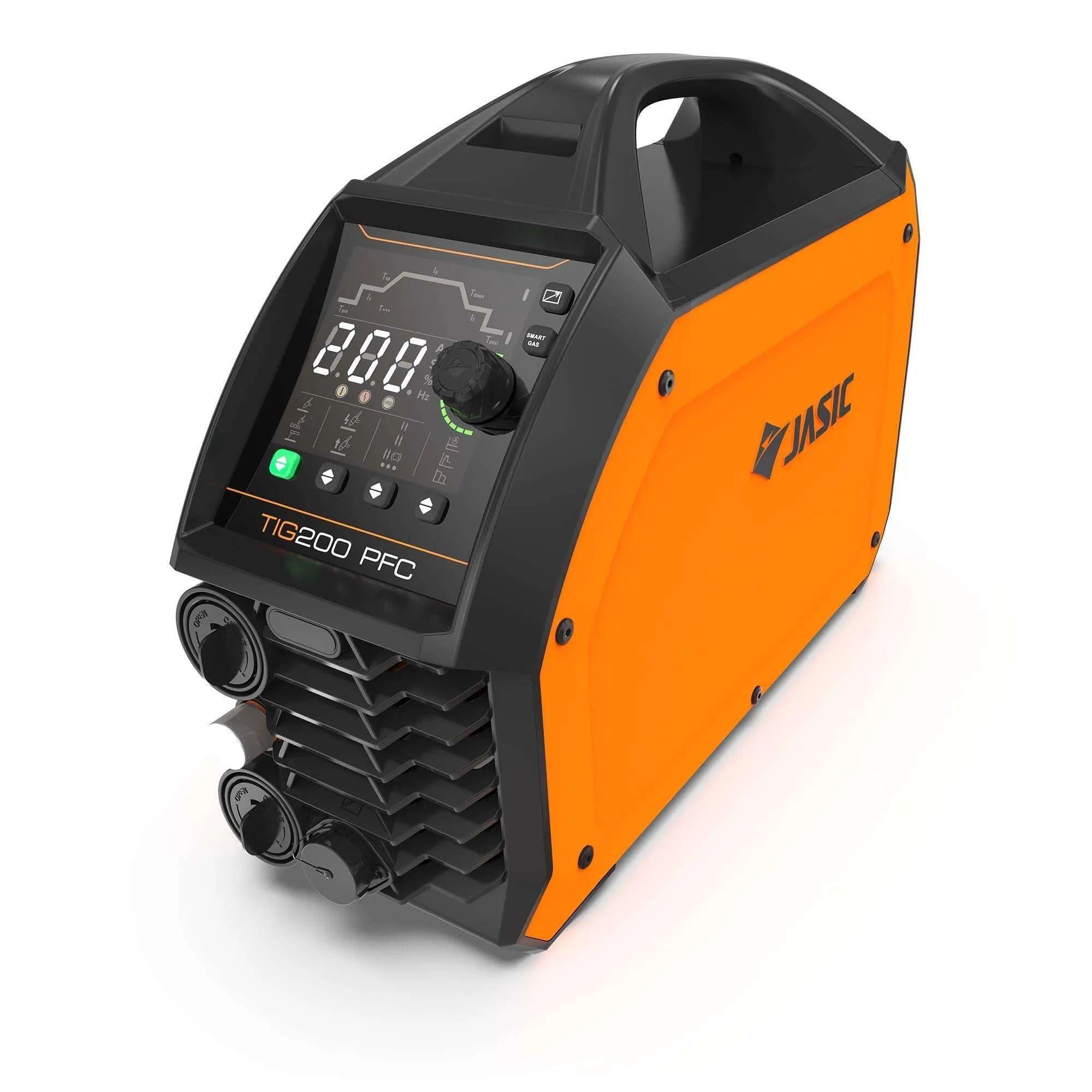

The Jasic ET-200 PFC DC TIG Welder is a lightweight, high-performance TIG / MMA inverter welder designed for both workshop and field use. Featuring advanced power factor correction (PFC) and a wide input voltage range, it delivers stable, reliable welding under varying power conditions ideal for professionals, fabricators, and serious hobbyists.
Key Features
Wide Voltage Input & Generator Friendly Operates from AC 95-265V at 50/60 Hz; suitable for use with AVR (Automatic Voltage Regulator) generators.
TIG + MMA Modes Delivers TIG welding from 5-200A (depending on input voltage), and MMA (stick) welding also supported.
Power Factor Correction (PFC) Improves efficiency, reduces energy waste, and supports smooth operation even with fluctuating mains voltage.
Smart Features for Usability
Smart Lift TIG for easier arc start with HF start ignition.
Dash-Arc technology for consistent, high-quality arc ignition.
Smart Gas flow control to save on shielding gas consumption.Protective & Safety Features IP23S protection class, over current and overheat protection, voltage reduction device (VRD) in MMA mode, fan-on-demand cooling.
Supplied with 4m TIG torch, lead set, argon regulator, gas hose and carry case.
Input voltage AC 115V AC230V No load voltage 68V 68V TIG Rated input current 29.7A 19.5A TIG Leff 14.9A 9.8A TIG Rated input power 3.4kVA 4.5kVA TIG Current range DC:5-160A
DC:5-200A
TIG Rated duty cycle @40 deg 25% 25% MMA Rated input current 31.6A 25.6A MMA Leff 15.8A 12.8A MMA Rated input power 3.7kVA 5.9kVA MMA Current range 10-120A 10-180A MMA Rated duty cyle @ 40 deg 25% 25% Efficiency 84% 84% Power factor 0.99 0.99 Idle state power < 33W <33W Protection class IP23S IP23S Insulation class H H Dimensions 453 x 150 x 313 mm Weight 8.97Kg Recommended generator size 5kVA 7kVA
