Code
EM-250CT
£0.00
£0.00(inc. VAT)
£1,299.00
£1,558.80(inc. VAT)
- Description

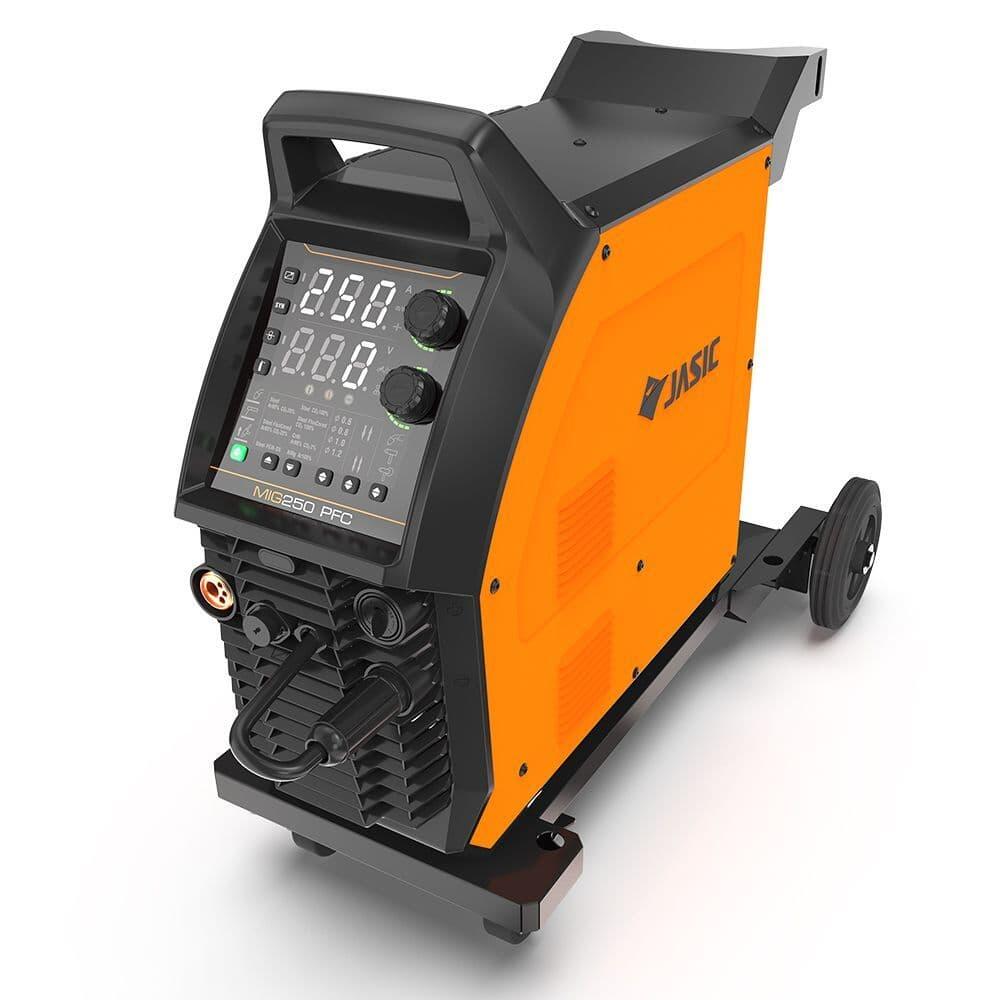

The Jasic EVO EM-250CT PFC MIG welder is the larger workshop version which will take a 15kg spool. This inverter based MIG features advanced technology that provides excellent welding performance along with user experience. It provides a stable arc that is ideal for MIG, DC Lift TIG and MMA which can weld carbon steel, low alloy steel, stainless steel and other materials. The unique ClearVision display offers clear and informative data for the welding process offered.
Key Features and Specifications:
- Std/Synergic MIG, MMA and DC Lift TIG
- PFC power factor correction
- Auto compensation for mains fluctuations

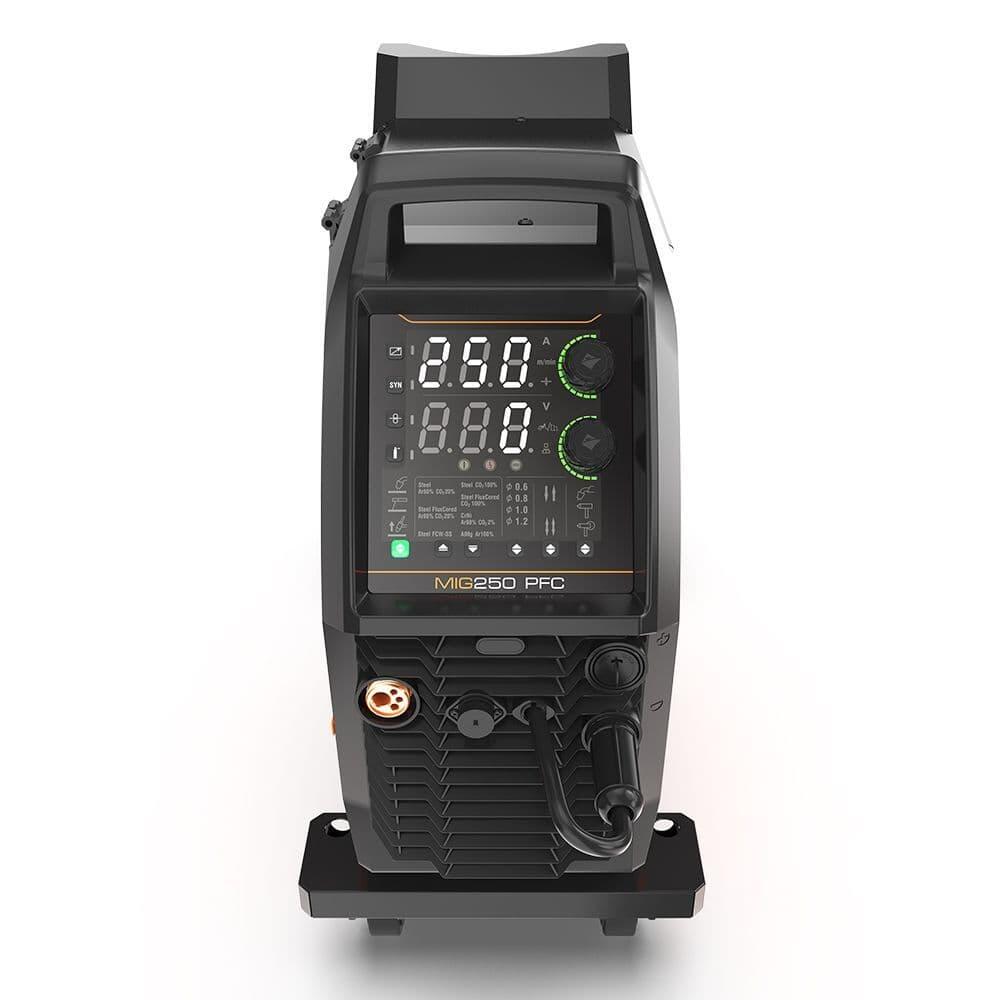

- ClearVison digital control user panel
- MIG features dial in plate thickness and weld
- TIG feature that include, pre/post gas timers, down slope and 2T/4T latching
- VRD voltage reduction device and auto sleep mode
- Fan on demand to reduce power consumption
- MMA features: arc force, hot start current and anti-stick that offers easy starting
- Parameters are automatically saved on shutdown
- Optional wireless remote control is available
- Four roll drive
- Generator friendly (must have AVR)
- 5 Year warranty

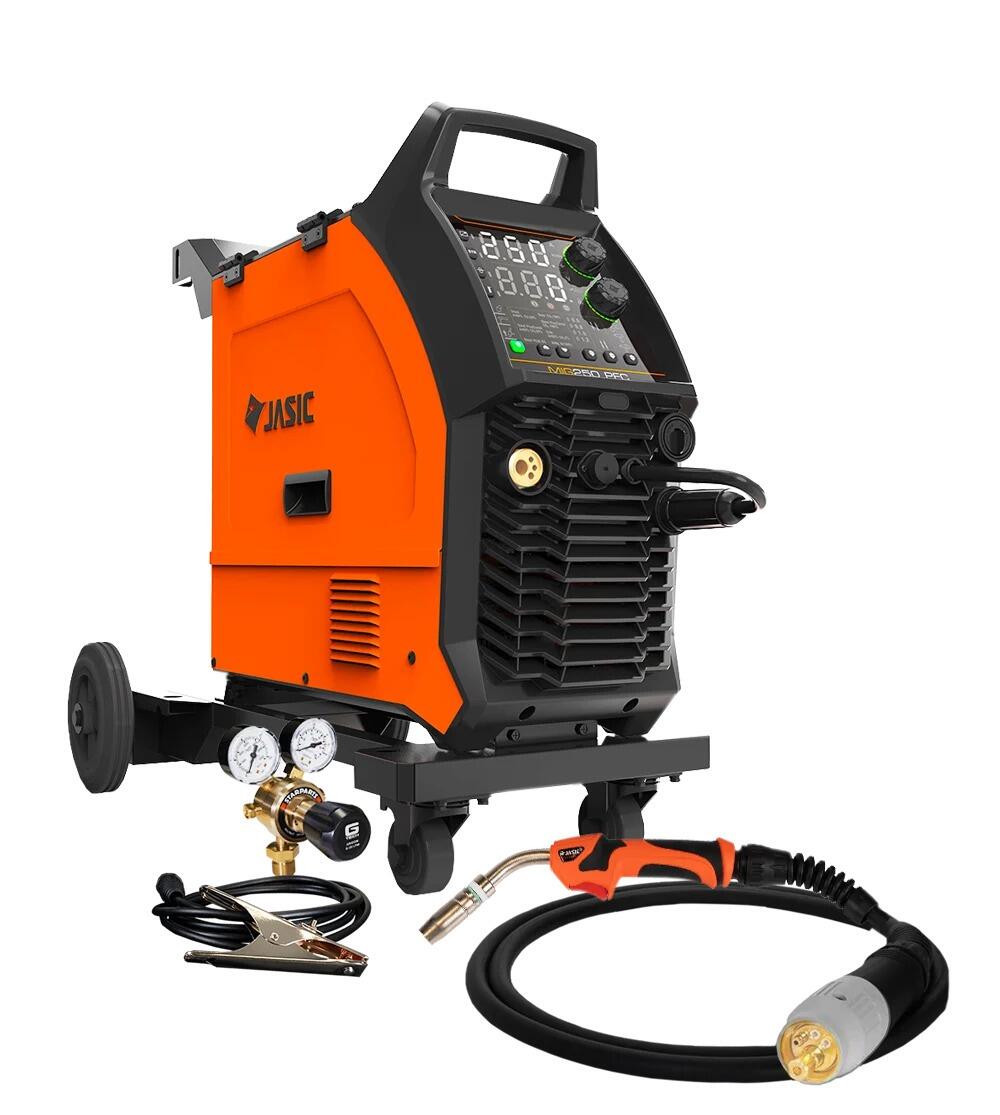

Supplied with 3m MIG torch, regulator, earth lead and gas hose.
Please call us for a great deal ! 02392 295612
AC115V AC230V No load voltage 70V 70V MIG Rated current input 53.2A 44.9A MIG Leff 19A 18.5A MIG Rated input power 6.1kVa 10.3kVa MIG Current range 30-160A 30-250A MIG Rated duty cycle @40 deg 30% 30% MIG Wire feed speed 2-14m/min 2-18m/min MIG Wire spool size 15kg 15kg MMA Rated input current 33A 32.2A MMA Leff 18.1A 17.6A MMA Rated input power 3.8kVa 6.9kVa MMA Current range 20-125A 20-220A MMA Rated duty cycle @ 40 deg 30% 30% TIG Rated input current 29.1A 26.5A TIG Leff 15.9A 14.5A TIG Rated input power 3.3kVa 6.1kVa TIG Current range 5-160A 5-250A TIG Rated duty cycle @ 40 deg 30% 30% Efficiency 80% 80% Power factor 0.99 0.99 Idle state power <50W <50W Protection class IP23S IP23S Insulation class H H Dimensions L x W x H 920 x 480 x 755mm Weight 41.9kg Recommended generator size (must have AVR) 9kVa 15.5kVa
