Code
EM-200CT
£0.00
£0.00(inc. VAT)
£1,189.00
£1,426.80(inc. VAT)
- Description

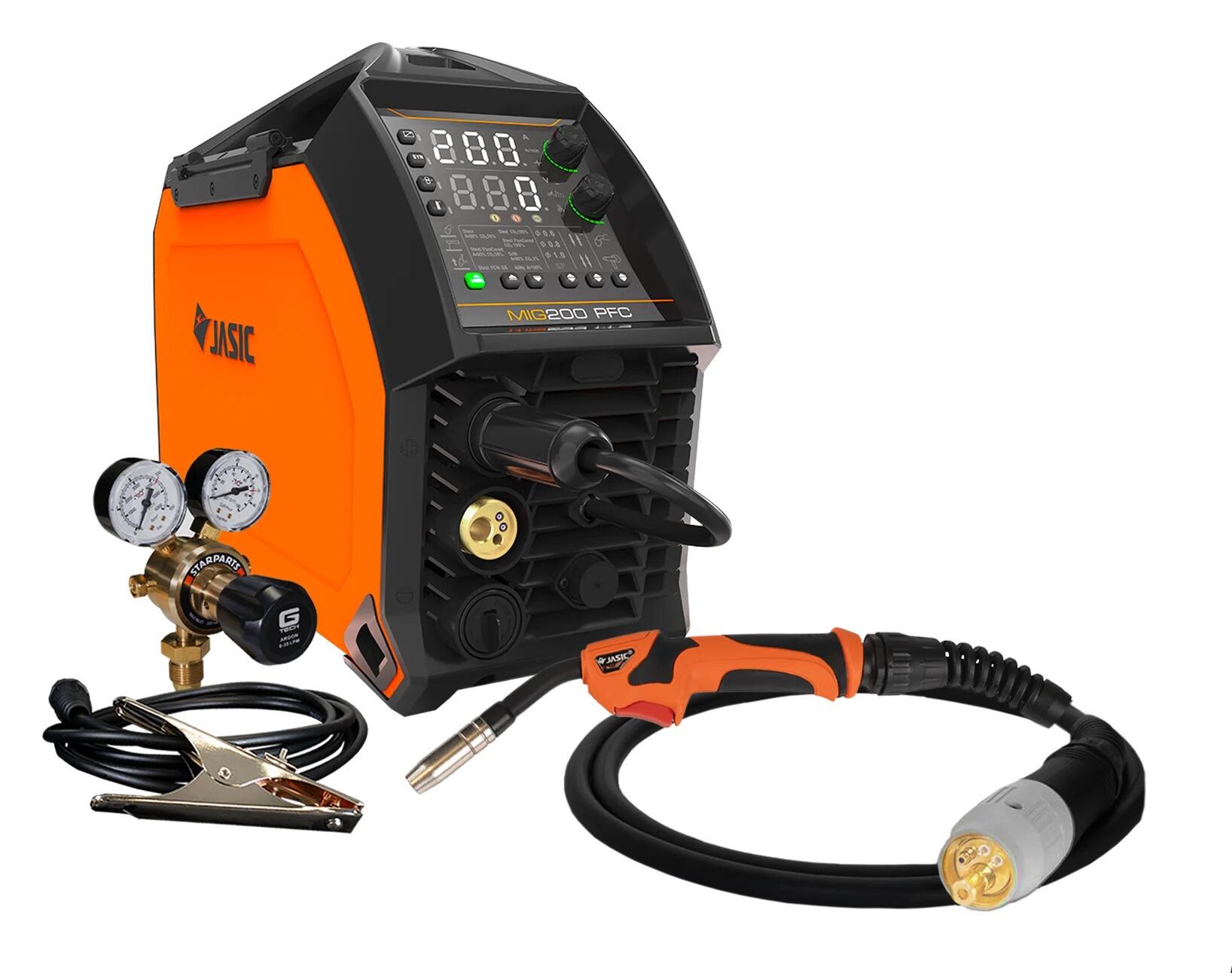

The Jasic EVO EM-200CT PFC MIG is the larger workshop version which will take a 15kg spool. This inverter based MIG features advanced technology that provides excellent welding performance along with user experience. It provides a stable arc that is ideal for MIG, DC Lift TIG and MMA which can weld carbon steel, low alloy steel, stainless steel and other materials. The unique ClearVision display offers clear and informative data for the welding process offered.
Key Features and Specifications:
- Std/Synergic MIG, MMA and DC Lift TIG
- PFC power factor correction
- Auto compensation for mains fluctuations

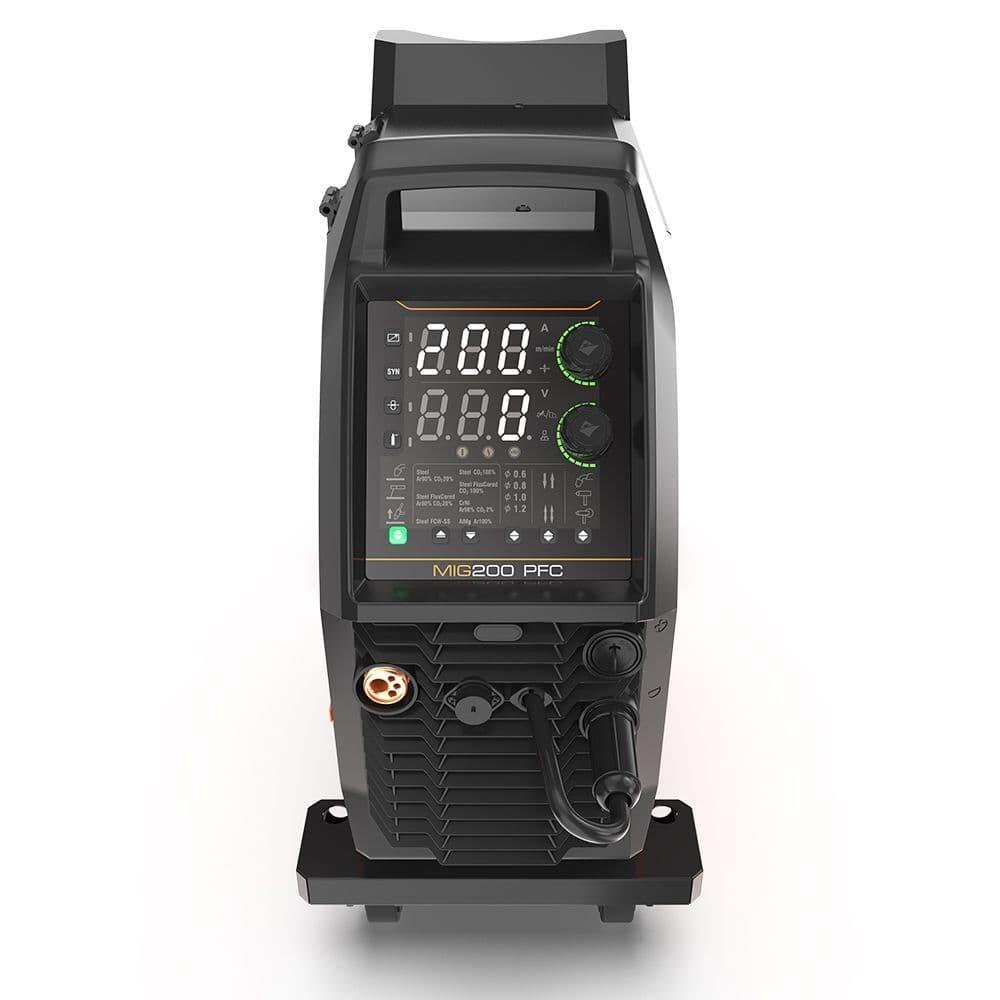

- ClearVison digital control user panel
- MIG features dial in plate thickness and weld
- TIG feature that include, pre/post gas timers, down slope and 2T/4T latching
- VRD voltage reduction device and auto sleep mode
- Fan on demand to reduce power consumption
- MMA features: arc force, hot start current and anti-stick that offers easy starting
- Parameters are automatically saved on shutdown
- Optional wireless remote control is available
- Generator friendly (must have AVR)
- 5 Year warranty
Supplied with 3m MIG torch, regulator, earth lead and gas hose.
Please call us for a great deal ! 02392 295612
AC115V AC230V No load voltage 68V 68V MIG Rated current input 38.1A 32.8A MIG Leff 17.4A 13.5A MIG Rated input power 4.4kVa 7.5kVa MIG Current range 30-140A 30-200A MIG Rated duty cycle @40 deg 30% 30% MIG Wire feed speed 2-12m/min 2-16m/min MIG Wire spool size 15kg 15kg MMA Rated input current 28.3A 24.8A MMA Leff 15.5A 13.6A MMA Rated input power 3.2kVa 5.7kVa MMA Current range 20-110A 20-180A MMA Rated duty cycle @ 40 deg 30% 30% TIG Rated input current 24.2A 19.43A TIG Leff 13.3A 10.6A TIG Rated input power 2.8kVa 4.4kVa TIG Current range 5-140A 5-200A TIG Rated duty cycle @ 40 deg 30% 30% Efficiency 80% 80% Power factor 0.99 0.99 Idle state power <50W <50W Protection class IP23S IP23S Insulation class H H Dimensions L x W x H 920 x 480 x 755mm Weight 41.9kg Recommended generator size (must have AVR) 6.5kVa 11.5kVa
