- Description
The Jasic MIG 200 PFC inverter welding machine features advanced technology that provides excellent welding performance along with user experience. It provides a stable arc that is ideal for MIG, DC Lift TIG and MMA which can weld carbon steel, low alloy steel, stainless steel and other materials. Moreover, it offers many adjustable MIG and MMA functions and features that makes this machine very durable and a robust machine for a wide range of welding applications. The unique electrical structure and air passage design inside the machine increases the dissipation of heat generated by power devices, thus improving the duty cycle of the machine. Benefitting from the unique air passage, the equipment can effectively prevent damage to power devices and control circuits from dust drawn in by the fan, thus greatly improving the reliability of the equipment. The unique ClearVision display offers the operator clear and informative data for the welding.
Key Features and Specifications:
- Std/Synergic MIG, MMA and DC Lift TIG
- PFC power factor correction
- Auto compensation for mains fluctuations
- ClearVison digital control user panel
- MIG features dial in plate thickness and weld
- TIG feature that include, pre/post gas timers, down slope and 2T/4T latching
- VRD voltage reduction device and auto sleep mode
- Fan on demand to reduce power consumption
- MMA features: arc force, hot start current and anti-stick that offers easy starting
- Parameters are automatically saved on shutdown
- Optional wireless remote control is available
- Generator friendly (must have AVR)
- 5 Year warranty

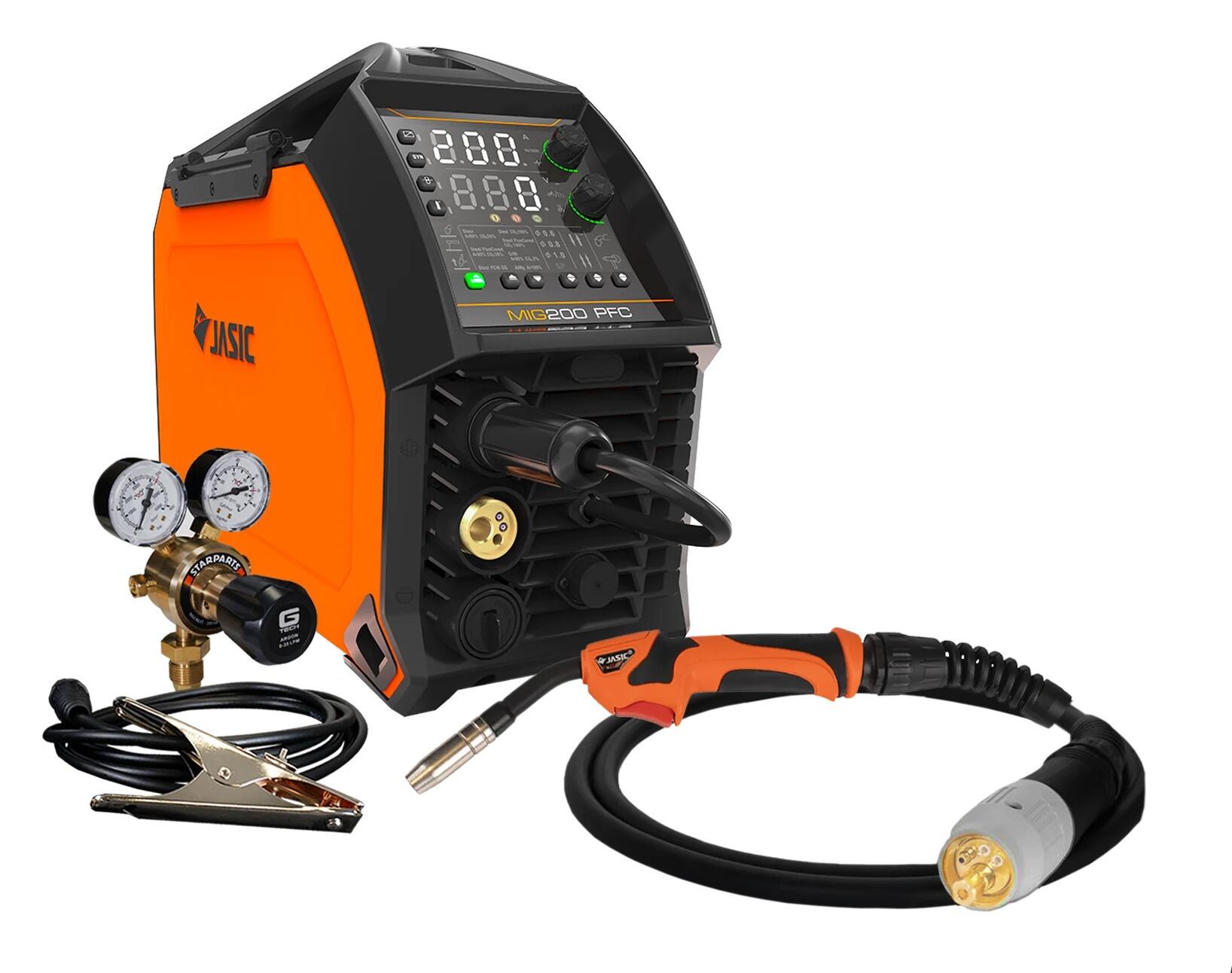

Supplied with 3m MIG torch, regulator, earth lead and gas hose.
Please call us for a great deal ! 02392 295612
Input voltage AC115V AC230V No load voltage 67V 67V MIG Rated current input 41.8A 38.3A MIG Leff 17.4A 13.5A MIG Rated input power 3.68kVa 5.74kVa MIG Current range 30-140A 30-200A MIG Rated duty cycle @40 deg 25% 25% MIG Wire feed speed 2-13m/min 2-15m/min MIG Wire spool size D200 D200 MMA Rated input current 28.5A 25A MMA Leff 15.5A 13.6A MMA Rated input power 3.28kVa 5.77kVa MMA Current range 20-110A 20-180A MMA Rated duty cycle @ 40 deg 25% 25% TIG Rated input current 23.7A 19.1A TIG Leff 13.3A 10.6A TIG Rated input power 2.79kVa 4.43kVa TIG Current range 5-140A 5-200A TIG Rated duty cycle @ 40 deg 25% 25% Efficiency 84% 84% Power factor 0.99 0.99 Idle state power <50W <50W Protection class IP23S IP23S Insulation class H H Dimensions L x W x H 565 x 220 x415mm Weight 16kg Recommended generator size (must have AVR) 5.5kVa 8.5kVa Don't forget to check out our welding gloves: https://migtigarc.co.uk/welding-gloves--gauntlets-81-c
