- Description

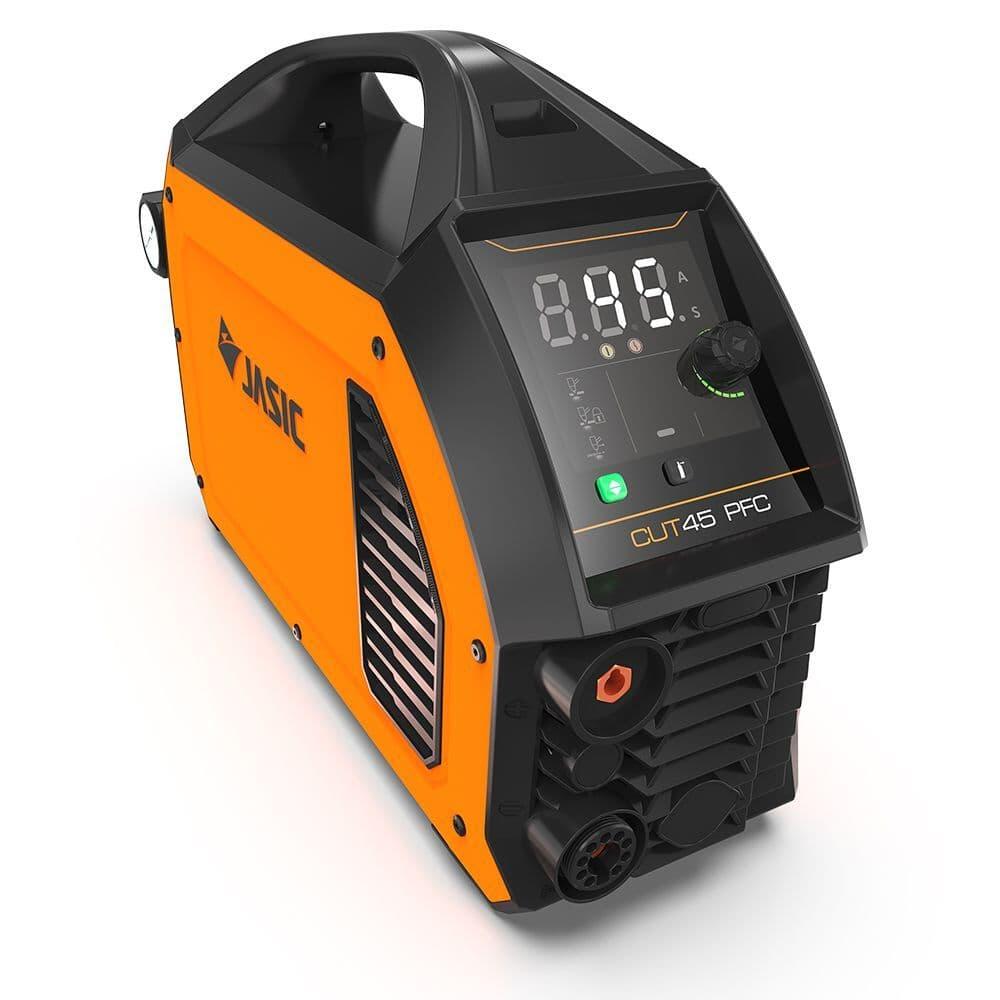

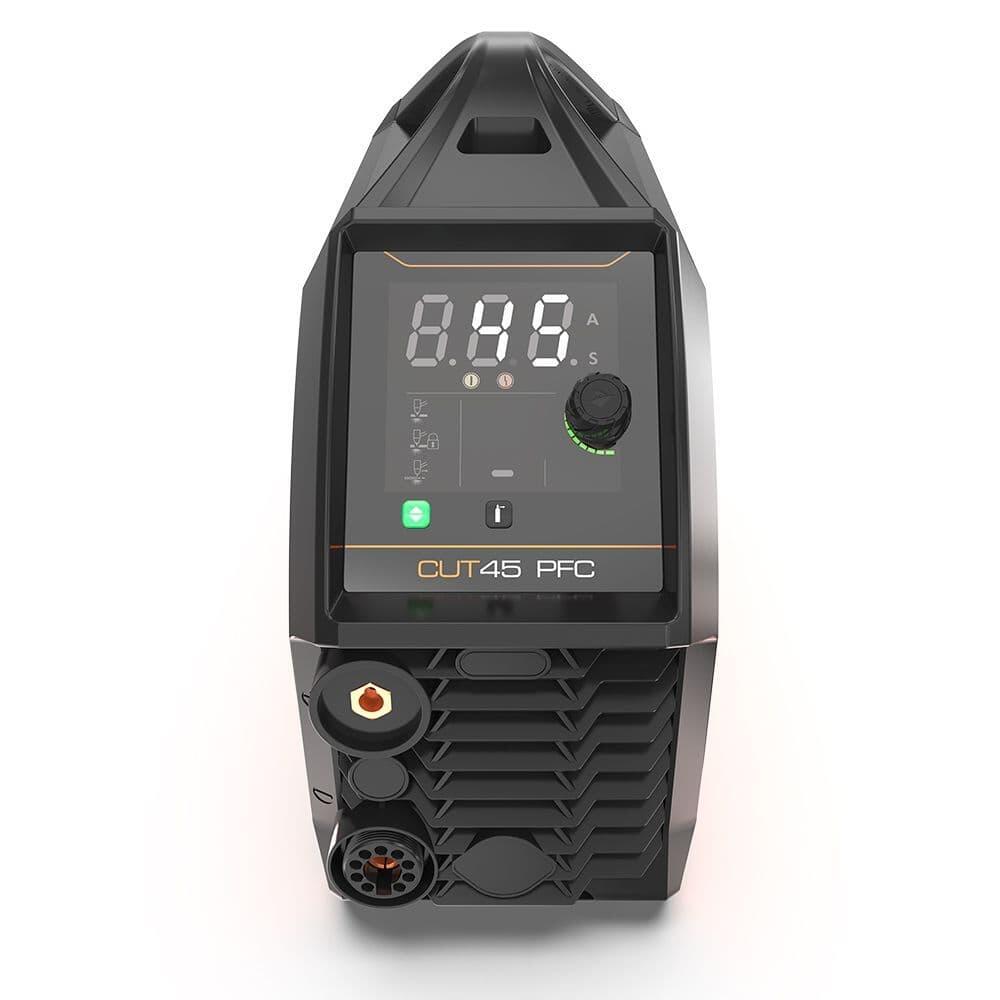

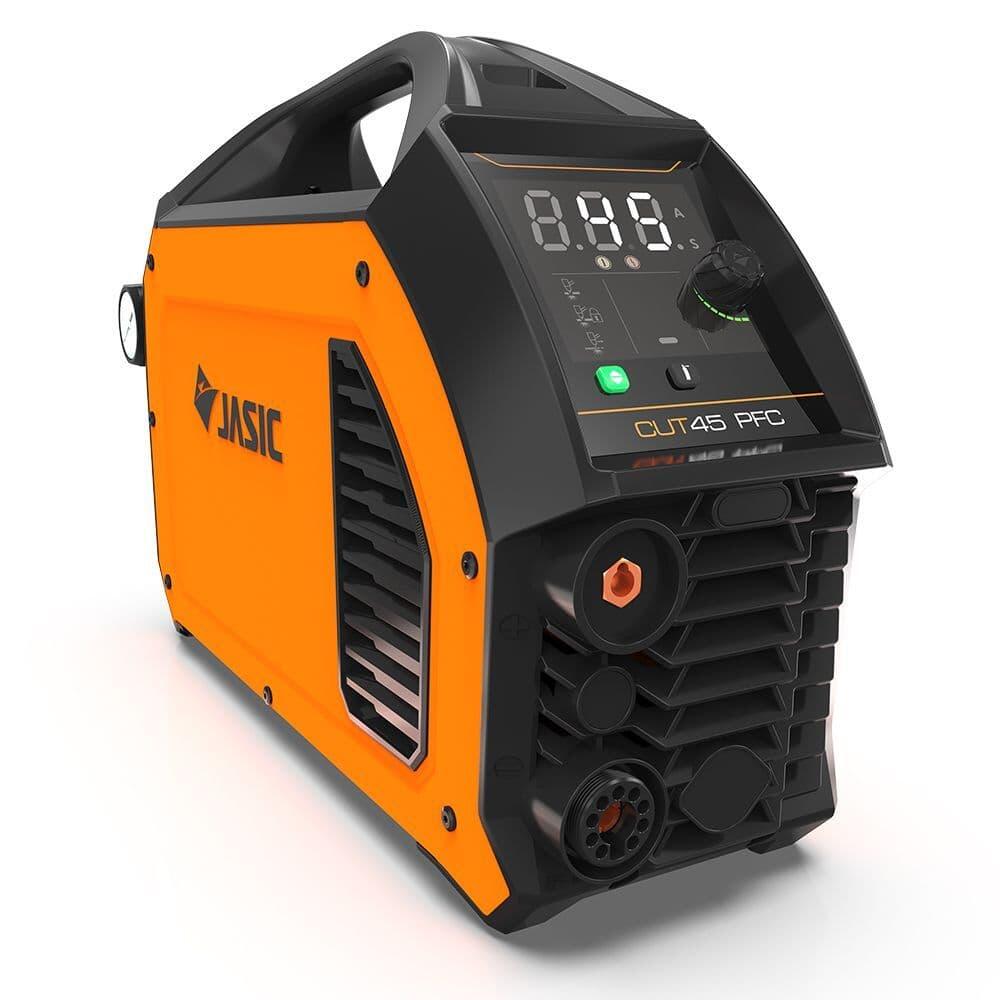

The Jasic Evo Cut 45 PFC plasma cutter is fitted with non HF pilot arc starting and combined with the 6M IPT60 plasma torch offers excellent plasma arc ignition which will cut through rusty and painted metals as well as ferrous and non ferrous material easily which can effectively prolong the lifespan of the electrode and cutting tip of the plasma cutting torch. The unique ClearVision display offers the operator clear and informative control data for the welding plasma cutting process offered, an optional TFT-LCD upgrade version is also available. Plasma cutting technology can be widely used in various industries involving metal cutting such as boiler and pressure vessel manufacturing, chemical container manufacturing, power plant installation and construction industry, metallurgy, chemical engineering, aerospace, automobile and engineering vehicles manufacturing and construction facilities.
Key Features and Specifications:
- 15mm clean cut on carbon steel
- PFC power factor correction

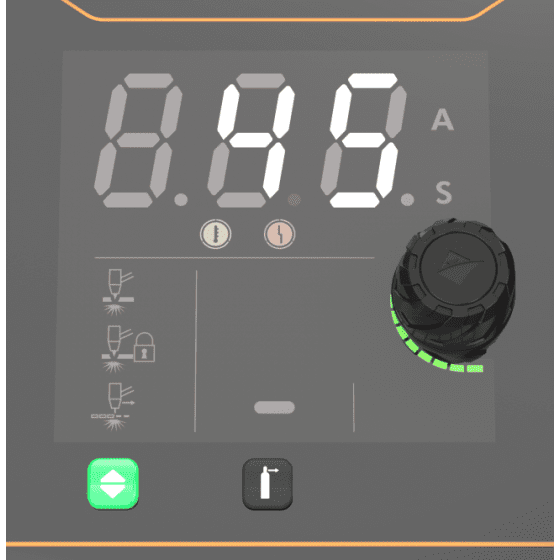

- ClearVision digital control panel for accurate variable current setting
- Non HF plasma arc ignition
- Cut speed 1.8 times faster than gas, with no gas used
- Pressure gauge and adjustable regulator
- Mesh/grid cutting
- Optional circle cutting guide kit available
- 5 Year warranty

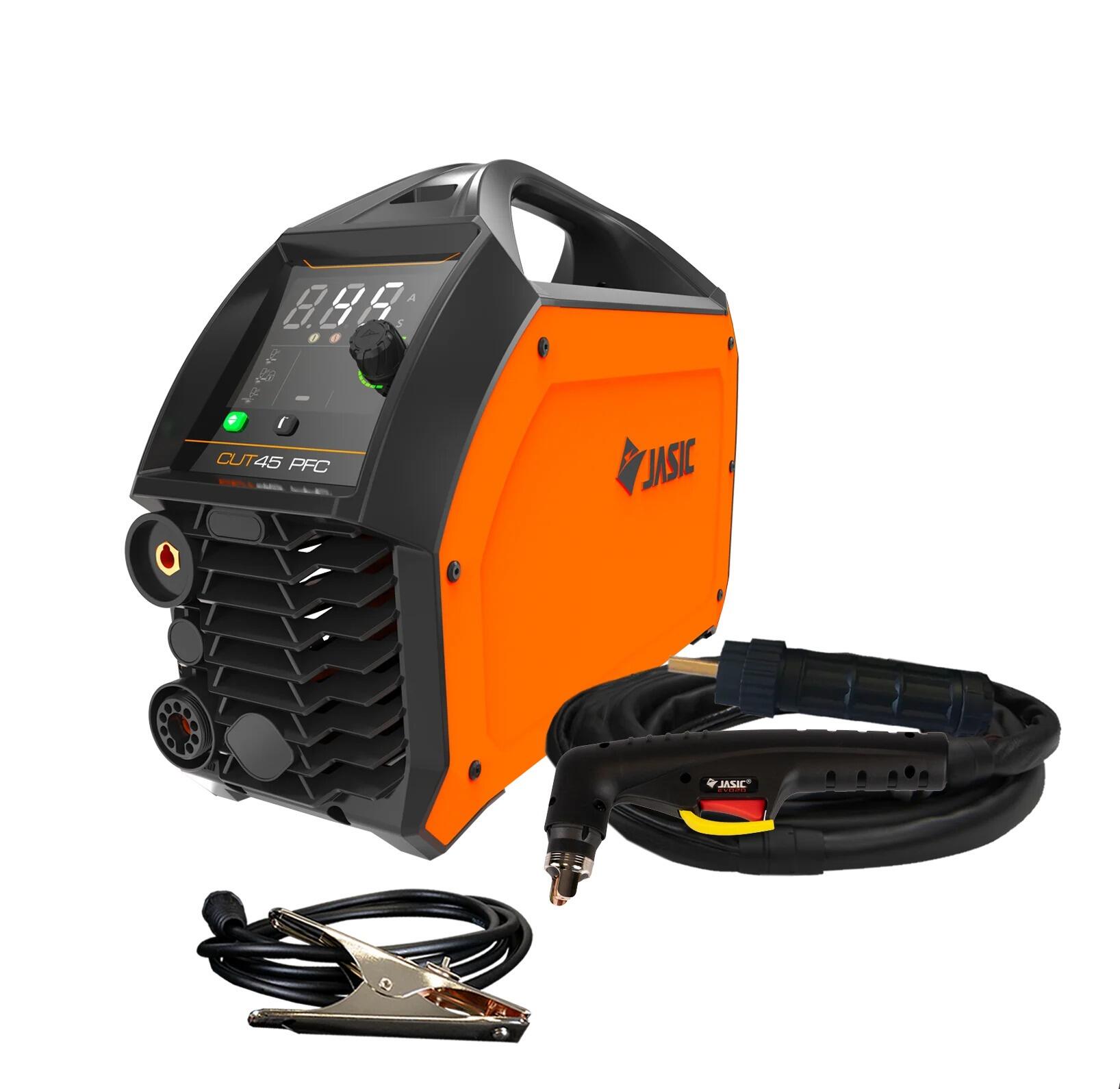

Supplied with cutting torch and earth clamp
Input voltage AC115V AC230V No load voltage 300V 300V Rated input current 31A 23A Leff 20A 11.5A Rated input power 3.6kVa 5.3kVa Current range 20-30A 20-45A Arc starting NHF NHF Rated duty cycle @ 40 deg 25% 25% Clean cut (carbon steel) @ 400mm/min 6mm 15mm Severance (carbon steel) 12mm 25mm Efficiency 86% 86% Power factor 0.99 0.99 Idle state power <50W <50W Protection class IP23S IP23S Insulation class H H Dimensions: L x W x H 546 x 166 x 341mm Weight: 10Kg Recommended generator size (must have AVR) 5.5KvA 8kVa
