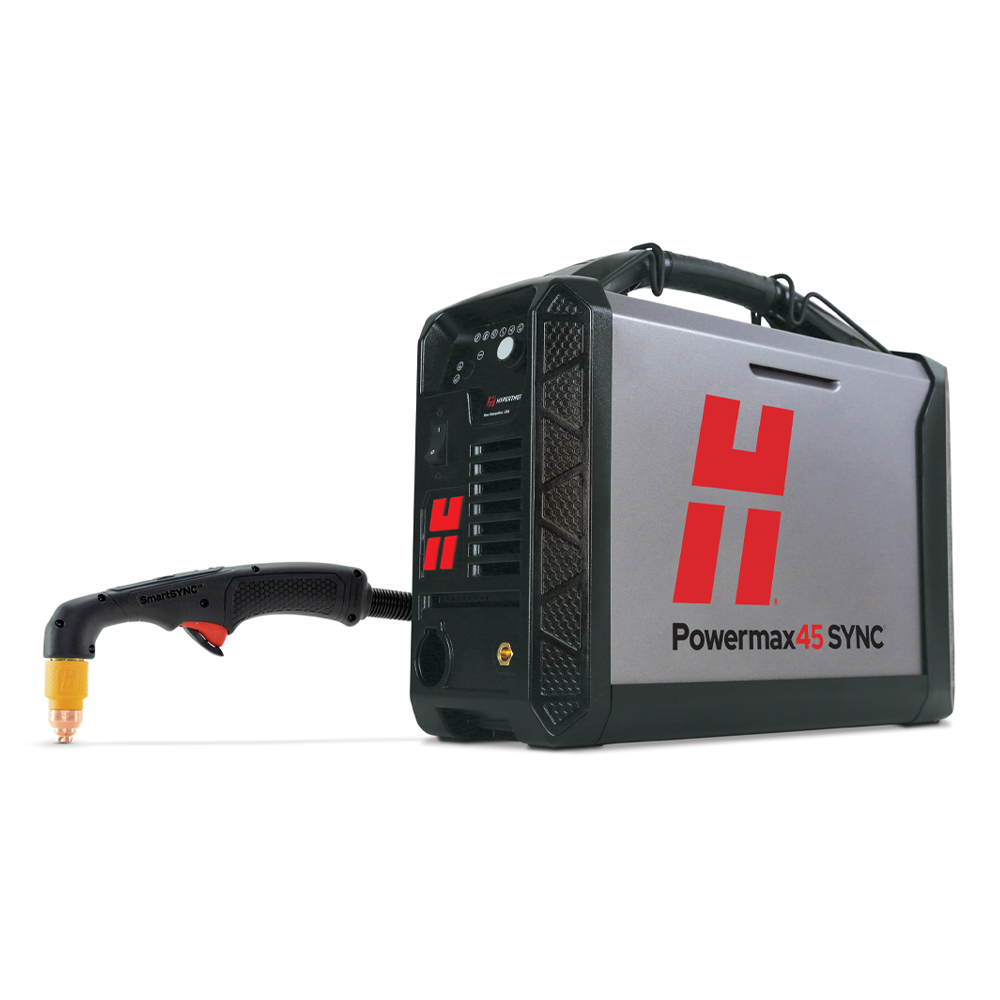

Hypertherm Powermax 45 SYNC Plasma Cutter 230V

Code 088568
Hypertherm Powermax 45 SYNC
Hypertherm Powermax 45 SYNC
Code 088568
£0.00 £0.00(inc. VAT)
£2,013.00 £2,415.60(inc. VAT)
Save
Earn 0 reward points with this product.
  • Description

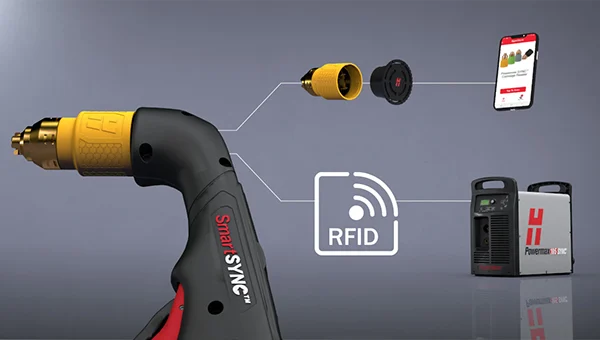

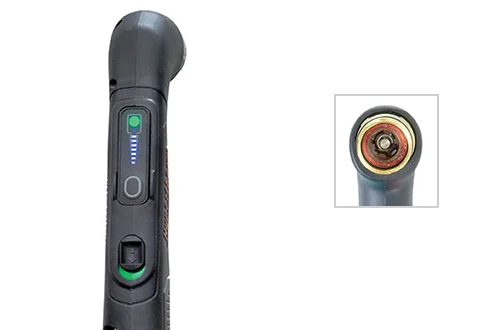

    The Hypertherm Powermax45 SYNC delivers increased cut capacity up to 29mm metal as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation. smart SYNC®  torches support handheld and mechanised cutting of a wider range of metal thicknesses, along with precision gouging such as spot weld removal and marking capabilities.


    Benefits

    Easy to use

    • System includes everything you need to get you cutting quickly and easily
    • Small size and light weight let you take the Powermax 45 SYNC just about anywhere
    • Available in single or three phase power supply
    • Supplied with a 6.1m torch

    Superior performance in a compact package

    • Fast cutting speeds and excellent cut quality let you finish jobs quicker, with fewer secondary operations
    • Built to withstand heavy-duty use in the most demanding environments

    Two-in-one design for maximum versatility

    • High-power cutting on thick metal

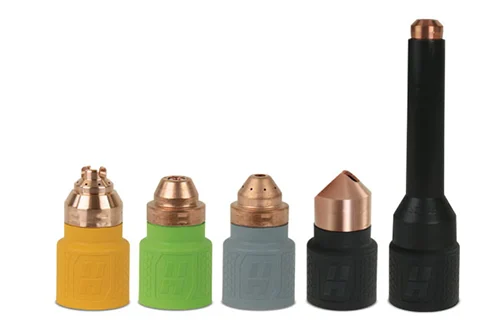

    • FineCut consumables enable high quality cuts on thin metal, leaving a clean edge and a narrow kerf

    Please call us for a great deal ! 02392 295612

    Click here for consumables


    Technical SpecPowermax 45XP
    Mains input voltage230v
    Dimensions L x W x H442 x 173 x 357 mm
    Input air pressure range188 I/min (400 scfh) @ 5,9 bar (90 psi)
    Rated output power

    275 VDC


    Duty cycle @ 104F50% @ 45 A, 230 V, 1-PH
    60% @ 41 A, 230 V, 1-PH
    100% @ 32 A, 230 V, 1-PH
    50% @ 45 A, 400 V, 3-PH
    60% @ 41 A, 400 V, 3-PH
    100% @ 32 A, 400 V, 3-PH
    Warranty6 years on machine, 1 year on torch
    Earth lead3m
    Weight15 kg
    Max severance cut29mm
    Max recom cut (M. steel)16mm


    Max recom pierce cut

    12mm
