Hypertherm Powermax 30 Air

Code 088098
Hypertherm  Powermax 30
Code 088098
£0.00 £0.00(inc. VAT)
£1,962.00 £2,354.40(inc. VAT)
Save
Earn 0 reward points with this product.
  • Description

    The Hypertherm Powermax30 AIR delivers big performance. The smallest, lightest handheld plasma cutting system in its class, it includes its own built-in air compressor, so you can use the Powermax30 AIR anywhere theres single-phase power. Just plug it in, attach the work clamp and youre ready to cut.

    Please call us for a great deal ! 02392 295612

    Easy to set up and operate

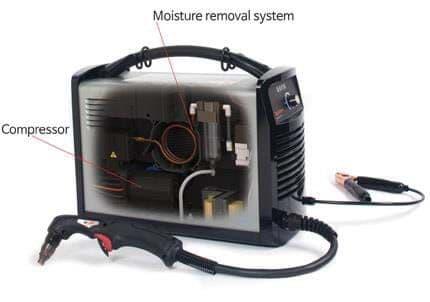

    • Internal compressor eliminates the need for an external air compressor and filter
    • Plug into any 110 or 240 V power (convenient Auto-Voltage technology and plug adapters included)
    • Supplied with a 6.1m torch


    Superior performance in a compact package

    • Patent-pending consumable design enables consistent cutting by optimizing the airflow from the compact, internal compressor
    • Quickly cut metal grate or rusted metal without retriggering with the continuous pilot arc feature
    • Fast cutting speeds and superior cut quality let you finish jobs quicker, with fewer secondary operations


    Exceptional versatility

    • Just one tool is all you need to cut a variety of metal types and thicknesses
    • Small size and light weight let you take the Powermax30 AIR to the work, rather than bringing the work to the system an ideal solution for a wide range of cutting applications
    • Built to withstand heavy-duty use in the most demanding environments

    Click here for consumables


    Technical SpecPowermax 30AIR
    Mains input voltage110/230v
    Open circuit voltage256 VDC
    Engine drive requirement5.5 kW for max output
    Rated output power

    83 VDC


    Duty cycle @ 104F240v @ 35% 120v @ 20%
    Size approx420Lx195Hx333W mm
    Earth lead3m
    Weight13.5 kg
    Max severance cut16mm
    Max recom cut (M. steel)10mm


    Output current

    15-30 Amps
