ESAB Sentinel A60 Air Fed Welding Helmet

The ESAB Sentinel A60 Air Fed Welding Helmet builds on the advancements of the standard Sentinel A60, taking your welding to the next level. A large panoramic view and perfect 1/1/1/1 EN optical clarity provide an even wider view of the weld pool without any distortion.

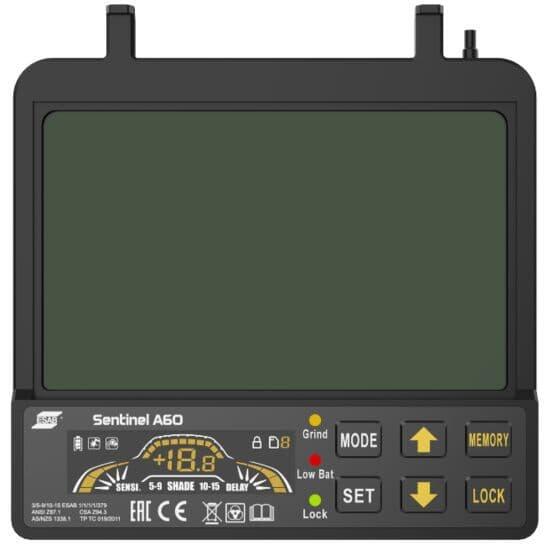

The re engineered auto-darkening filter (ADF) with a viewing area of 118 x 71mm also features new OpTCS broad-spectrum light control technology from ESAB, giving you an enhanced True Colour view with reduced eye fatigue for the most demanding days on the job. New 0.5 increment shade adjustments give you more precise control of your view.

The shell retains the signature Sentinel design, and incorporates a new air diffuser screen. A fully-adjustable Halo headgear, and external grind mode button complete the most comfortable, highest performance helmet ESAB has ever produced.

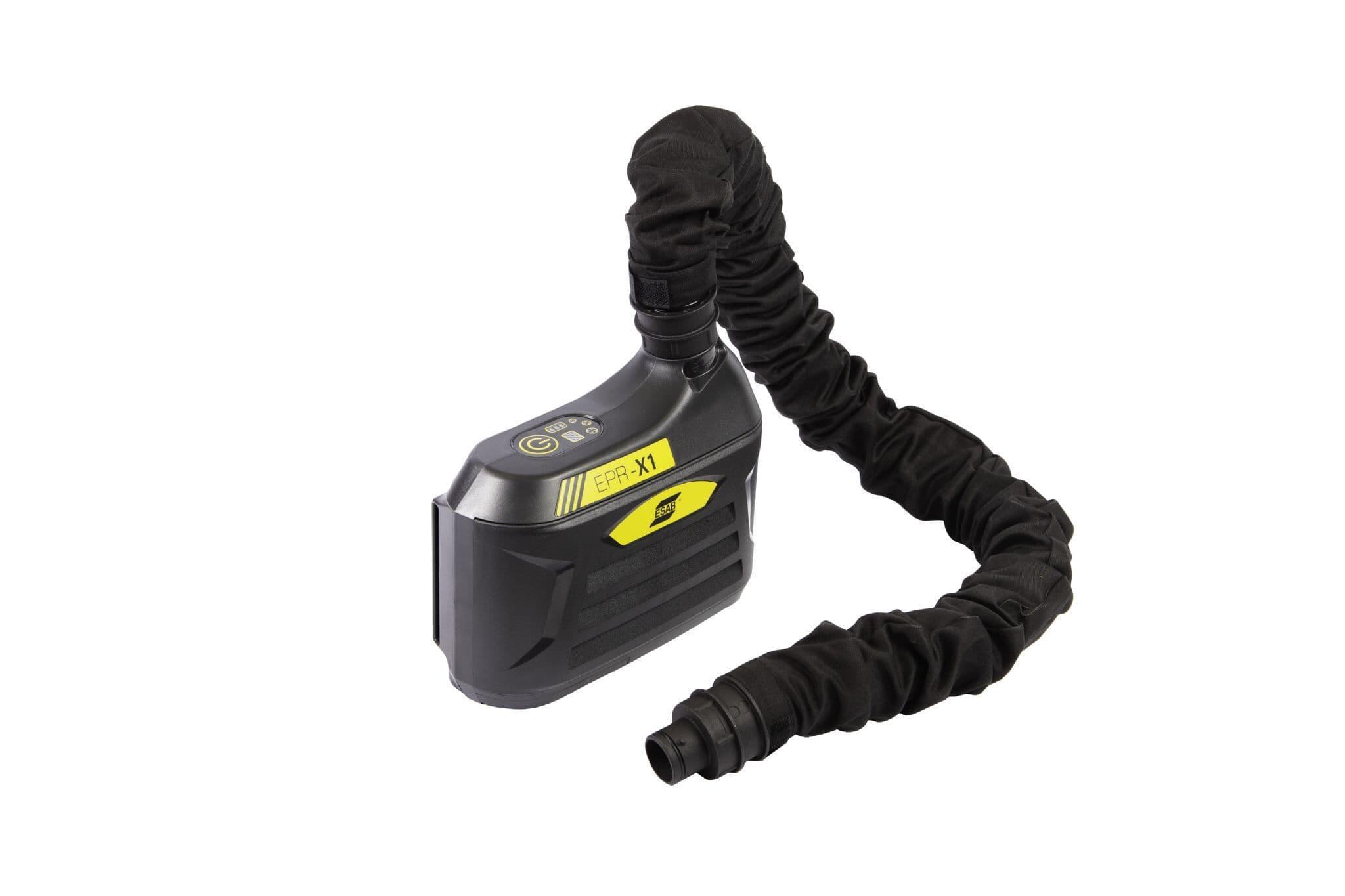

The ESAB Sentinel A60 air fed welding helmet comes supplied with the latest EPR-X1 type blower unit. Years  of welding have trained you to know exactly what you need in a welding helmet: crucial comfort, large lens and next generation technology. Every special operation needs special equipment that gets the job done, and when it comes to your helmet, Sentinel is worn by the best.

Ideal for the following processes: Oxy/fuel cutting, Plasma cutting, Grinding, MIG,TIG and Arc welding.

3 year warranty

Features

• Supplied as a complete ready-to-go package
• Revolutionary Shell Design. High Impact Resistance Nylon
• Halo Headgear. Ergonomic, infinitely-adjustable 5 point head gear provides extreme comfort and balance. Low-profile design, central pivot point allows for maximum head clearance while helmet is in the up position.
• Le-lion battery pack (up to 10 hour duration @ 170 l/min)
• User adjustable air flow 170/190/220 l/min
• Intelligent charger
• Audio/Visual blocked filter and low battery alarm
• Meets HSE specifications
• 118 x 71mm 1/1/1/1 5-13 ADF
• Externally activated Grind Button. Shade 3 Grind Mode
• Colour touch screen control panel
• 9 separate memory settings
• Includes face seal
• Replacing spare parts made easy. Front cover lens replaceable within 10 seconds, without removing helmet (front loaded)
• 4 Arc sensors
• Weighs only 860g (helmet)
• Switch time is 1/25,000 second

Factsheet
