ESAB Savage Air Fed Welding Helmet

The ESAB Savage A40 Air Fed Welding Helmet delivers uncompromising protective performance for all welding activities. The EPR-X1 blower system provides user-selectable airflow control to deliver P3-level filtration performance for fine particulates.

The welding experience is further enhanced with Savage A40's state-of-the art ADF light filtration, offering True Colour viewing of the weld pool and full user-adjustable controls for shade, delay and sensitivity. An easy-to-access grind mode button allows fast switching between grinding and welding. The Savage A40 Air checks all the boxes for the serious and professional welder. Supplied as a complete package.

Features

• Supplied as a complete ready-to-go package
• Four arc sensors for higher auto darkening response
• Wider coverage and a larger viewing area of 100 x 50 mm (3.93 x 1.96 in.) that offers a wide field of vision and increased spatial awareness
• Sensitivity control is an adaptable feature useful when welding low amp TIG for better reaction to darker arc light
• Delay control enabling the welder to set how long the lens stays dark after the welding arc stops. Short delay helps get the job done faster during tack welding, whilst longer delay is useful for high amperage welding
• Externally activated Grind Button. Shade 4 Grind Mode
• True Colour allowing for a brighter view and enhanced colour definition
• External shade adjustment between DIN 9 and DIN 13 and an optical class of 1/1/1/2. Delay and sensitivity can be adjusted from the inside

Welding Process

• Plasma cutting
• Oxy-fuel cutting
• MMA Stick welding
• TIG
• MIG/MAG
• Plasma arc welding

EXTRAORDINARY BREATHABILITY.

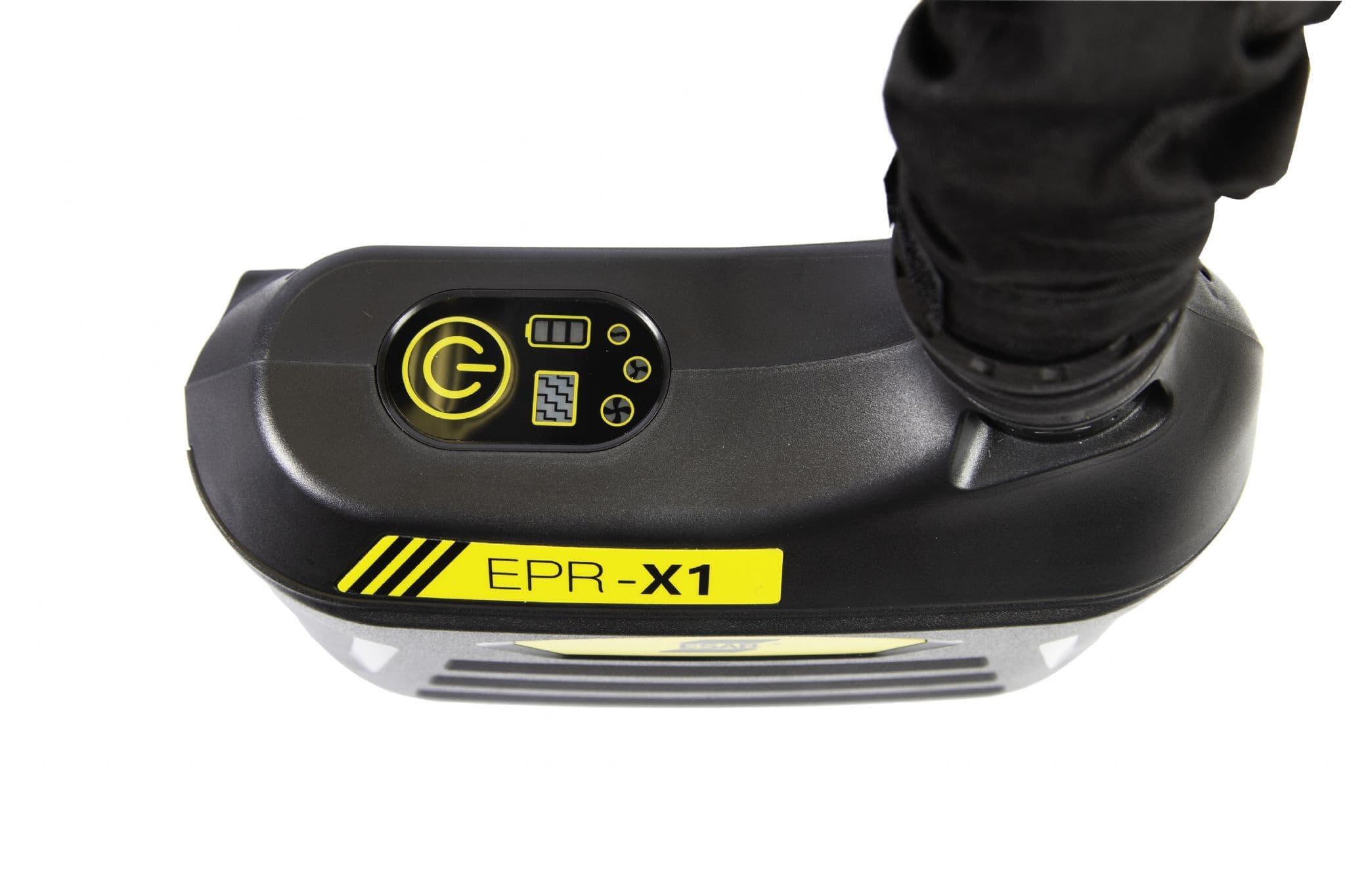

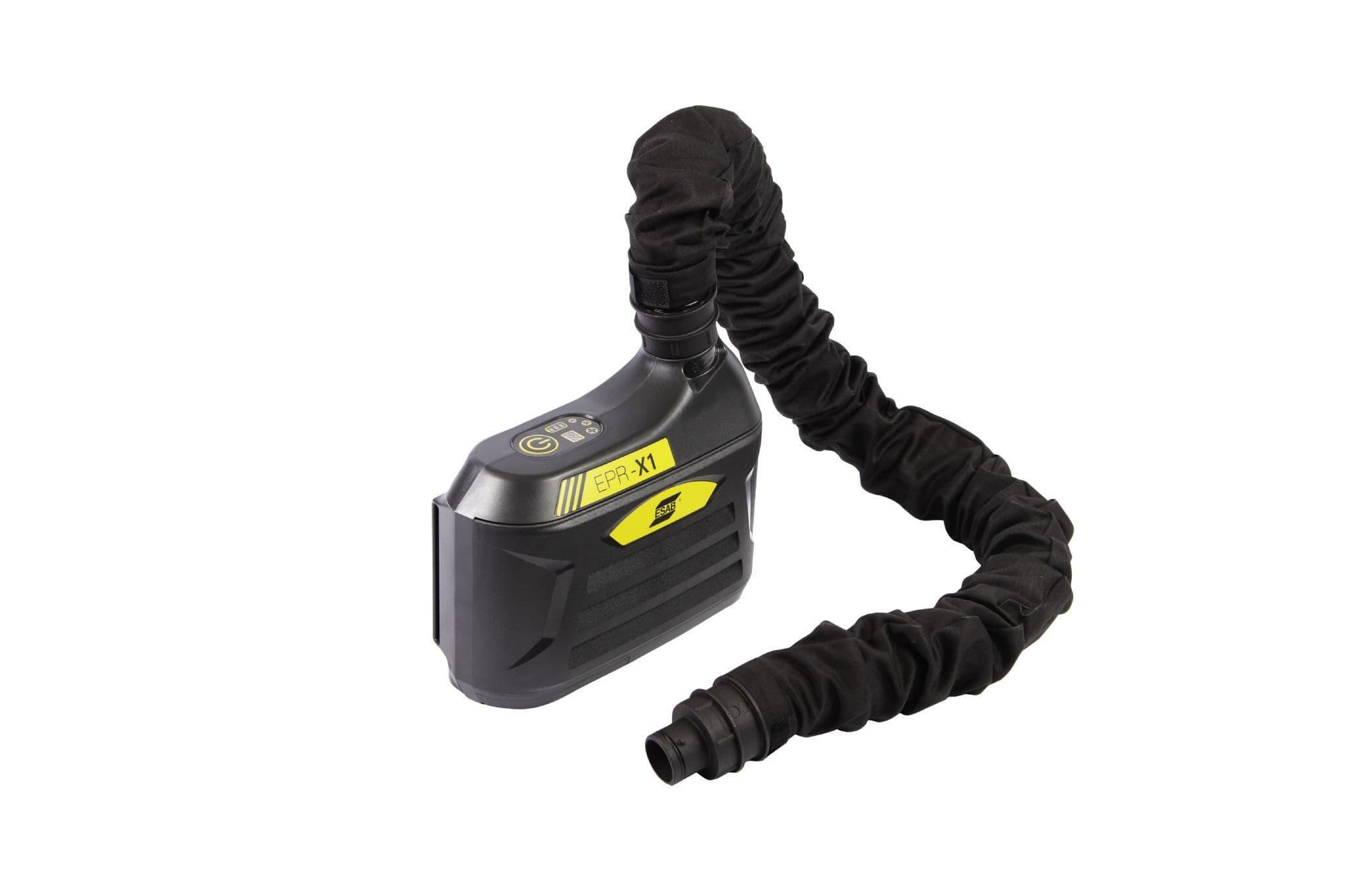

The advanced Air system uses a push-button, digitally-controlled airflow adjustment, allowing from 170 litres per minute to 220 litres per minute through a spark arrestor shield and 2-stage replaceable filter. A high-capacity rechargeable lithium-ion battery powers the quiet (70 db) blower system for up to 10 hours @ 170 l/min.

Factsheet

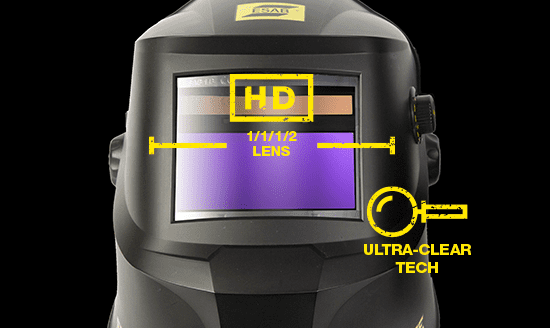

CRAZY OPTICAL PERFORMANCE.

We equipped Savage A40 Air system with a 10 x 5 cm viewing area for a wider field of vision and greater spatial awareness. Its 1/1/1/2 optical-class lens features our ultra-clear true-colour technology for increased weld pool clarity and enhanced definition. The result? A bigger, better view.

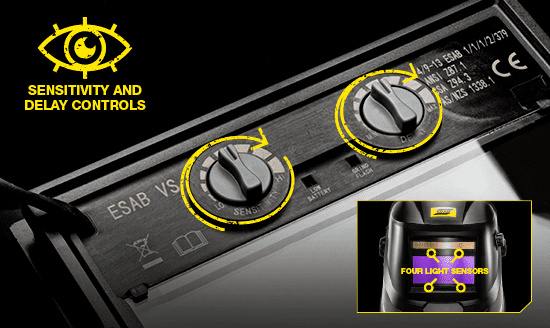

REMARKABLE TECHNOLOGY

With Savage A40 Air system, the sensitivity and delay controls inside the helmet allow for seamless setting adjustments. Savage A40s four light sensors provide a faster auto-darkening response, especially when working out of position.

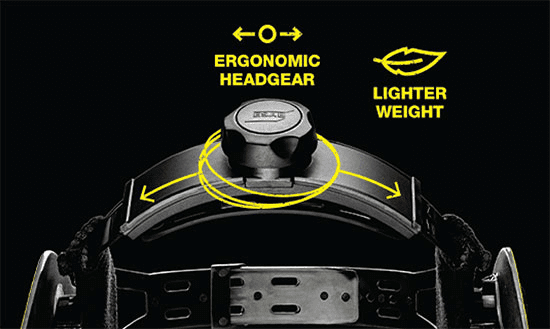

EXCEPTIONAL COMFORT.

The Savage A40 Air lightweight helmet shell comes with multi-point adjustable headgear to provide exceptional comfort while protecting from heat, sparks and spatter - no matter the application
