- Description

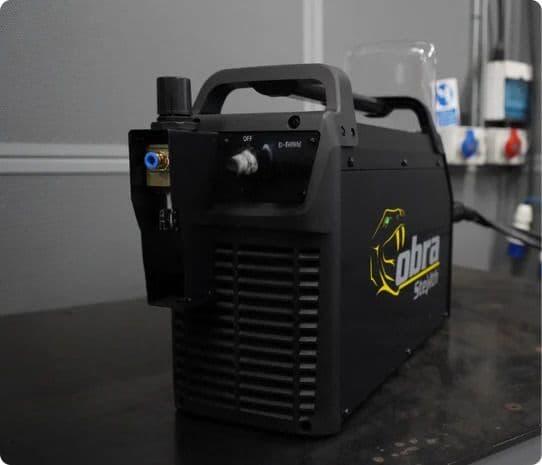

The Cobra by Stealth Cut 60-1 CNC Plasma Cutting Machine delivers exceptional performance with an optimal production cutting thickness of up to 25mm for carbon steel, and stainless steel, up to 20mm for aluminium, and 14mm for Cuprum making it a versatile tool for various materials.

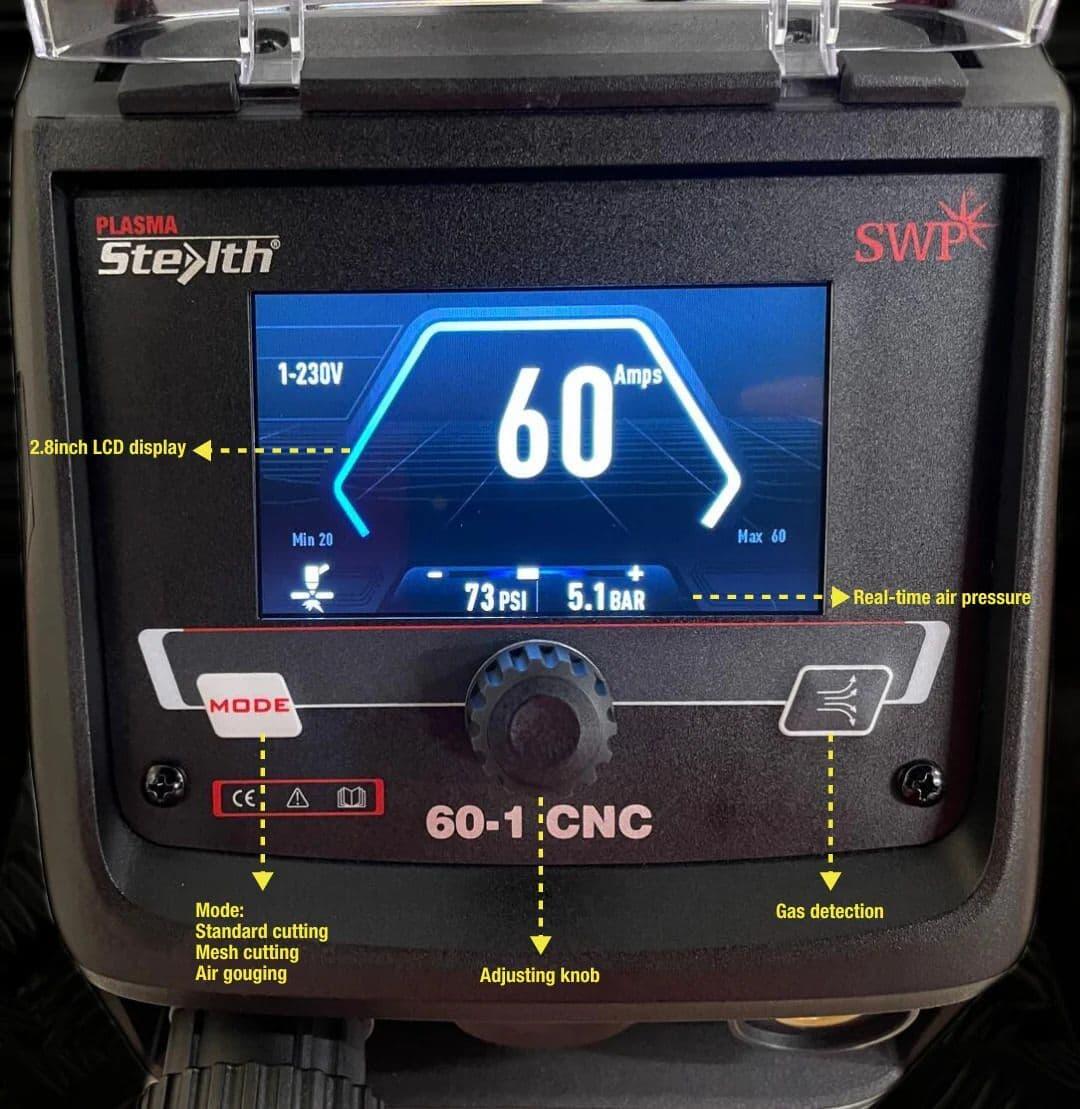

Efficiently cut through any material with the Cobra by Stealth Cut 60-1 CNC Plasma Cutting Machine. Featuring 3 cutting modes and a 2.8 inch LCD display, this machine offers precise and customizable cuts. With real time air pressure monitoring and a 3-proof design for moisture, salt spray, and corrosion, achieve top-notch results with an impressive 88.7% efficiency rating.
Features
- Precision 2.8 inch LCD screen
- Single phase supply 230V
- Seamless CNC integration
- Non high frequency start for interference free operation
- Back striking tip and electrode for enhanced performance
- EMI filter
- Pilot arc controller
- Quick release torch
Call us for a great deal ! 02392 295612
Technical
Input power voltage (V) 230 +- 10% Frequency (Hz) 50/60 Effective input current (A) 48 Current adjustment range (A) 20-60 Maximum no-load voltage (V) 348 Duty cycle (A) (40°C 10min) 100% @ 60 Severance cut for carbon steel (mm) 35 Production cut for carbon steel (mm) 25 Stainless steel (mm) 25 Aluminium (mm) 20 Copper (mm) 14 Air operating pressure (psi) 50-90 (3.5-6bar) Air operating low 160 Protection class (l/min) IP21S Insulation class F Cooling air Overall dimensions (mm) 550x 190x 360 Weight (kg) 14 Accessories included 3m earth lead,3m gas hose, PC7100H torch
