- Description

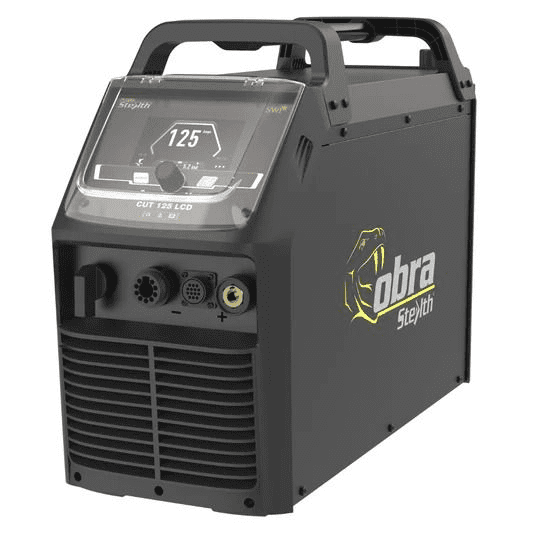

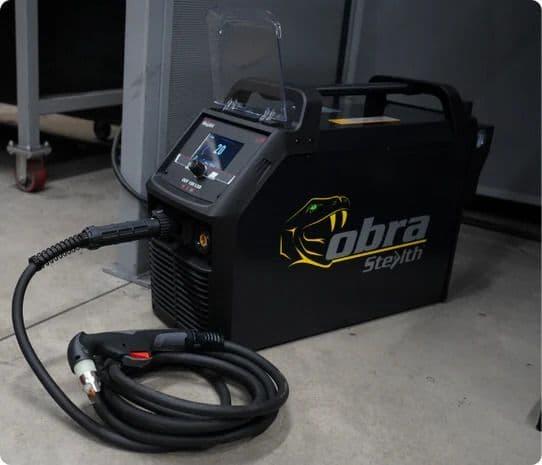

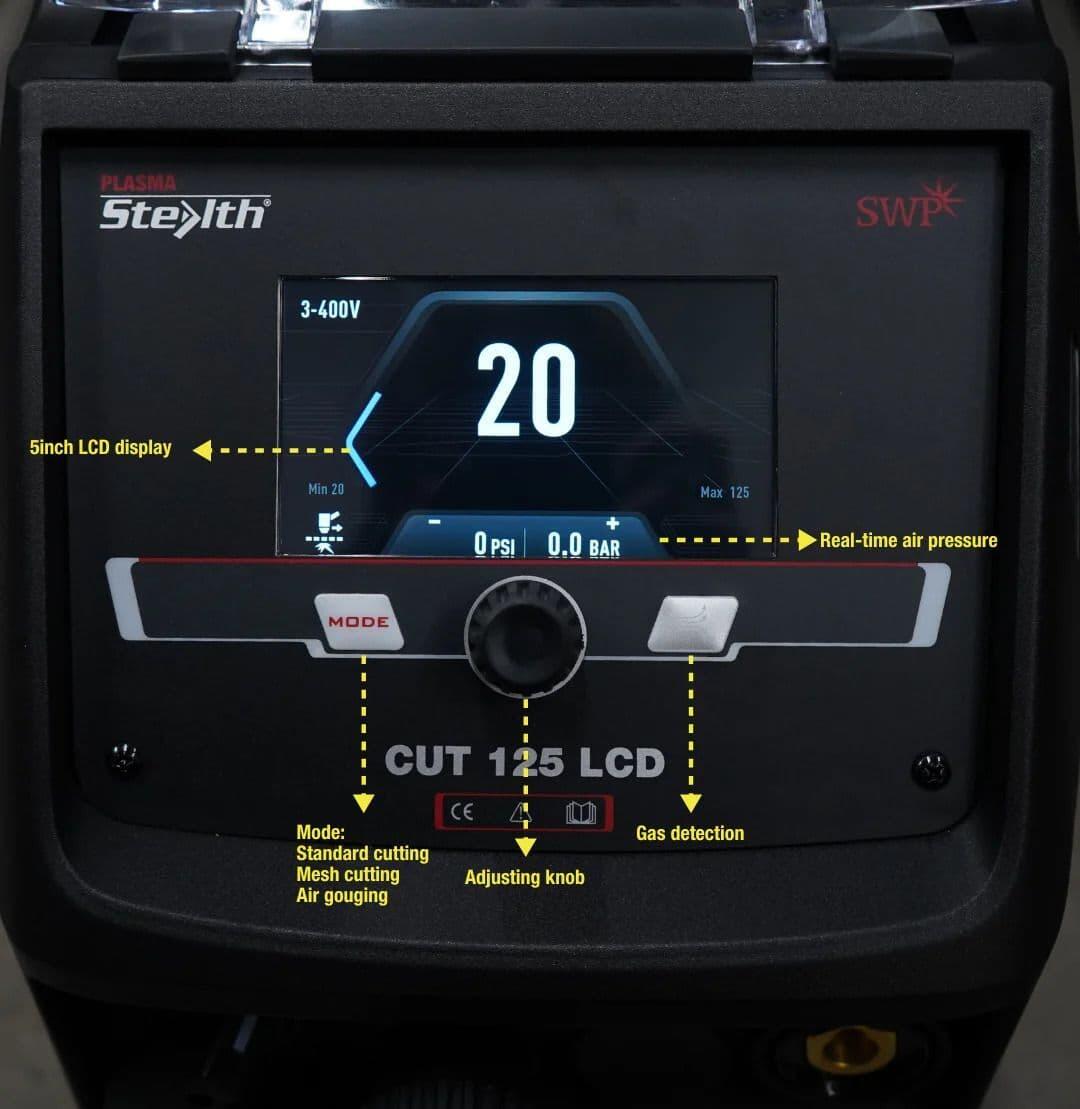

The Cobra by Stealth Cut 125 CNC Plasma Cutting Machine is a high-performing, professional-grade cutting machine. With a 5-inch LCD display and phase loss protection, this 3-phase 400v machine offers 3 cutting modes and a heavy-duty cycle for precise and efficient cuts. Increase your productivity and achieve optimal results with this reliable and versatile machine.
The Cobra by Stealth Cut 125 CNC Plasma Cutter offers three cutting modes, standard cutting for general applications, mesh cutting for intricate work pieces, and air gouging for efficient metal removal - catering to a wide range of industrial applications.
This Cut 125 CNC Plasma Cutting Machine delivers exceptional performance with an optimal production cutting thickness of up to 40mm for carbon steel, 30mm for stainless steel and aluminium, and 20mm for copper, making it a versatile tool for a wide range of materials.
The Cobra by Stealth Cut 125 CNC Plasma Cutting Machine operates on a 3-phase, 400V power supply, ensuring consistent and reliable energy for demanding cutting tasks.
Features
- Non HF start (interference free)
- Pilot arc controller
- Wide voltage flexibility
- Comprehensive protection and alarm functions
- Advanced IGBT and digital control
- EMI filter
- Back striking tip and electrode for enhanced durability
- 5 year warranty
Call us for a great deal ! 02392 295612Please click here for consumables
TechnicalInput current voltage (V) 3/400 +-10% Frequency (Hz) 50/60 Maximum (KVA) 19.5 Rated input current (A) 27.5 Current adjustment range (A) 20-125 Maximum no-load voltage (V) 321 Duty cycle (A) (40°C 10 min) 100% @ 105 Severance cut for carbon steel (mm) 55 Production cut for carbon steel (mm) 40 Stainless steel (mm) 30 Aluminium (mm) 30 Copper (mm) 20 Air operating pressure (psi) 50-90 (3.5-6bar) Air operating flow (l/min) 260 (9.18cfm) Protection class IP21S Insulation class H Cooling air Overall dimensions (mm) 800x 260 x 490 Weight (kg) 31 Accessories included 3m earth lead,3m gas hose, PC7200H torch
