- Description

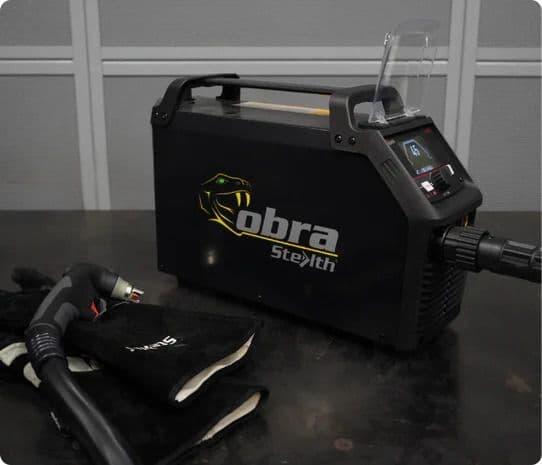

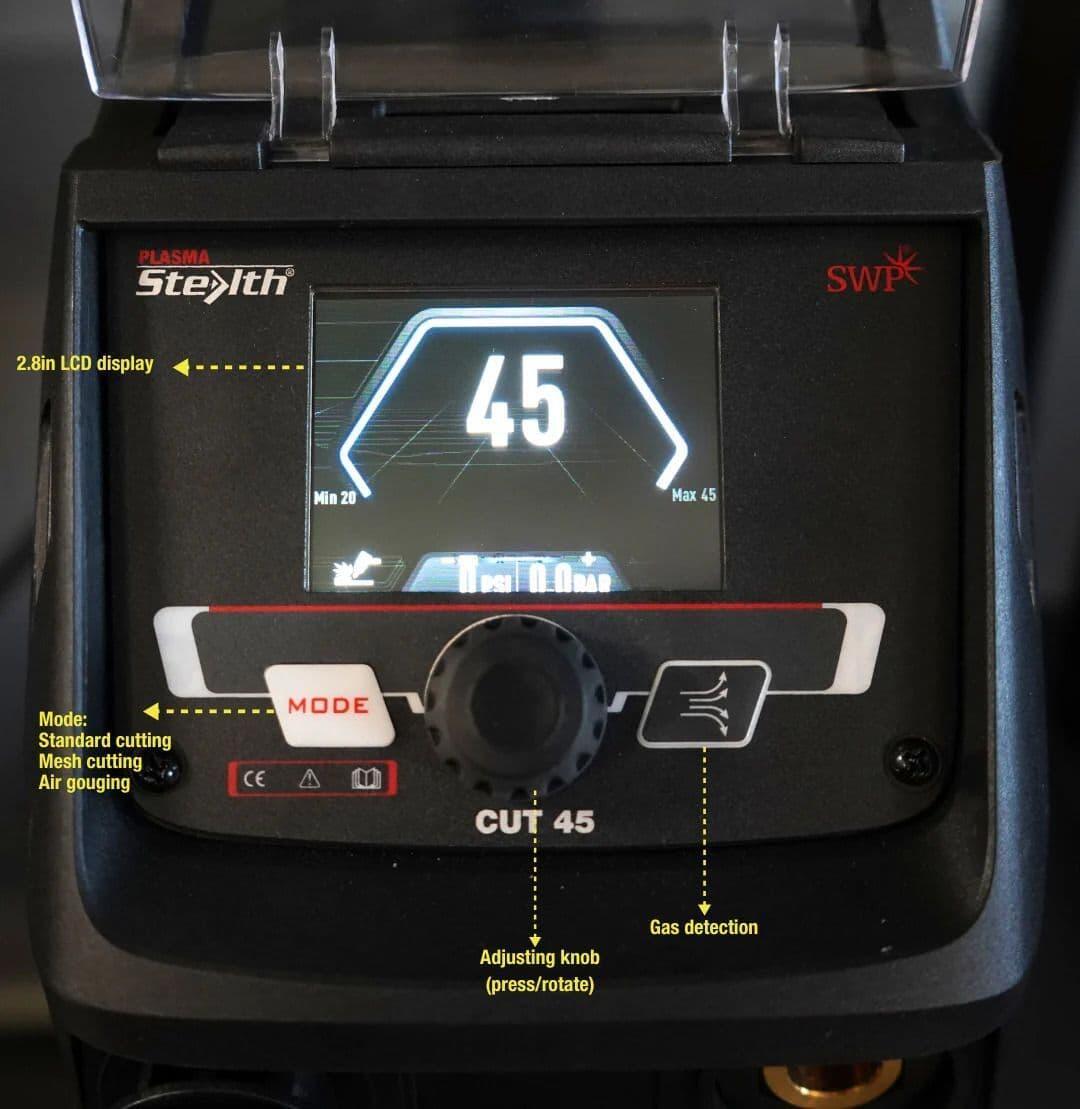

The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine offers 3 modes for increased versatility: standard cutting, mesh cutting, and air gouging. With a multi voltage capability and 0.99 power factor correction, this machine is efficient and precise. The mcu control system and 2.8 inch LCD display provide advanced control for optimal results.
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine offers multiple advantages, including energy-saving technology for efficient operation and the flexibility to work with dual input voltages of 110V and 230V, making it adaptable to a wide range of working environments.
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine boasts an impressive 86% efficiency rating, ensuring optimal energy use for cost-effective cutting performance.
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine is lightweight and compact, weighing just 7.7kg, making it highly portable and convenient for on-the-go cutting tasks.
Features- LCD screen
- PFC technology: Power factor more than .99
- Pilot arc controller
- IGBT parallel balanced current
- EMI filter restrains the EMI transmission of the power
- Protective alarm functions
- Back striking tip and electrode
- Quick release torch
- PC7100H included
- 5 year warranty
- 110/230V
Call us for a great deal ! 02392 295612
TechnicalPower supply voltage (V) 90-275 Power frequency (Hz) 50/60 Input voltage (V) 1-110
1-230
Effective current (A) 110V:18.3| 230V:14.2 Rated current input (A) 110V:31.0| 230v:22.5 Rated input power (KW) 110V:3.4|230V:5.1 Duty cycle 110V (A) (40°C to 10 min) 35% @ 30A
60% @ 22A
100% @ 20A
Duty cycle 230V: (A) (40°C to 10 min) 40% @ 45A
60% @ 36A
100% @ 28A
No load voltage (V) 380 Current range (A) 110V:20-30| 230V:20-45 Efficiency (%) 110V:81.6| 230V:86 Power factor 0.99 Severance cut for mild steel (mm) 110V @ 15
230V @ 25
Production cut (mm) Carbon steel 110V @ 10 | 230V @ 20
Stainless steel 110V @ 8 | 230V @ 16
Aluminium 110V @8 | 230V @ 16
Insulation class F Protection class IP21S Cooling AF Net weight (kg) 8.5 Dimensions (mm) 500 x 150 x 290 Standards EN60974:1.2021(LVD)
EN60974:10.2021(EMC)
2019/125/EC (EER)
