Cobra By Stealth 321 LCD AC/DC Pulse TIG Welder-Air Cooled

Code
Code
£0.00 £0.00(inc. VAT)
£1,948.00 £2,337.60(inc. VAT)
Save
Earn 0 reward points with this product.
  • Description

    The Cobra by Stealth 321 air cooled TIG welder is a three Phase rugged manufacture TIG welder. Generator friendly, Full digital control panel, Choice of pulse frequency, Welds all forms of steels including aluminium.

    Increase the efficiency of your welding with the Cobra by Stealth 321 LCD AC/DC TIG Welding Machine. This 3-phase machine utilizes advanced ac/dc technology and features 3 welding modes (TIG HF, TIG LIFT, MMA) for versatile use. Its built-in air cooler and trolley mount provide convenience and ease of use.

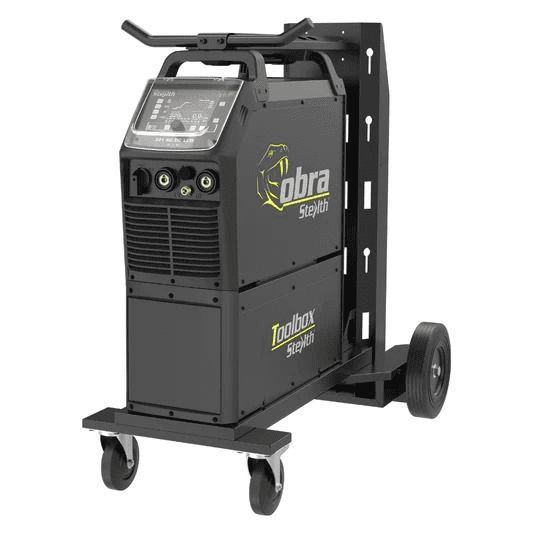

    The Cobra by Stealth 321 LCD AC/DC TIG Welding Machine comes with a tool box mounted on a sturdy trolley, allowing for effortless mobility and convenient manoeuvring around the workspace.

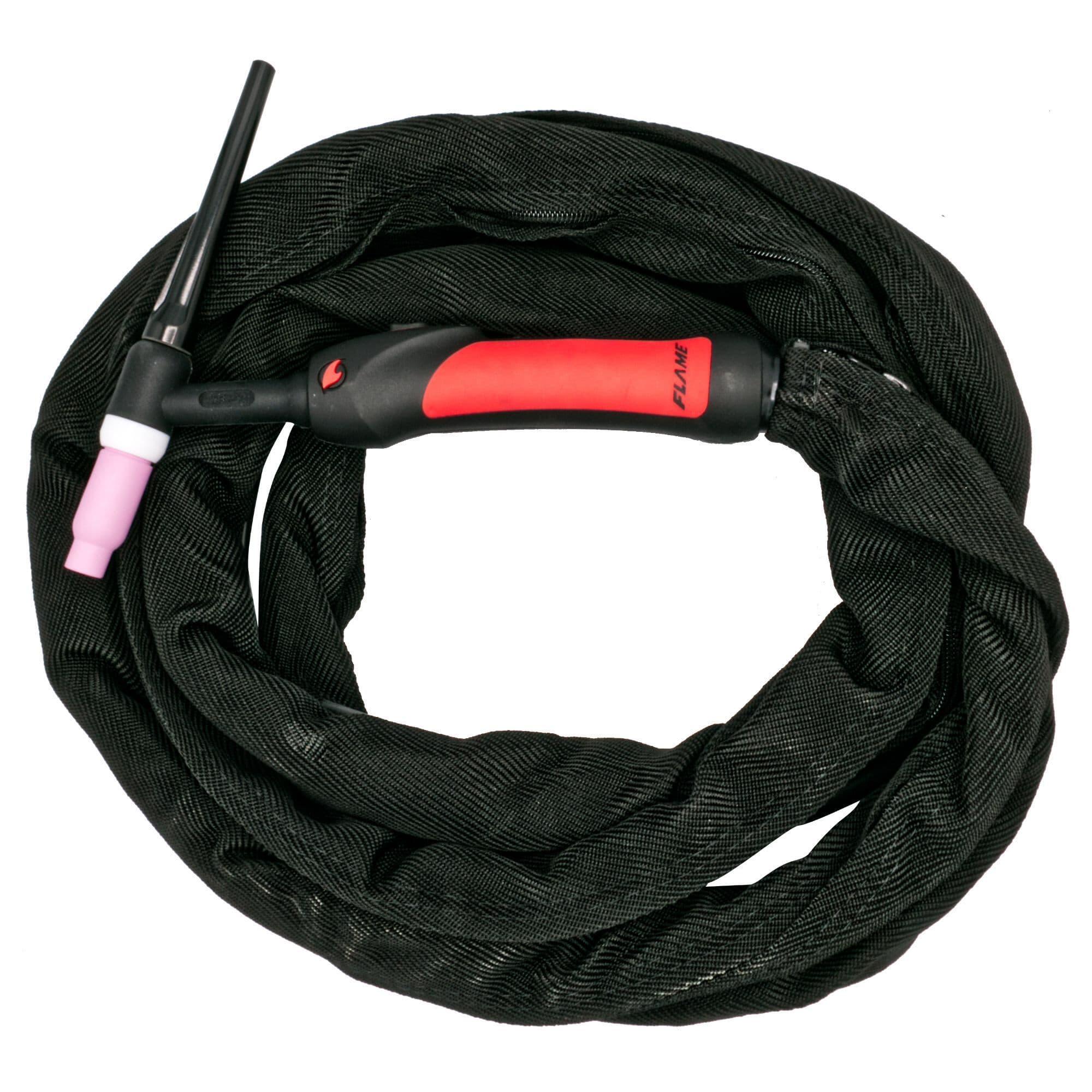

    Machine comes with Accessory Kit No. 9827H (WP26-4m torch, gas adaptor, electrode holder and acc)

    Features

    • IGBT module converter technology
    • Phase loss protection
    • Lift TIG and HF start modes
    • Adjustable ARC force
    • High performance on ultra thin surfaces
    • 2T/4T spot trigger control

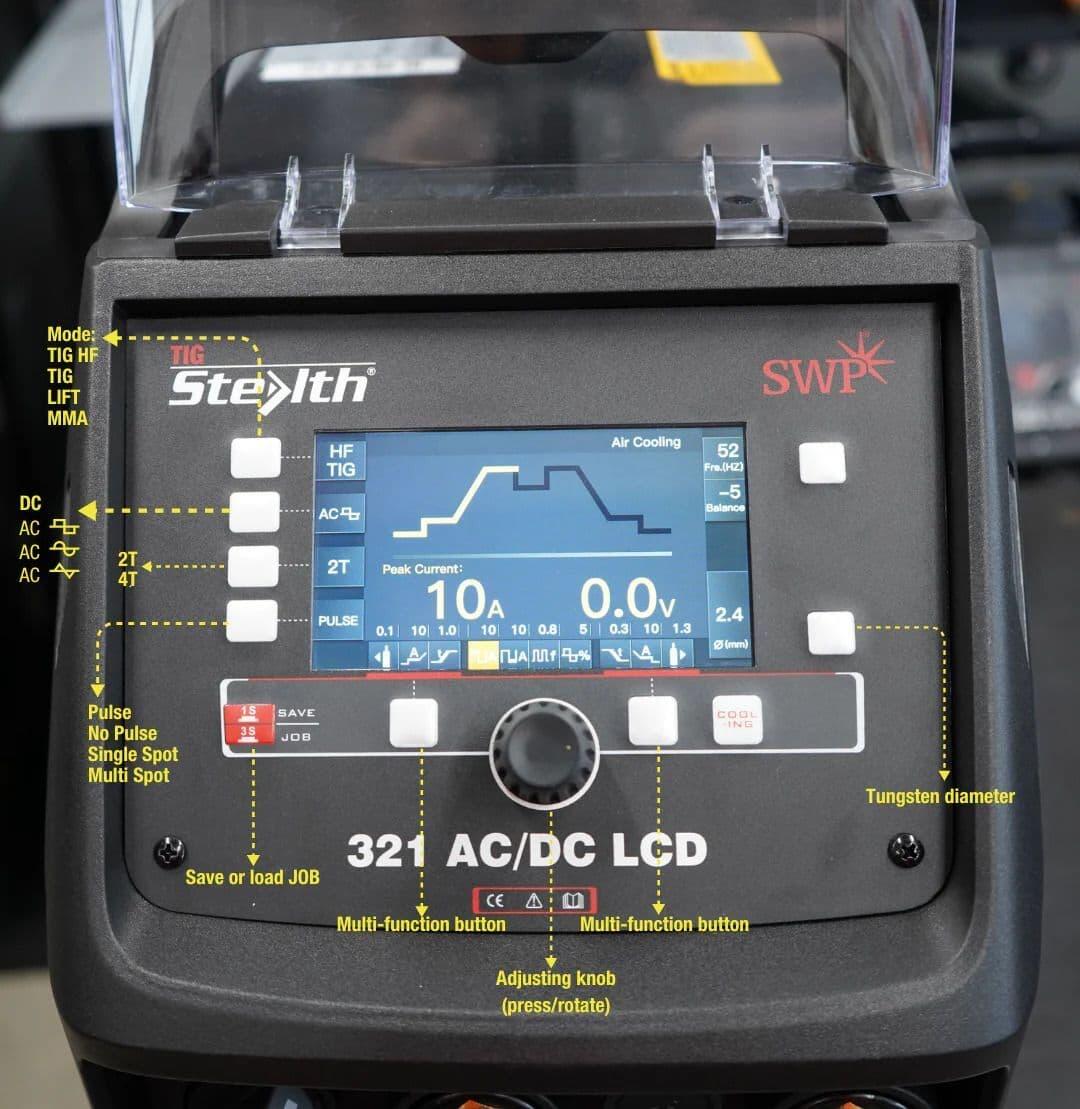

    • 4.3" LCD display
    • Temperature, voltage and current sensors
    • Diesel generator friendly
    • AC balance control
    • Up/down button remote control torch
    • Roller wheel amps on torch
    • 5 year guarantee

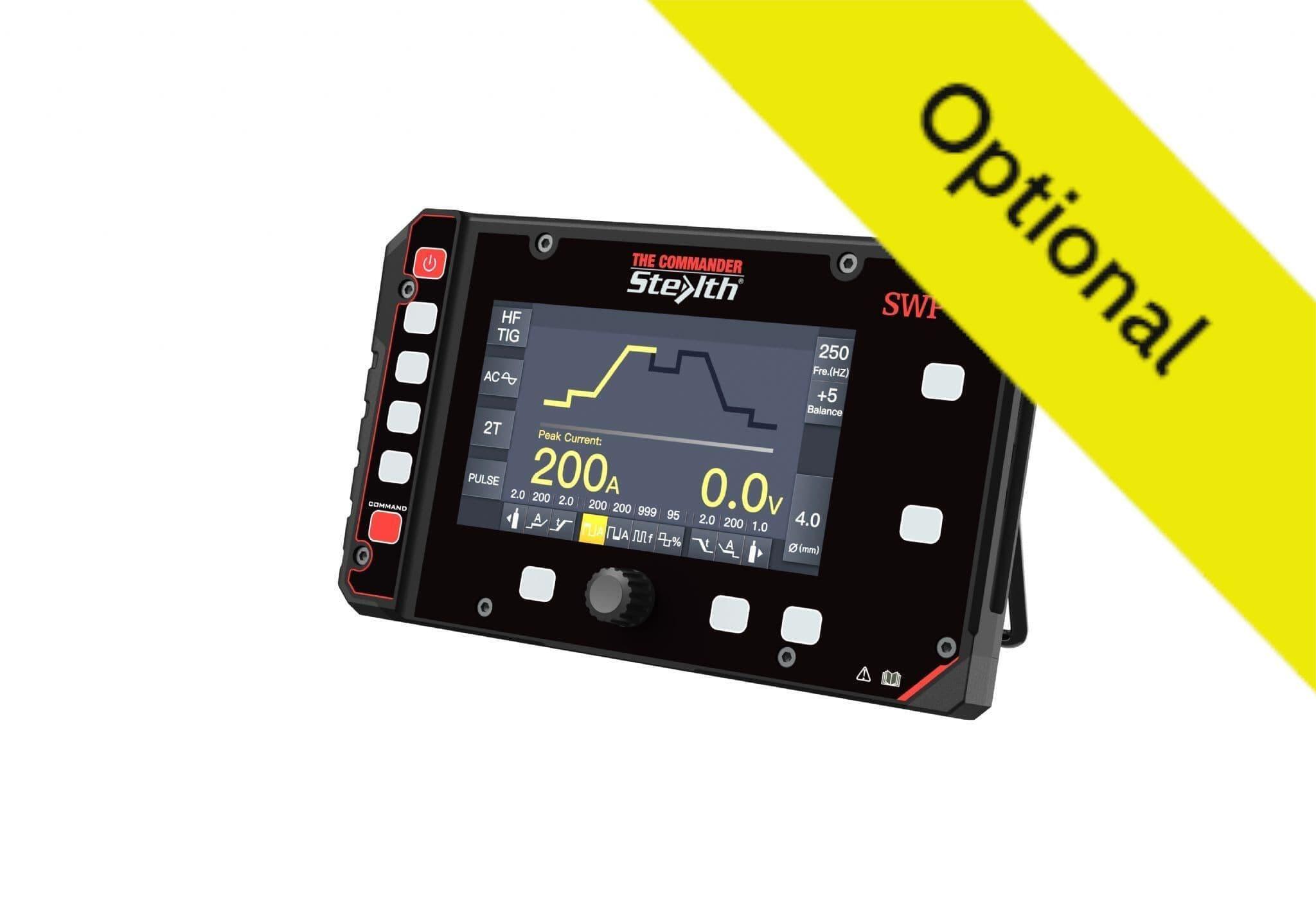

     Also shown is the optional Cobra Commander, which is a full colour wireless remote control with a 20 meter range, providing the operator with full control over TIG power sources.

    Technical Data


    Input power voltage400V 3ph400V 3ph400V 3ph

    TIG
    MMA
    Effective input current - AC (A)15
    16
    Effective input current - DC (A)16
    21
    Maximum kVA
    13
    Input voltage frequency (Hz)
    50
    No load voltage (V)73.8
    72.4
    Current adjustment range (A)
    10-320
    Duty cycle (A) (40 degrees 10mins)
    60% @ 320


    100% @ 250
    Arc - Starting
    HF/LIFT
    Protection class
    IP23
    Insulation class
    H
    Slope out (S)
    0-10
    Clean width (%)
    5-95
    Pre - gas time adjustment range (S)
    0.1-2
    Post - gas time adjustment range (S)
    0-10
    Clearance effect (%)
    5-95
    Efficiency (%)
    +- 85
    Overall dimensions (mm)570 x240 x385
    Weight (kg)
    25
    Accessories included3m Argon hose3m earth leadAmphenol plug
