- Description

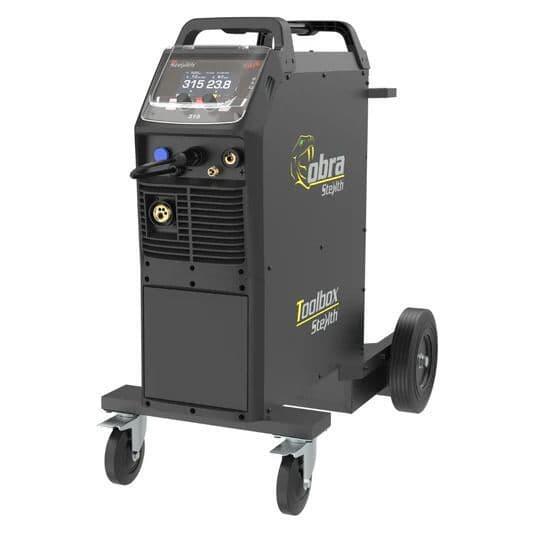

The Cobra by Stealth 315 Air Cooled MIG Welding Machine. This powerful machine combines air cooling technology with MIG welding capabilities, providing precise and efficient welding for all your projects. With a compact design and reliable performance, the Cobra by Stealth 315 is the perfect tool for any welding expert.
The Stealth series of welding machines adopts the latest Pulse Width Modulation (PWM) technology and the Insulated Gate Bipolar Transistor (IGBT) power modules. It uses switching frequencies in the 20KHz-50KHz range so as to replace the traditional line-frequency transformer type welding machines. Thus, machines are characterised with excellent dynamic response, portability, small size, lightweight, low energy consumption.
Features
- 3 in one welding machine
- MIG synergic
- Lift TIG DC
- MMA
- 5" LCD display screen
- MCU control system
- Phase loss protection
- Generator friendly (must have AVR)
- Manual wire button
- Gas check button
- 2T/4T wire feed latching
- Burn-back control
- Toolbox compartment
Technical Data
Power supply voltage (V) 400 3ph Power frequency (Hz) 50/60 MIG TIG MMA Effective current (A) 14.2 10.8 11.7 Rated input current (A) 22.5 17.0 18.5 Rated input current (KW) 15.6 11.8 12.8 Duty cycle (A) (40°C 10min) 40% @ 315A
60% @ 260A
100% @ 200A
40% @ 300A
60% @ 245A
100% @ 190A
40% @ 250A
60% @ 205A
100% @ 160A
Welding current range (A) 30-315 10-300 10-250 Welding voltage range (V) 15.5 - 29.8 10.4 - 22 20.5 - 30 Wire feeding speed (m/min) 1.5 - 18 - - No load voltage (V) 80 80 80 (11.9 VRD) Efficiency (%) 88.7 Protection class IP21S Cooling AF Weight (kg) 51.5 Dimensions (mm) 930 x 460 x 940 Warranty 5 years Supplied with M36-4 Stealth MIG torch, regulator and earth lead.
