- Description

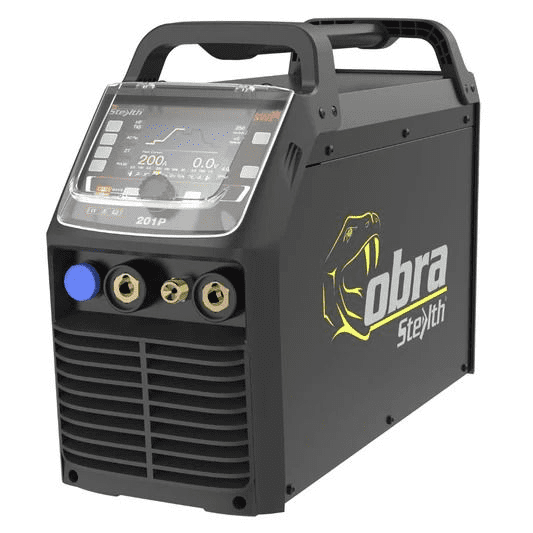

The Cobra By Stealth TIG 201P AC/DC LCD MV TIG welding machine provides an extensive welding current range:110V TIG AC from 5-160A, DC from 3-160A, 110V MMA from 10-130A, 230V AC TIG from 5-200A, 230V DC TIG from 3-200A, and 230V MMA from 10-200A, offering exceptional versatility for a wide range of welding tasks.
Experience a versatile and dependable welding machine with the Cobra by Stealth 201P AC/DC LCD MV TIG Welding Machine. It offers a wide range of input compatibility, with multi voltage capabilities of 90-275 and a power factor correction of 0.99. Advanced features such as AC/DC technology and adjustable pulse frequency make this machine stand out, while its 60% heavy duty cycle ensures efficient and consistent performance. User-friendly with easy arc striking and 3A welding at extra low current, it is also generator friendly. Plus, enjoy added peace of mind with its 5 year warranty.
The Cobra by Stealth TIG 201P LCD boasts an IP21S protection class, offering reliable performance with protection against vertical water drops and dust, ensuring durability in various environments.

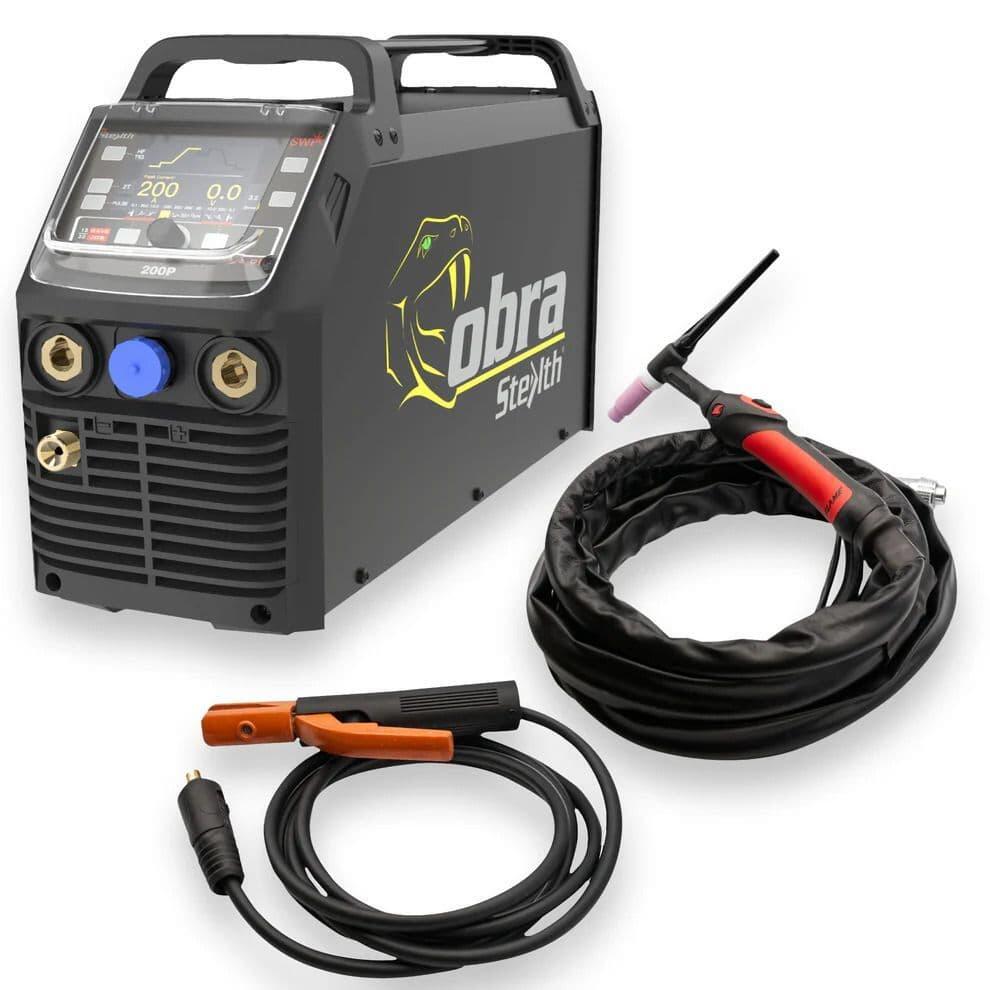

This machine comes complete with Accessory Kit No. 9827H (WP26-12SZ TIG torch, earth lead, gas hose and fittings)
Features
- Multi voltage

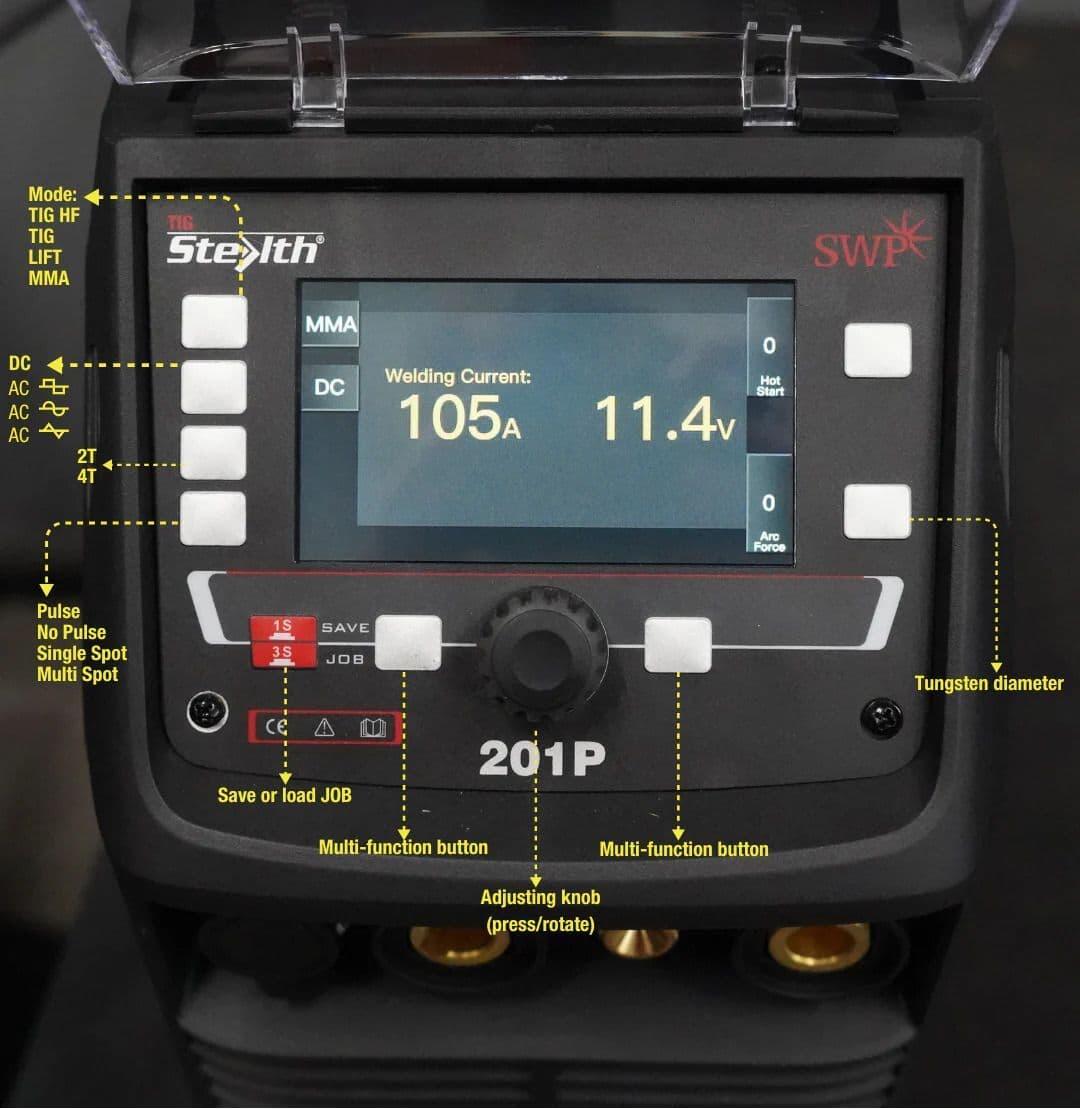

- Full digital control panel
- 0.5 - 200 pulse frequency
- Multi AC wave form choices
- Welds all forms of steels - including aluminium
- Power factor protection
- Job memory
- Generator friendly
- High performance on ultrathin surfaces
- 5 Year guarantee
- Great value for an industrial quality machine

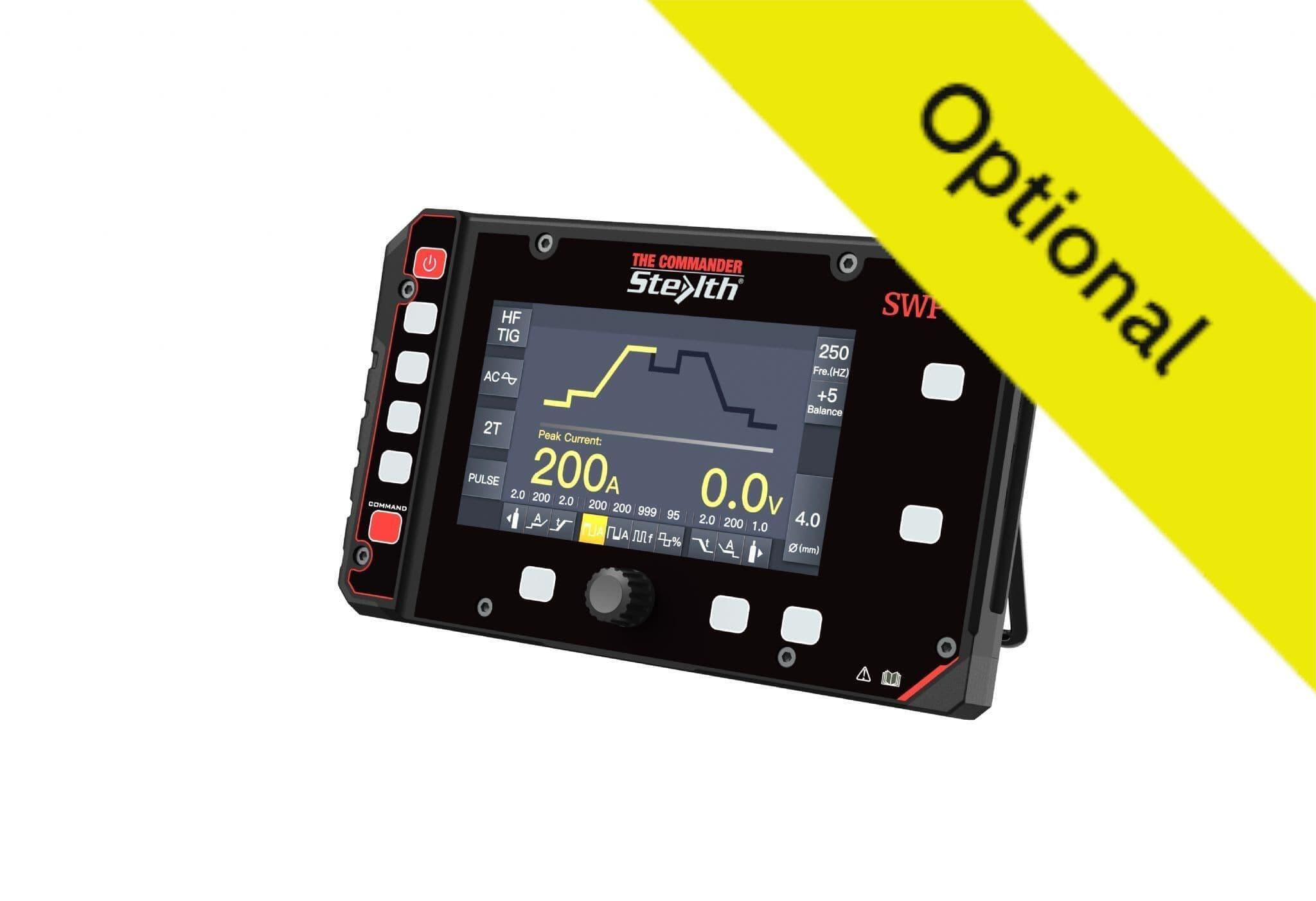

Also shown is the optional Cobra Commander, which is a full colour wireless remote control with a 20 meter range, providing the operator with full control over TIG power sources.
Technical
Input supply voltage 90-275 Power frequency (Hz) 50/60 Input voltage (V) 1-110
1-230
Effective current (A) 110V TIG AC:24.3 | 110V TIG DC :25.6
110V MMA AC:28.4| 110V MMA DC:30.2
230V TIG AC:15.6 | 230V TIG DC:16.1
230V MMA AC:17 | 230V MMA DC: 17.9
Rated input current 110V TIG AC:31.4 | 110V TIG DC:33
110V MMA AC:36.6
110V MMA DC: 39
230V TIG AC: 20.1
230V TIG DC: 20.8
230V MMA AC: 28.7
230V MMA DC: 30.2
Rated input power (KW) 110V TIG AC:3.5
110V TIG DC:3.6
110V MMA AC:4
110V MMA DC:4.3
230V TIG AC: 4.6
230V TIG DC: 4.8
230V MMA AC: 6.6
230V MMA DC: 6.9
Duty cycle 110V TIG (A) (40°C to 10 min) 60% @ 160A
100% @ 125A
Duty cycle 110V MMA (A) (40° to 10 min) 30% @ 130A
100% @ 100A
Duty cycle 230V TIG (A) (40°C to 10 min) 40% @ 200A
100% @ 155A
Duty cycle 230V MMA (A) (40°C to 10 min) 35% @ 200A
60% @ 155A
100% @ 120A
Welding current range (A) 110V TIG AC:5-160| 110V TIG DC:3-160
110V MMA:10-130
230V TIG AC:5-200|
230V TIG DC:3-200
230V MMA:10-200
No load voltage 110V TIG:74
110V MMA:11.5(VRD)
230V TIG:73
230V MMA:11.5 (VRD)
Efficiency (%) 86 Power factor 0.99 Protection class IP21S Cooling AF Net weight (kg) 13.2 Dimensions (mm) 580 x 160 x 330 Standards EN60974-1:2021(LVD)
EN60974-10:2021(EMC) 2019/125/EC(EER) Don't forget to check out our welding gloves: https://migtigarc.co.uk/welding-gloves--gauntlets-81-c.asp
Related products
Argon Gas Regulator
Argon Gas and Argon mix regulator, single stage with contents gauge pre-set 2 Bar.Max outlet pressure 3.0 Bar.
£28.99 exc. VAT

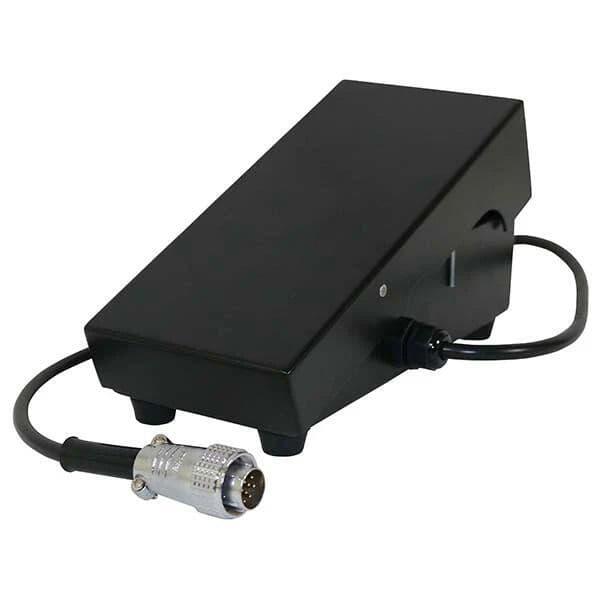

Stealth Digi TIG 200AC/DC + Cobra 201P Foot Pedal
