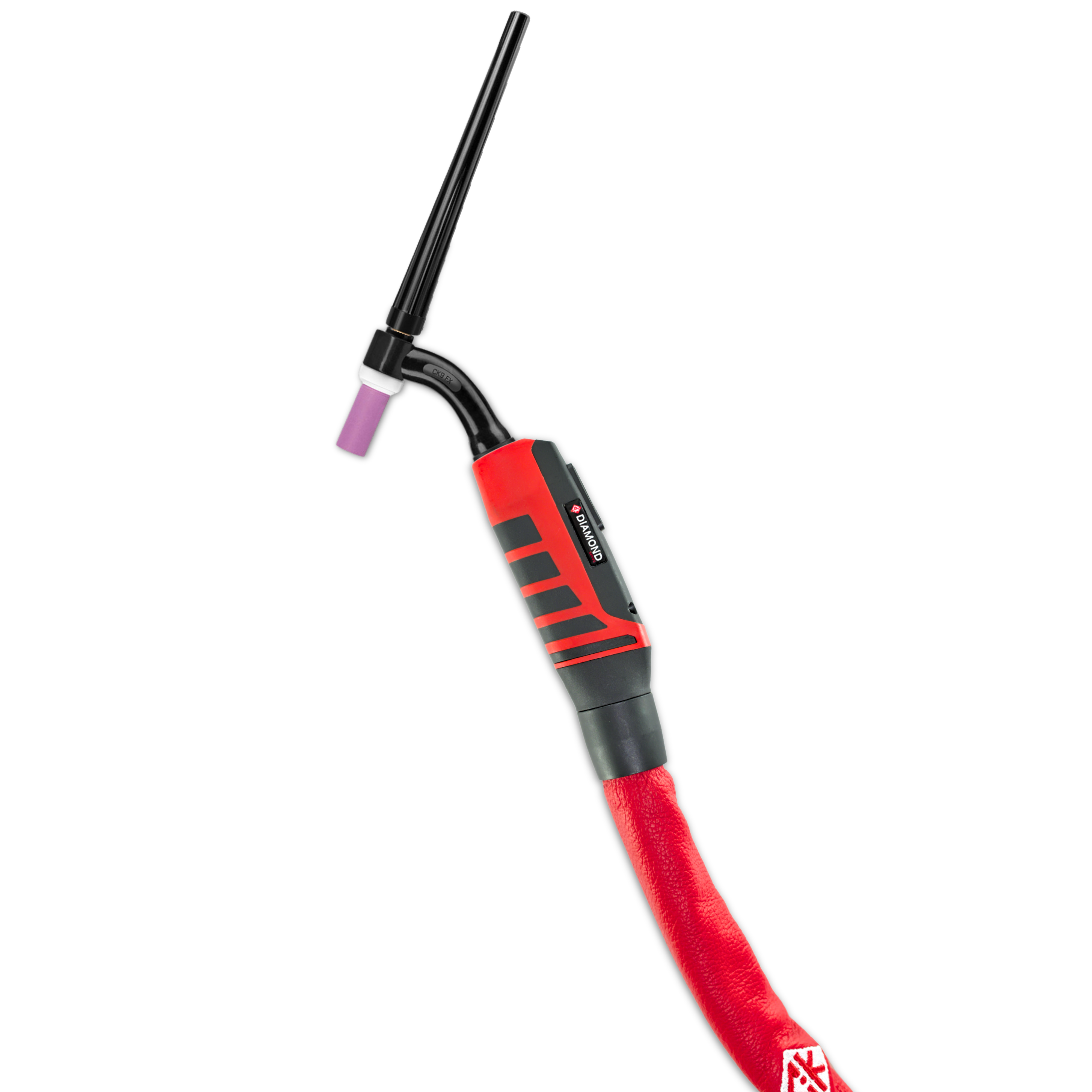

CK Diamond EDS9 TIG Torch – 125 Amp Air-Cooled TIG Torch

The CK Worldwide Diamond EDS9 TIG torch is a lightweight, professional 125 amp air-cooled TIG torch designed for precision TIG welding where excellent torch control, flexibility and operator comfort are essential. As the smallest air-cooled model in the CK Diamond Series, the EDS9 is particularly well suited to thin materials, precision fabrication, intricate TIG welding and tight-access joints.

Developed by CK Worldwide in collaboration with EWS for the European market, the Diamond EDS9 combines an ergonomic torch handle, highly flexible SuperFlex® cable, leather hose protection and a choice of rigid or flexible torch head configurations. It is designed to provide smooth, consistent TIG welding performance while reducing cable drag and hand fatigue during prolonged welding.

125 Amp Air-Cooled TIG Torch

The CK Diamond EDS9 is rated at 125 amps, making it an excellent choice for lower to medium-current TIG welding applications where a compact and manoeuvrable torch is preferred.

Its air-cooled construction eliminates the need for a separate water cooler, making the EDS9 a practical choice for:

• Thin stainless steel TIG welding
• Titanium TIG welding
• Mild steel fabrication
• Aluminium TIG welding within the torch's rated capacity
• Tube and pipe welding
• Exhaust fabrication
• Sheet metal fabrication
• Precision engineering
• Motorsport and race fabrication
• Welding in restricted-access areas

The compact torch design makes it particularly useful where precise control of the tungsten electrode and weld pool is required.

Ergonomic CK Diamond Series Handle

The EDS9 features an ergonomic Diamond Series handle designed for comfortable grip and improved control. An integrated on/off switch is positioned for convenient thumb operation, helping reduce hand movement and fatigue during repetitive or extended TIG welding.

The Diamond Series handle is available in short and long configurations, allowing the torch to be selected according to the welder's preferred grip and application.

SuperFlex® TIG Torch Cable

One of the key advantages of the CK Diamond EDS9 is its SuperFlex® cable assembly. The highly flexible cable is designed to move easily with the operator, reducing cable drag and making it easier to position the torch accurately around the workpiece.

This is particularly beneficial when TIG welding in awkward positions or when carrying out detailed work where precise torch movement is critical.

The EDS9 can be supplied with 4 metre or 8 metre cable options, providing flexibility for different workshop and fabrication requirements.

Flexible TIG Torch Head

The CK Diamond EDS9 is supplied with a  flexible torch head.

A flexible TIG torch head allows the torch angle to be adjusted to suit the joint and working position. This can be particularly useful when welding:

• Tubes and pipes
• Complex fabrication
• Internal corners
• Tight-access joints
• Components with difficult approach angles

Leather Hose Cover

The Diamond EDS9 is supplied with a leather hose cover, providing protection for the cable and hose assembly against abrasion while retaining the flexibility required for accurate TIG torch movement.

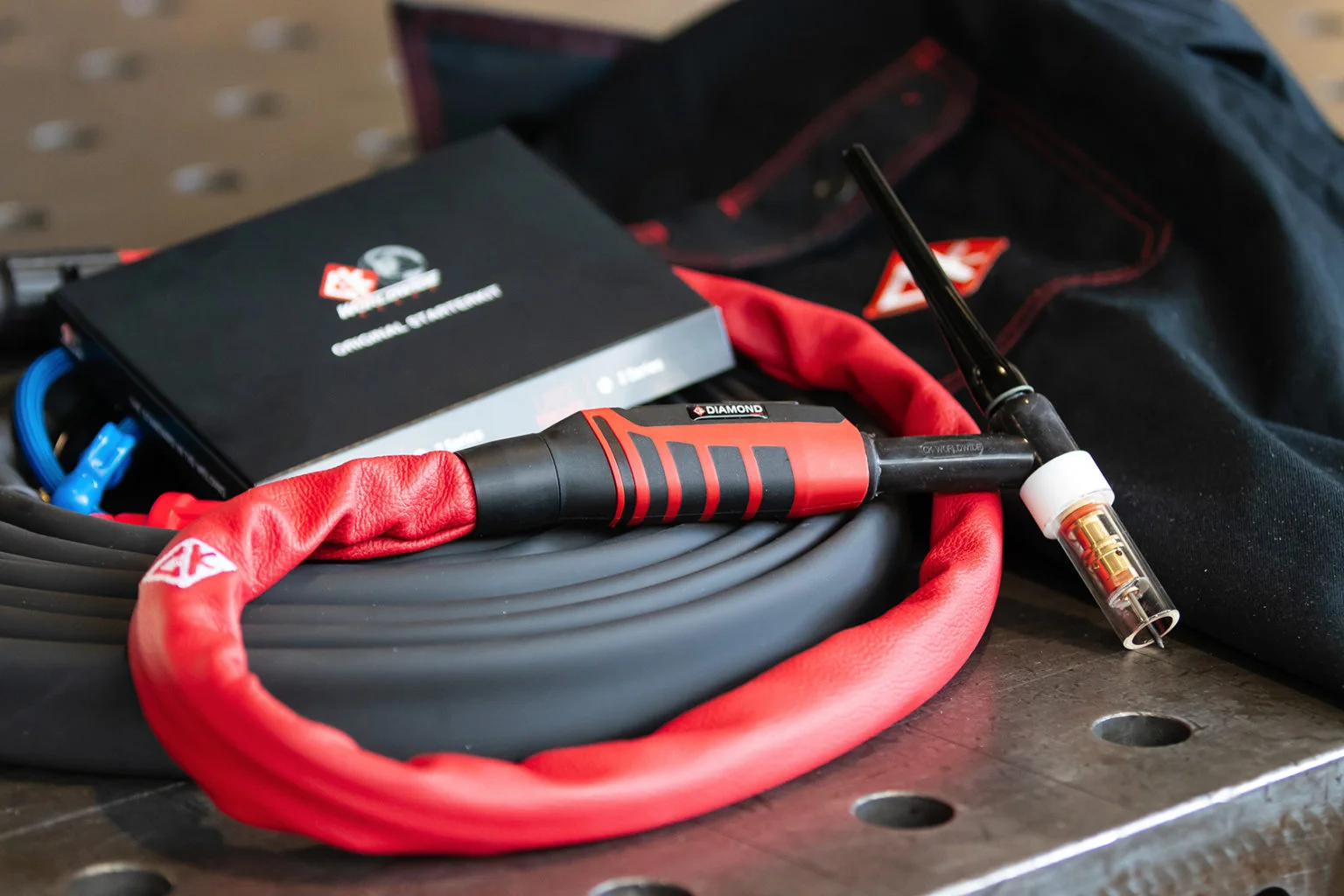

CK Starter Kit Included

The CK Diamond EDS9 includes a CK Starter Kit containing TIG consumables, helping provide the essential components required to get the torch ready for welding. Depending on the configuration, the kit includes items such as collets, gas lenses, cups and tungsten electrodes.

Using correctly matched TIG consumables helps maintain effective shielding gas coverage, stable arc performance and consistent weld quality.

Ideal for Precision TIG Welding

The compact size and lightweight construction of the EDS9 make it particularly suitable for applications where fine torch control is more important than maximum amperage.

Typical applications include:

• Precision TIG welding
• Thin stainless steel
• Titanium fabrication
• Tube welding
• Exhaust manufacture
• Motorsport fabrication
• Aerospace fabrication
• Brackets and sheet metal
• Fine engineering work
• Walk-the-cup TIG welding

CK Diamond EDS9 Technical Features

• Model: CK Worldwide Diamond EDS9
• Torch type: TIG welding torch
• Cooling: Air cooled
• Rated output: 125 amps
• Head options: Flexible or rigid
• Handle options: Short or long
• Cable: SuperFlex®
• Cable lengths: 4m or 8m options
• Hose protection: Italian leather cover
• Integrated torch switch: Yes
• Consumables: CK Starter Kit included
• Certification: CE EN 60 974-7

Why Choose the CK Diamond EDS9 TIG Torch ?

The CK Diamond EDS9 is an excellent choice for professional TIG welders who require a compact, lightweight and highly manoeuvrable torch. Its 125 amp air-cooled design is particularly well suited to precision welding, while the ergonomic handle and SuperFlex® cable provide excellent control and comfort.

For welders working with thin stainless steel, titanium, tube, sheet metal and intricate fabrication, the EDS9 offers a combination of precision, flexibility, durability and operator comfort that makes it a high-quality professional TIG torch.

Please ensure the torch configuration and connections are compatible with your TIG welding machine before ordering.
