- Description

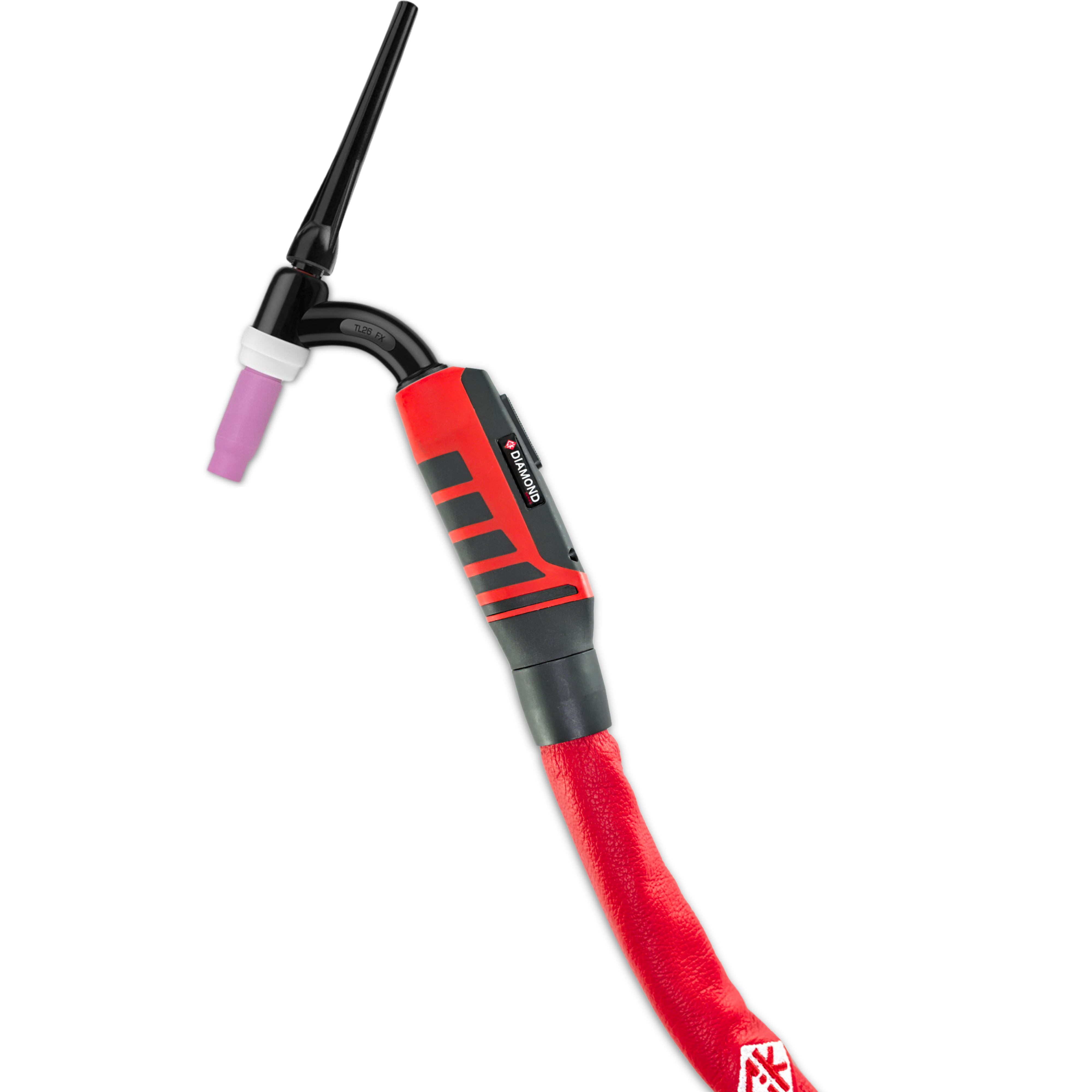

CK Diamond EDS26 TIG Torch – 200 Amp Air-Cooled TIG Torch
The CK Worldwide Diamond EDS26 TIG torch is a professional 200 amp air-cooled TIG torch designed for demanding welding applications where high output, durability and precise torch control are essential. Part of the CK Worldwide European Diamond Series, the EDS26 is designed for professional fabricators and welders working with heavier materials, extended welds and demanding fabrication applications.
The EDS26 combines a robust air-cooled torch body with an ergonomic Diamond Series handle, SuperFlex® cable assembly and durable Italian leather cable cover. Available with flexible or rigid torch head options and short or long handles, the torch can be configured to suit different welding techniques and operator preferences.
200 Amp Air-Cooled TIG Torch
Rated at 200 amps, the CK Diamond EDS26 provides substantially greater welding capacity than the smaller EDS9 and EDS17 Diamond Series torches. It is designed for higher-output TIG welding while retaining the convenience of an air-cooled torch.
The EDS26 is particularly suitable for:
- Heavy fabrication
- Structural TIG welding
- Stainless steel fabrication
- Mild steel TIG welding
- Aluminium welding within the torch's rated application
- Thick material welding
- Engineering workshops
- Production TIG welding
- Long welding runs
- Maintenance and repair applications
Air-Cooled Design
The air-cooled construction makes the EDS26 a practical alternative where a high-output TIG torch is required without installing a separate water-cooling system.
Its 200 amp rating makes it well suited to applications requiring greater current capacity while maintaining the simplicity and portability of an air-cooled TIG setup.
For applications involving exceptionally high amperage or very long continuous welding cycles, a water-cooled TIG torch may be more appropriate. Always operate the torch within the manufacturer's specified ratings and application conditions.
SuperFlex® Cable for Improved Torch Control
The EDS26 incorporates CK Worldwide's SuperFlex® cable system, designed to remain highly flexible and easy to handle. The flexible cable helps reduce drag and resistance as the welder moves around the workpiece, improving torch manoeuvrability during detailed welding and longer weld runs.
SuperFlex® cable assemblies are available in 4 metre and 8 metre configurations, allowing the torch to be selected according to the welding environment and required working range.
Ergonomic Diamond Series Handle
The EDS26 features a balanced Diamond Series ergonomic handle designed for comfortable operation during demanding welding sessions. The handle incorporates a low-profile integrated on/off switch and is available in short and long versions.
A well-designed TIG torch handle can provide better control over torch angle and travel movement while helping reduce hand fatigue during extended fabrication work.

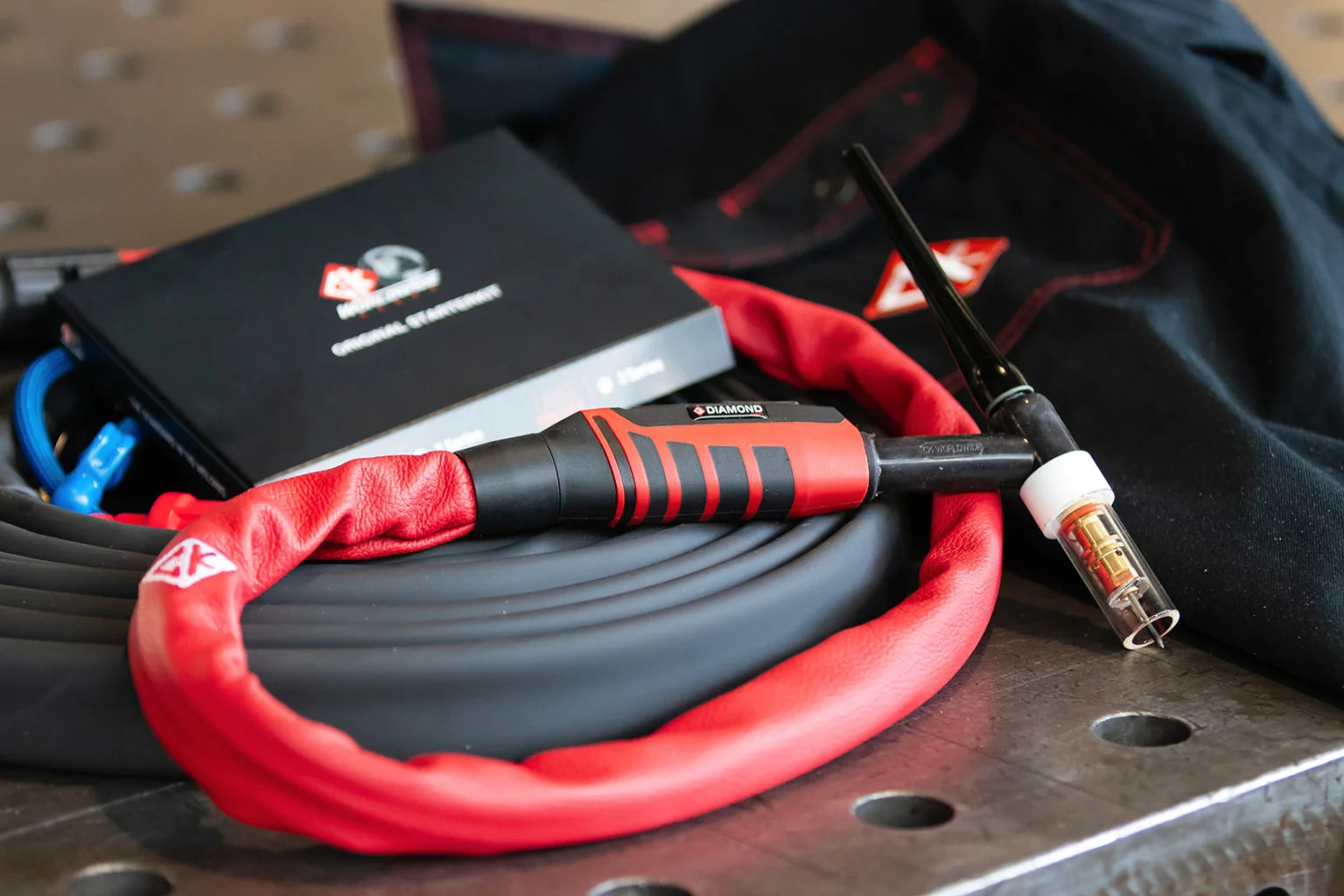

CK Starter Kit Included
Each Diamond EDS26 is supplied with a CK Starter Kit, containing essential TIG torch consumables such as collets, cups, tungsten and gas lens components. This provides a convenient starting setup and ensures that the torch is supplied with compatible CK consumables.
Replacement consumables are available to keep the torch operating efficiently and maintain good shielding gas coverage and arc performance.
The CK Diamond EDS26 is particularly suited to applications where a combination of high welding current, air-cooled operation and good torch manoeuvrability is required.
CK Diamond EDS26 Technical Specifications
- Model: CK Worldwide Diamond EDS26
- Torch type: TIG welding torch
- Cooling: Air cooled
- Rated output: 200 amps
- Head options: Flexible or rigid
- Handle options: Short or long
- Cable: SuperFlex®
- Cable lengths: 4m or 8m options
- Hose protection: Italian leather cover
- Integrated switch: On/off switch
- Consumables: CK Starter Kit included
- Standard: CE EN 60 974-7
Why Choose the CK Diamond EDS26 TIG Torch ?
The CK Diamond EDS26 is an excellent choice for professional welders who require a high-output 200 amp TIG torch without the additional equipment associated with water cooling. Its robust construction, ergonomic handle, flexible SuperFlex® cable and flexible or rigid head options provide an excellent combination of power, durability, comfort and torch control.
For heavy fabrication, structural TIG welding, thick stainless and mild steel, production work and extended welding applications, the EDS26 provides the high-performance characteristics expected from a professional CK Worldwide TIG torch.
Always check the torch connection, configuration and welding machine compatibility before ordering, and operate the torch within the manufacturer's specified ratings.
