4043 Aluminium TIG Rods

4043 Aluminium TIG Rods

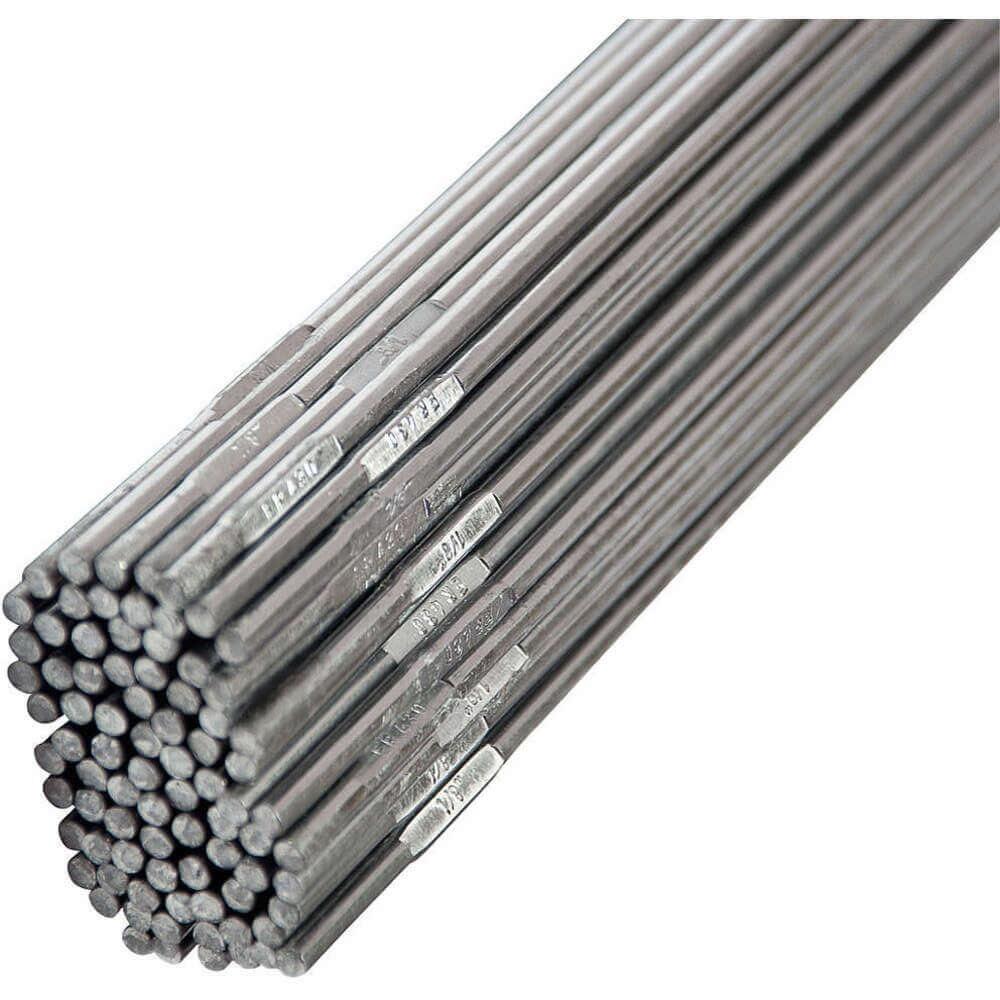

4043 aluminium TIG rods (classified as ER4043) are silicon-alloyed filler metals designed for TIG (GTAW) welding of aluminium-silicon alloys and general-purpose aluminium fabrication. Containing approximately 5% silicon, 4043 rods are widely used due to their excellent weldability, low cracking tendency, and smooth weld appearance. Supplied in 2.5Kg packs.

Why Use 4043 Aluminium TIG Rods?

Excellent Weldability

The addition of silicon lowers the melting point of the filler metal and improves fluidity in the weld pool. This results in:

• Smooth, stable arc characteristics

• Easy weld pool control

• Good wetting action and fusion

• Reduced risk of lack of fusion defects

These properties make 4043 rods particularly suitable for both beginners and experienced welders, especially when welding thin materials or intricate components.

Reduced Risk of Cracking

4043 TIG rods are highly resistant to solidification (hot) cracking, which is a common issue when welding aluminium. The silicon content helps minimise shrinkage stresses during cooling, making them ideal for:

• Cast aluminium components

• Complex joints with varying thickness

• Applications where crack prevention is critical

Ideal for Cast Aluminium and 6xxx Series Alloys

4043 rods are commonly used for welding:

• Cast aluminium alloys (e.g. A356, A319)

• 6xxx series alloys (e.g. 6061, 6063)

They are often the preferred choice when welding castings due to their ability to accommodate impurities and produce sound welds.

Lower Melting Temperature

Compared to fillers like 5356, 4043 rods have a lower melting range, which allows for:

• Reduced heat input

• Better control on thin materials

• Lower distortion in welded components

This is particularly beneficial in precision fabrication and repair work.

Smooth Weld Appearance

4043 produces a bright, smooth, and aesthetically clean weld bead with minimal spatter. This makes it suitable for applications where appearance is important, even without post-weld finishing.

Good General Corrosion Resistance

While not as strong or corrosion-resistant as 5356 in marine environments, 4043 provides adequate resistance for:

• General atmospheric exposure

• Automotive and structural components

• Indoor and non-aggressive environments

Limitations to Consider

• Lower tensile strength than 5356

• Poorer colour match after anodising (weld appears darker)

• Not ideal for high-strength structural or marine applications
